Strongest Drawer Cabinet — Concealed Aluminum Extrusion Frame (Build Video)
Share
What this build is

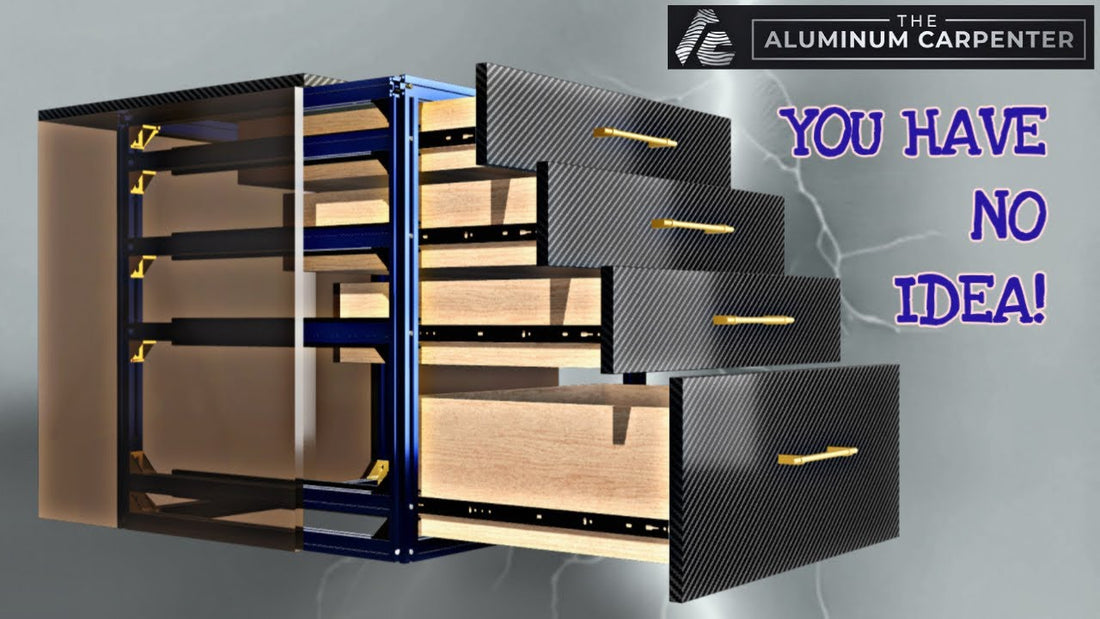

A drawer cabinet built to carry a serious load — a large 3D printer on top was the design brief — without looking like industrial equipment. The strength comes from a 3030 aluminum extrusion frame reinforced with double joints; the looks come from wood panels that wrap the frame completely. From the outside it reads as furniture. Open a drawer and the frame tells the real story.
What the video covers
- Building the reinforced 3030 extrusion frame with double-joint corners
- A method for mounting drawer slides directly to extrusion — no wooden carcass needed
- Wrapping the frame in wood panels so the aluminum stays concealed
- Why this is Material Fusion: aluminum for strength, wood for finish, hardware chosen for each job
Key details
- Frame: 3030 series aluminum extrusion, double-jointed
- Size: 717 × 647 × 788 mm
- Parts in the model: 565, each drawn and labelled
Build it yourself
The complete plans — material list, product links, 3D model (STEP & Shapr3D) and drilling diagrams — are available as a digital download:
Strongest Drawer Cabinet plans (Download) →
Jigs used in this build
- 3030 Freehand Drilling Jig V2 (M5 and M8)
- 3030 15mm Offset Drilling Jig V2
- 3030 Perpendicular Alignment Jig V2 (60mm and 80mm)
More aluminum extrusion furniture: Domestic Aluminum Extrusion Furniture · All designs
