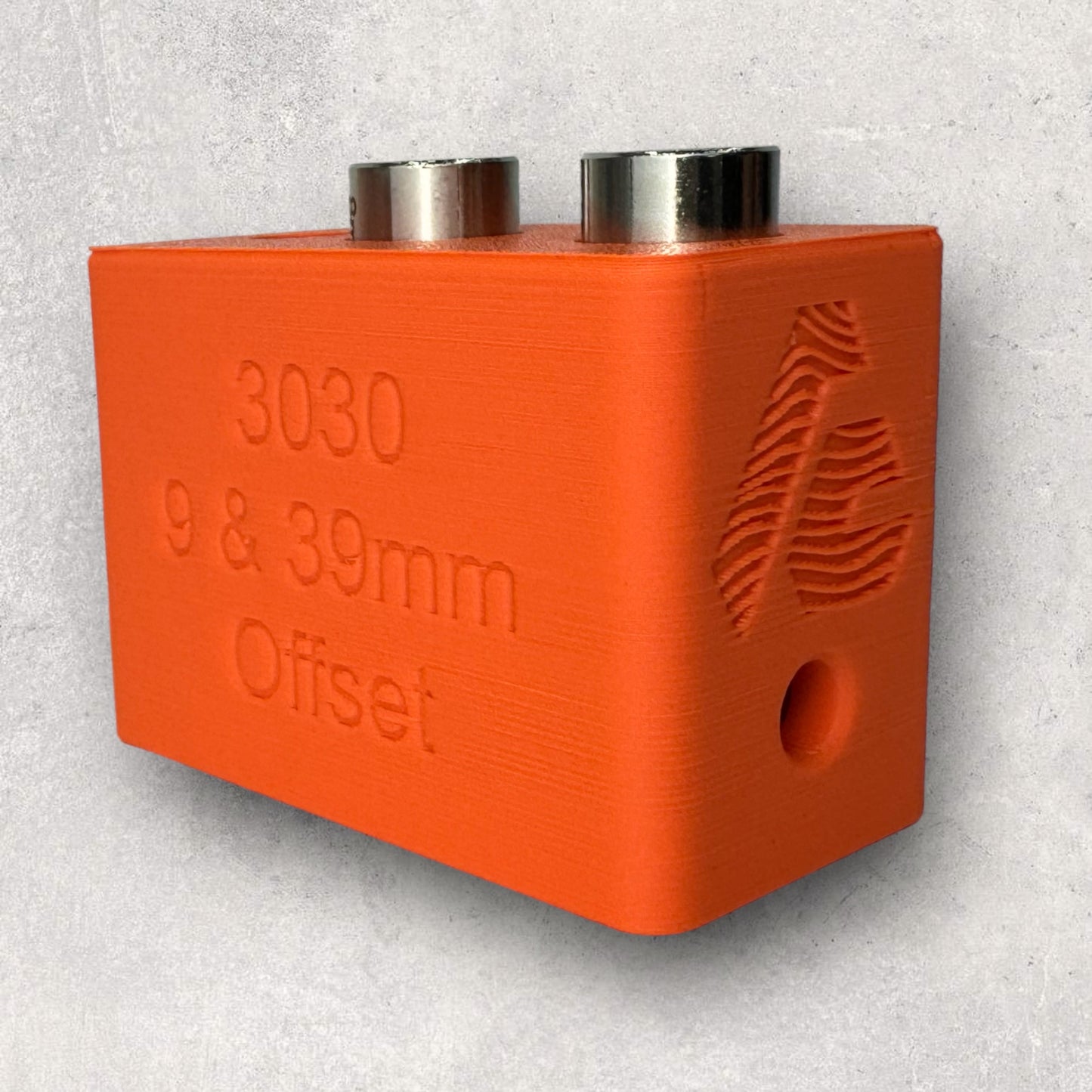

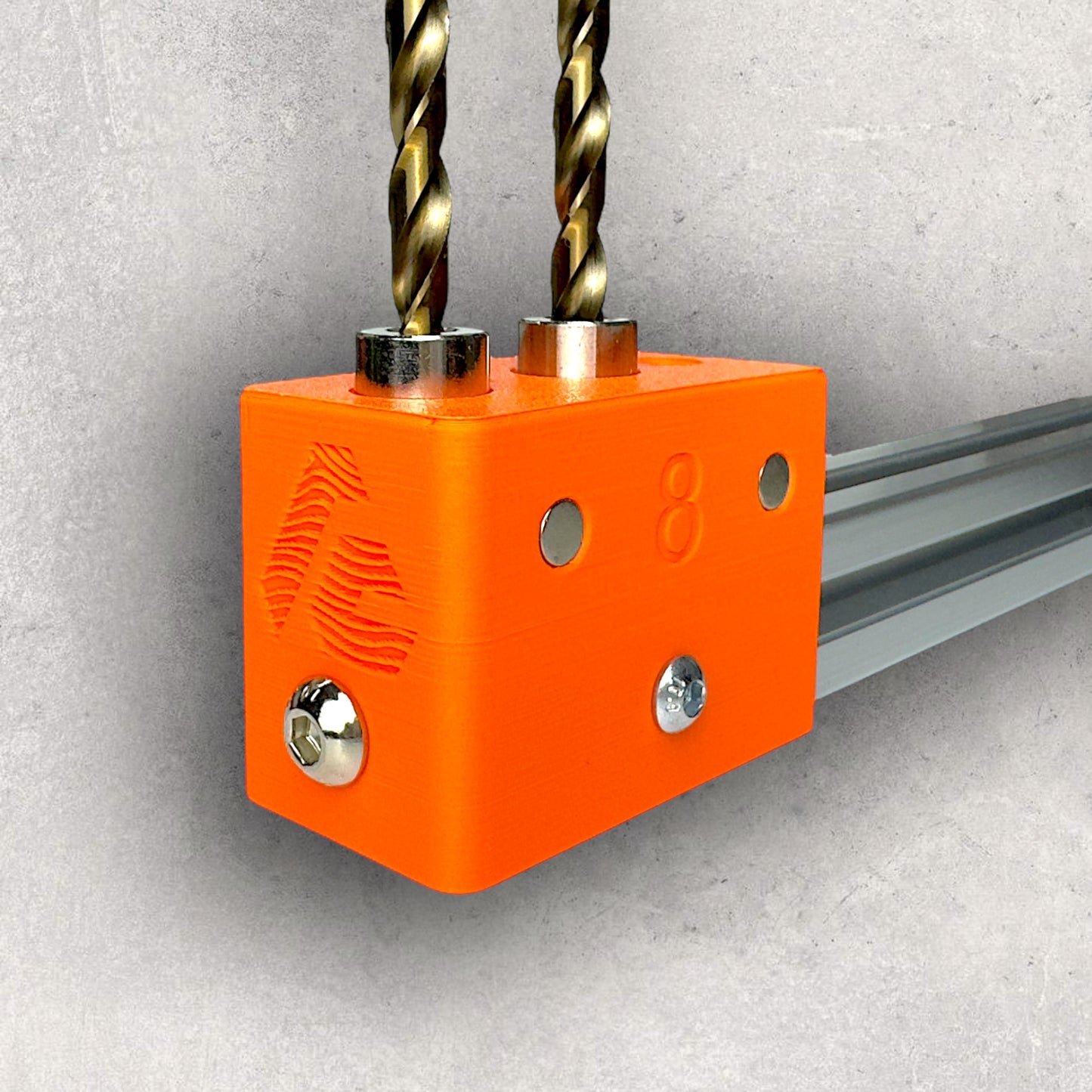

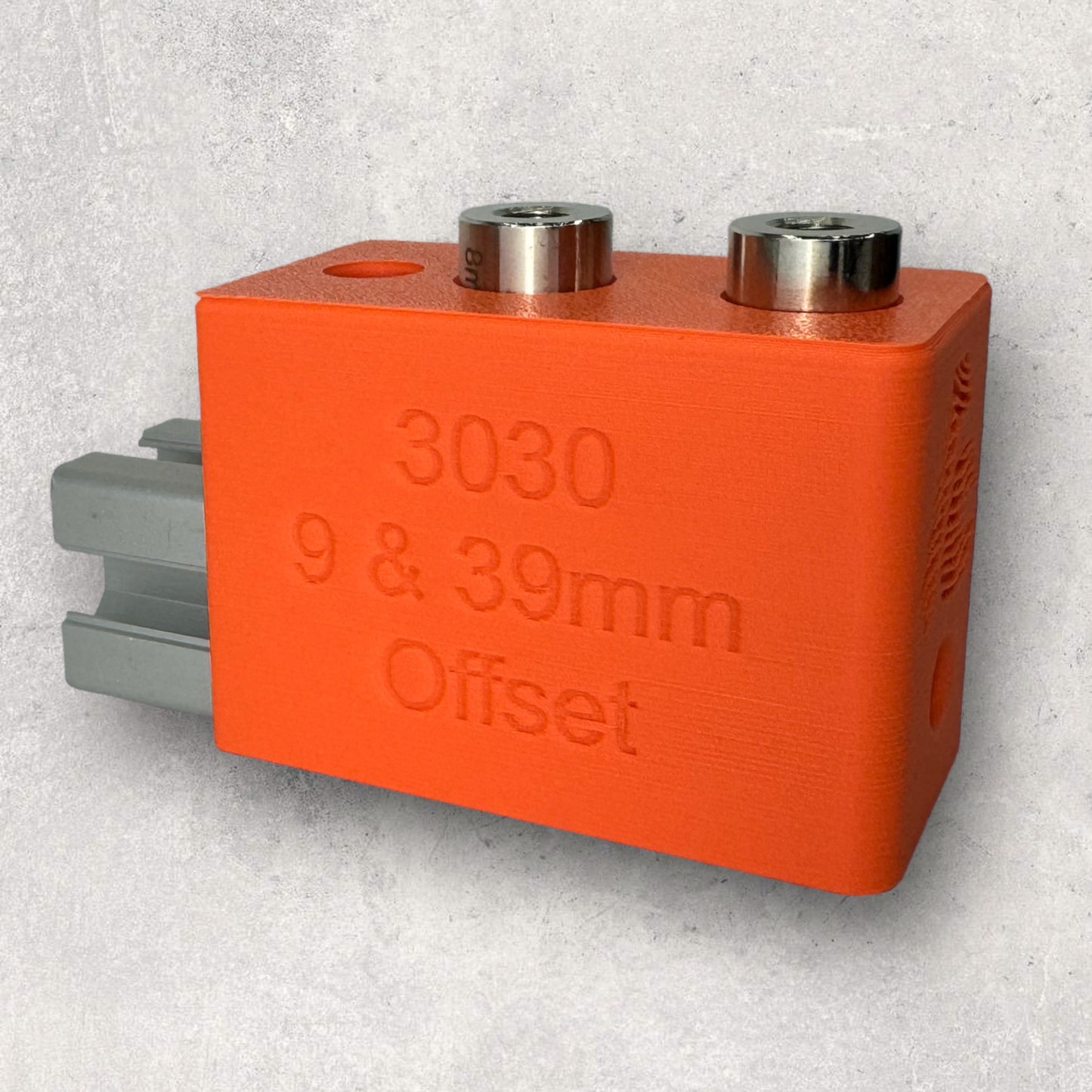

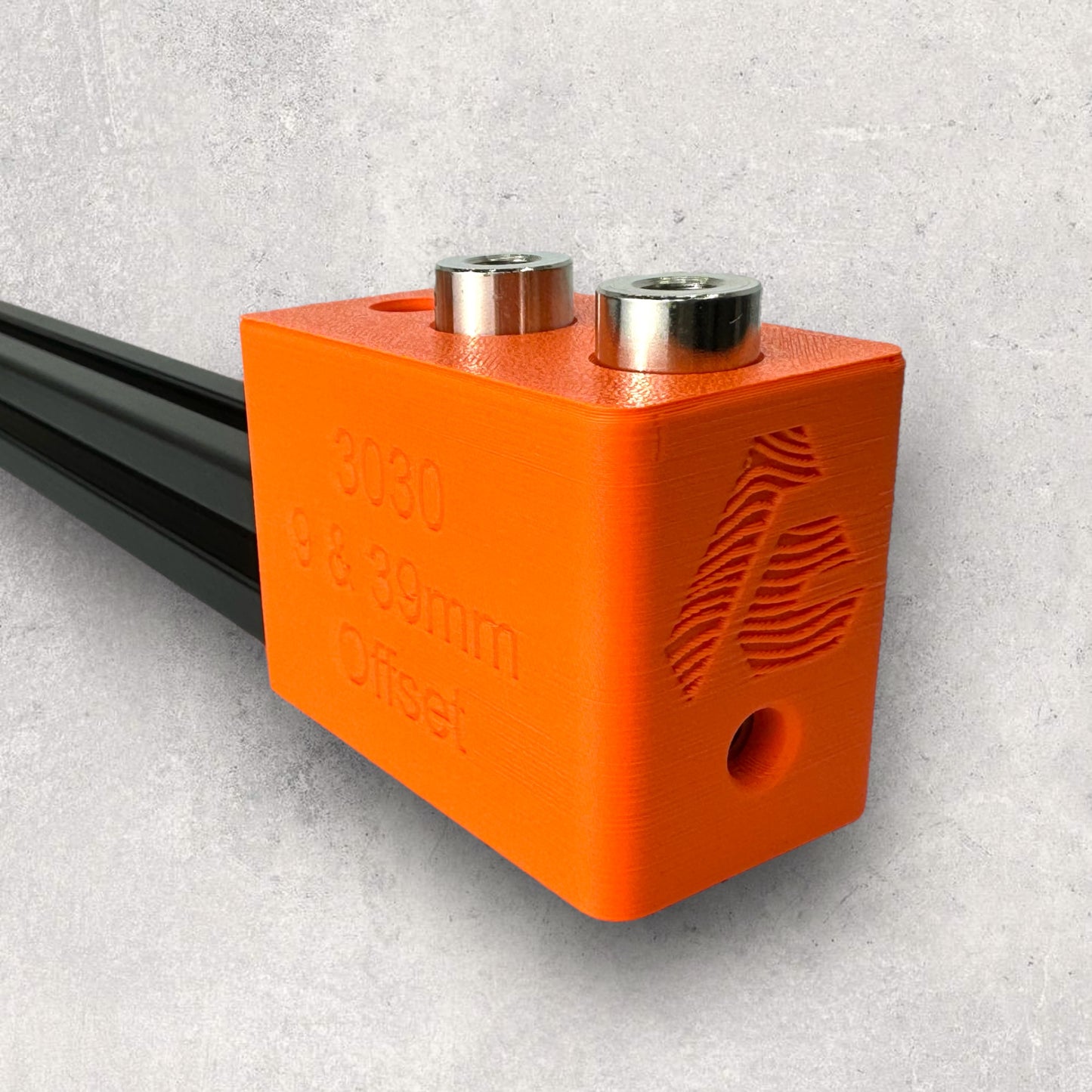

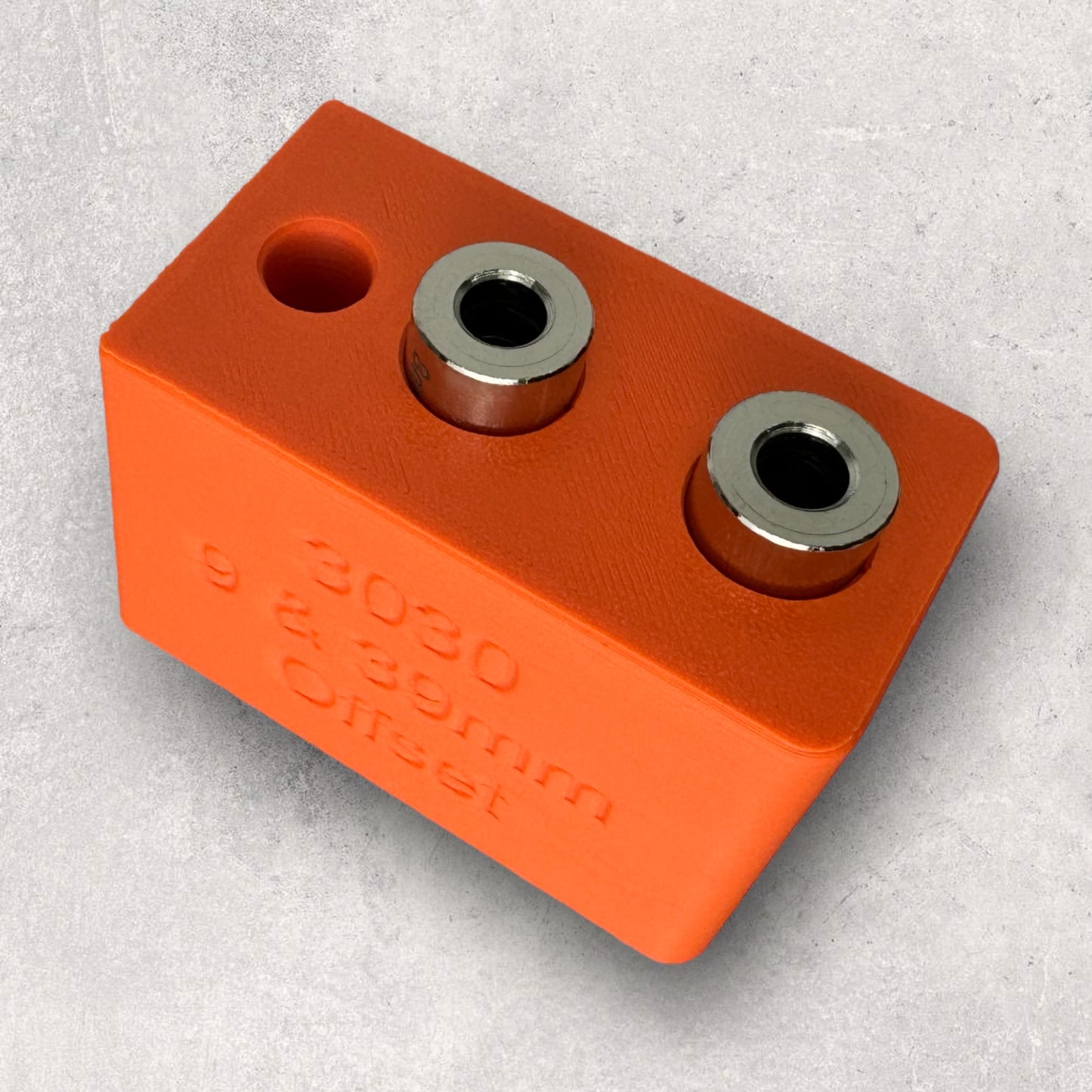

This drilling jig enables you to precisely drill 2 holes (M8) located 9mm & 39mm from the edge of the extrusion, facilitating a 'Blind Joint.'
Such joints reduce the reliance on external brackets, resulting in more aesthetically pleasing joinery.

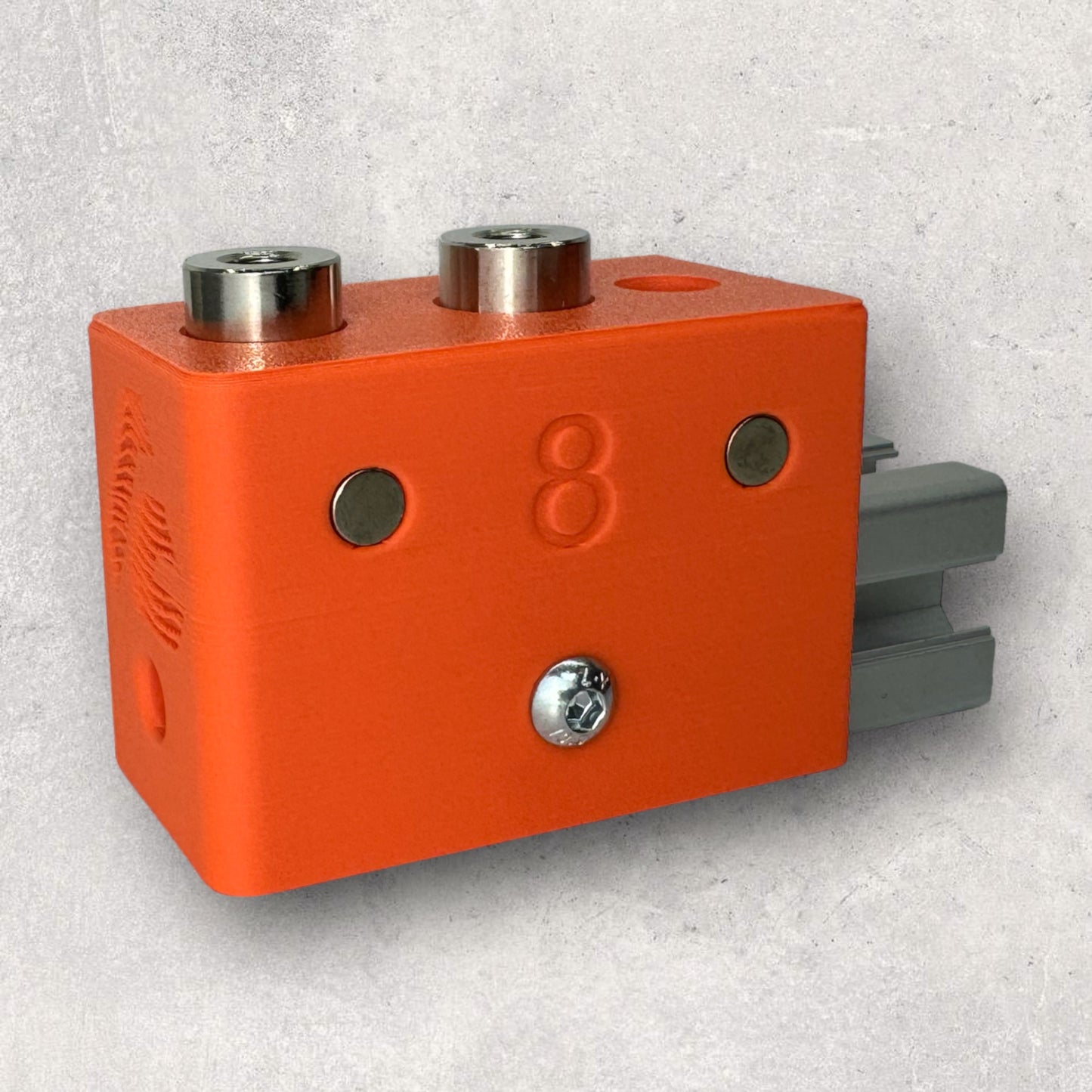

Equipped with 2 magnets, this attachment easily adheres to any magnetic surface, providing an organized storage solution.

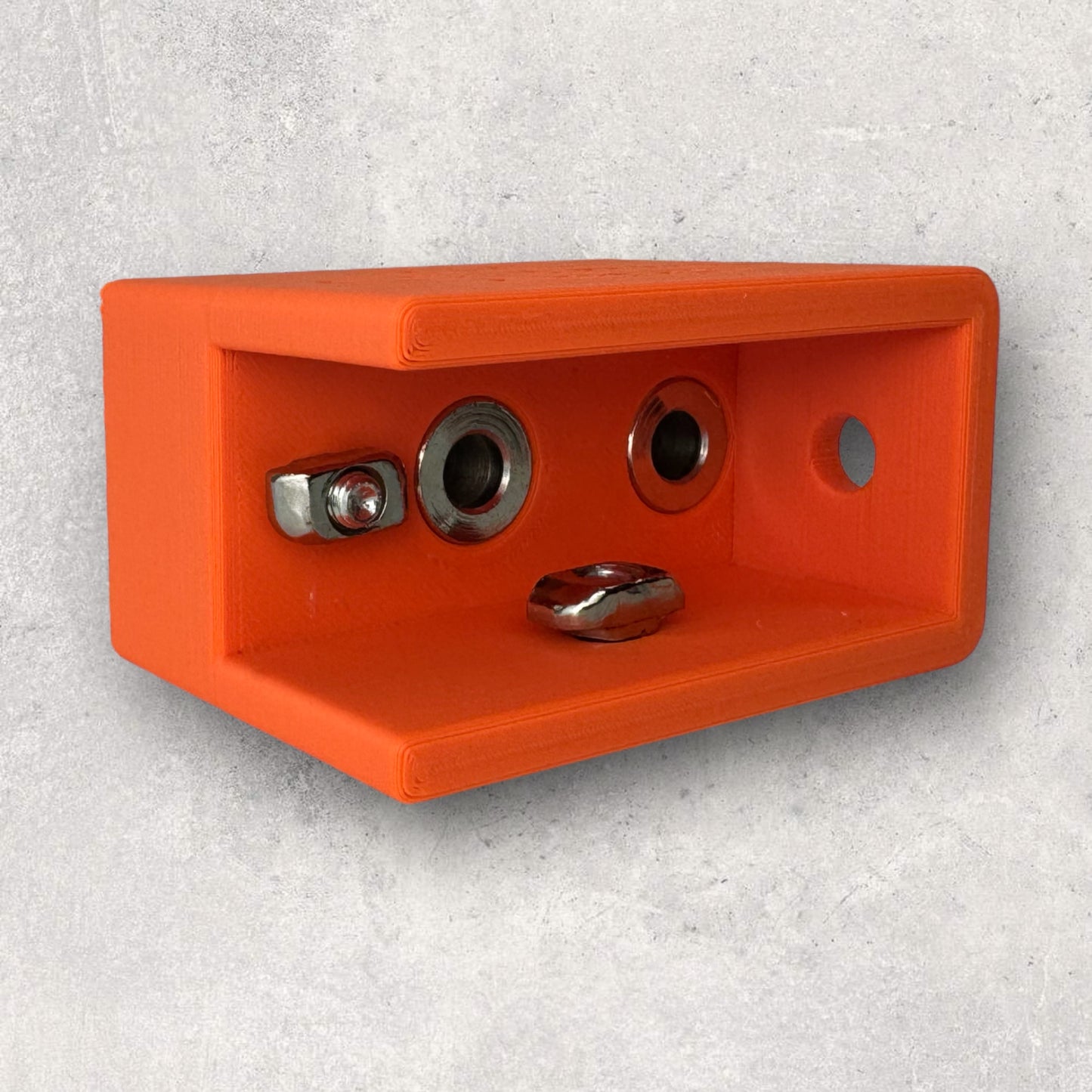

This is a high quality 3d printed precision 8020 aluminum extrusion drilling jig designed and produced by 'The Aluminum Carpenter' to work with all 30 series aluminum extrusion. Additionally, all necessary bolts and nuts are included, allowing for immediate use straight out of the box.
With this precision drilling jig, you can consistently achieve accurate hole placements without the need for additional tools.
All our Precision Jigs come with Free International Shipping.
Orders will be printed, assembled, and packed directly from our Singapore office. Global shipping typically takes 8 to 18 business days, as per the estimates provided by our local postal service.
This is Version 1 of the jig, which will be discontinued once sold out. Please proceed to the improved Version 2 of the jig.
