2020 Drill Guide System — Repeatable Blind-Joint Holes for 20 Series Extrusion (Video)

What this system does

The Drill Guide System lets you mount several jigs onto a length of 3030 aluminum extrusion to make repeatable, accurate drilled holes in 20 series extrusion for blind joints. You supply the 3030 rail from your local supplier — buy it longer than your longest workpiece — and the system handles the positioning.

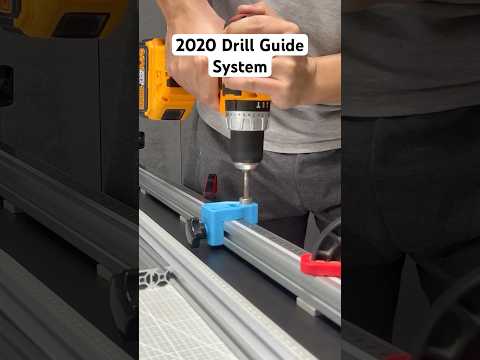

What the video shows

• The jigs mounted along the 3030 rail
• Sliding a 2020 workpiece in and drilling
• Repeating on the next piece with the same result

Get the system

2020 Drill Guide System V1 →
