2020 Drill Guide System V1

2020 Drill Guide System V1

Regular price $43.00 SGD
Regular price Sale price $43.00 SGD
Sale Sold out
Tax included. Shipping calculated at checkout.

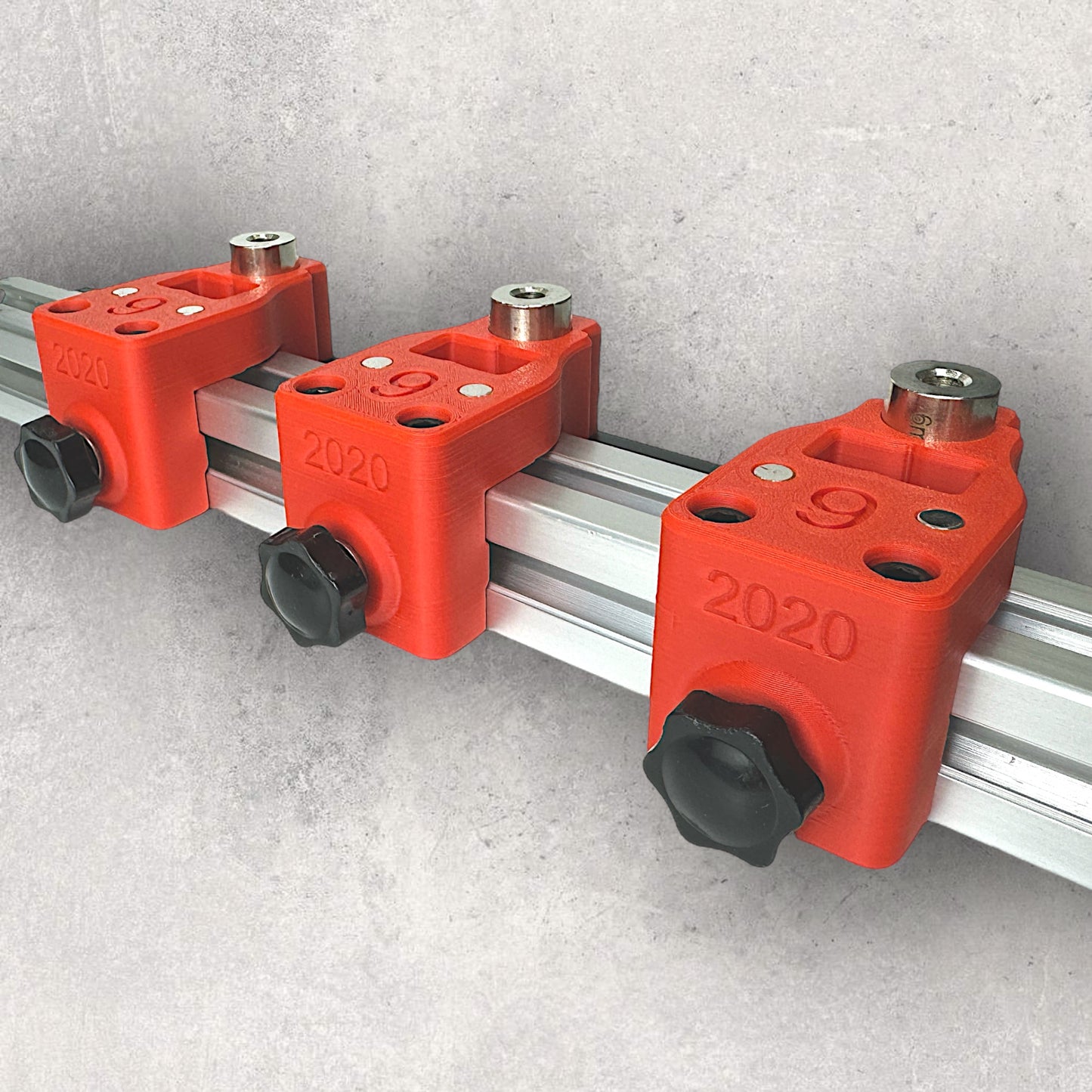

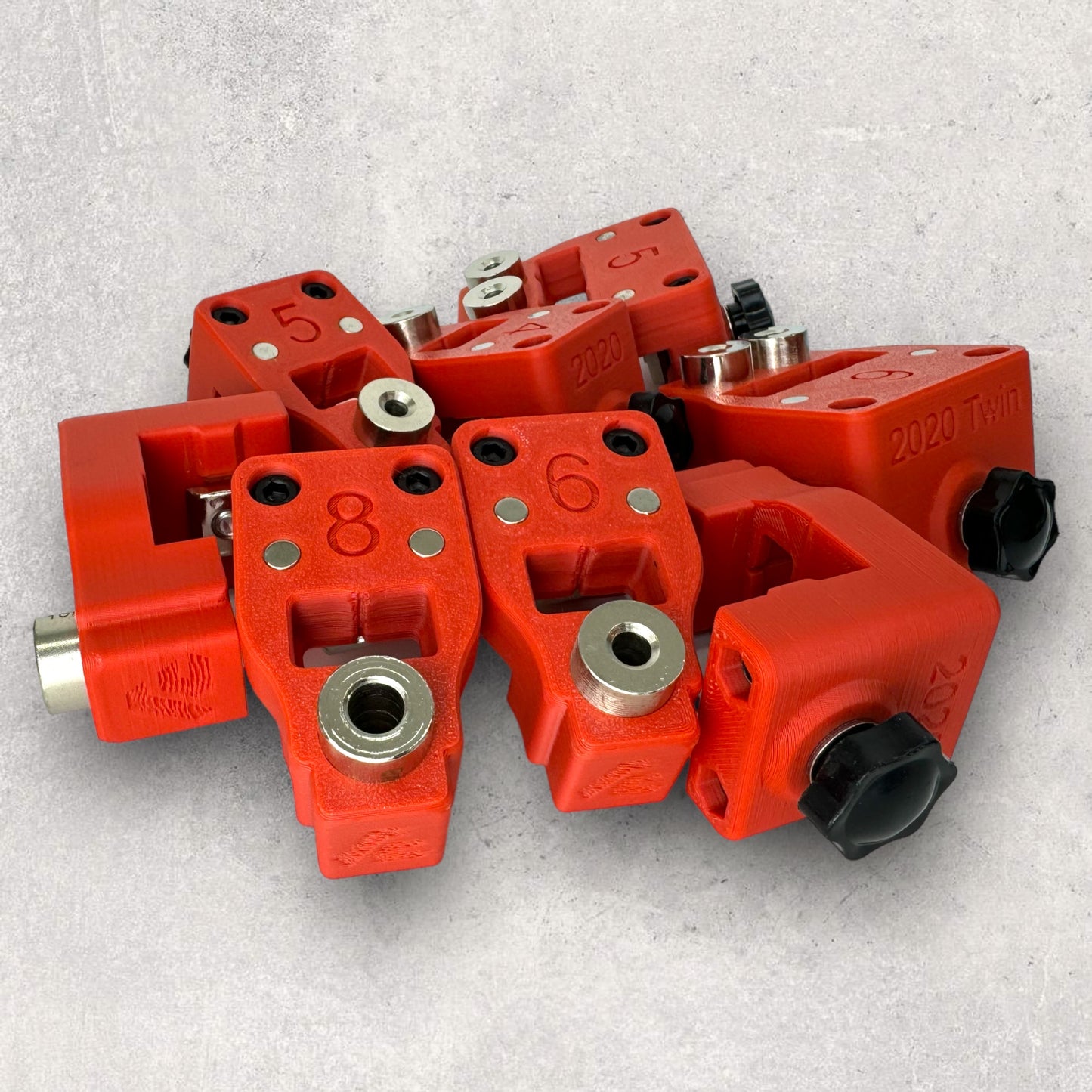

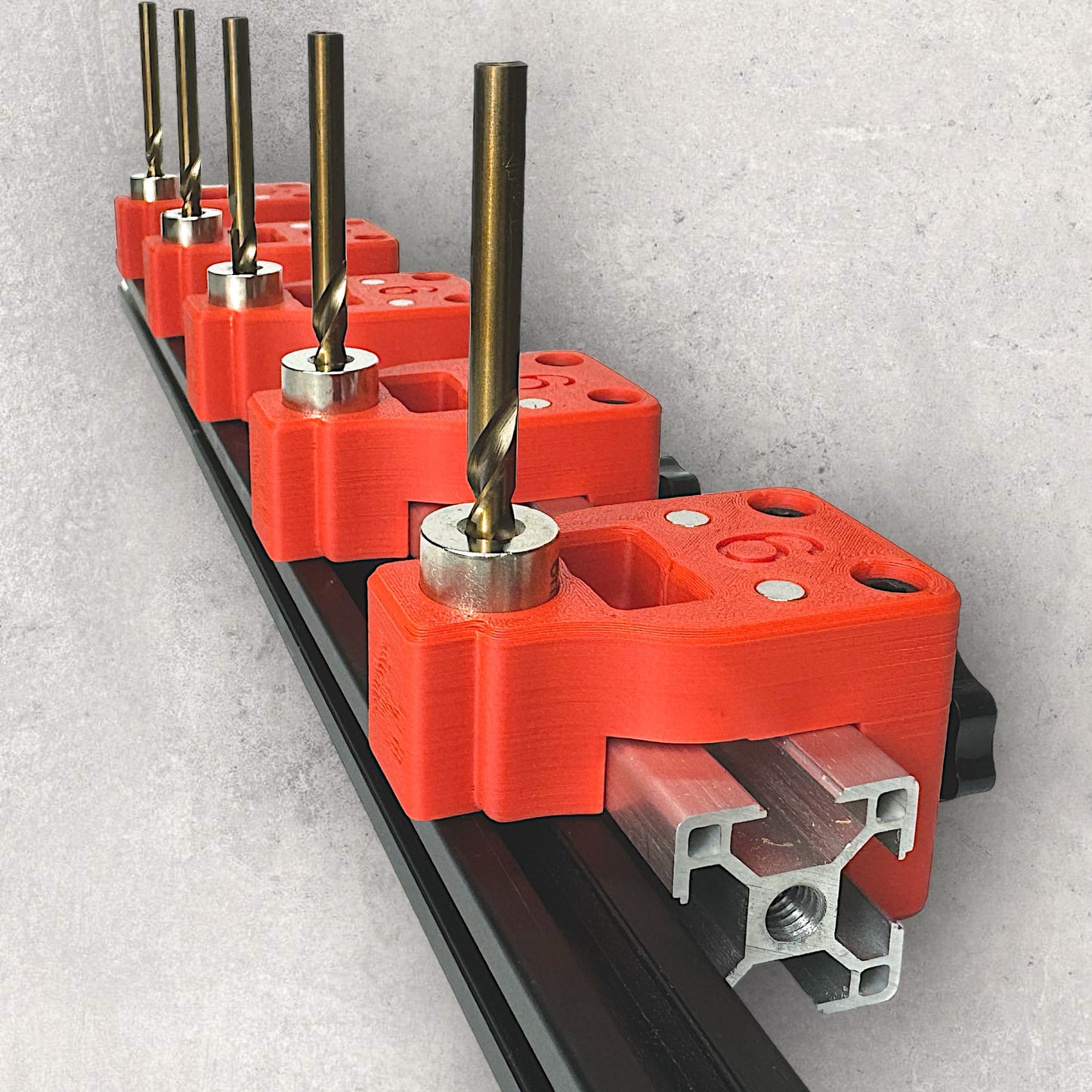

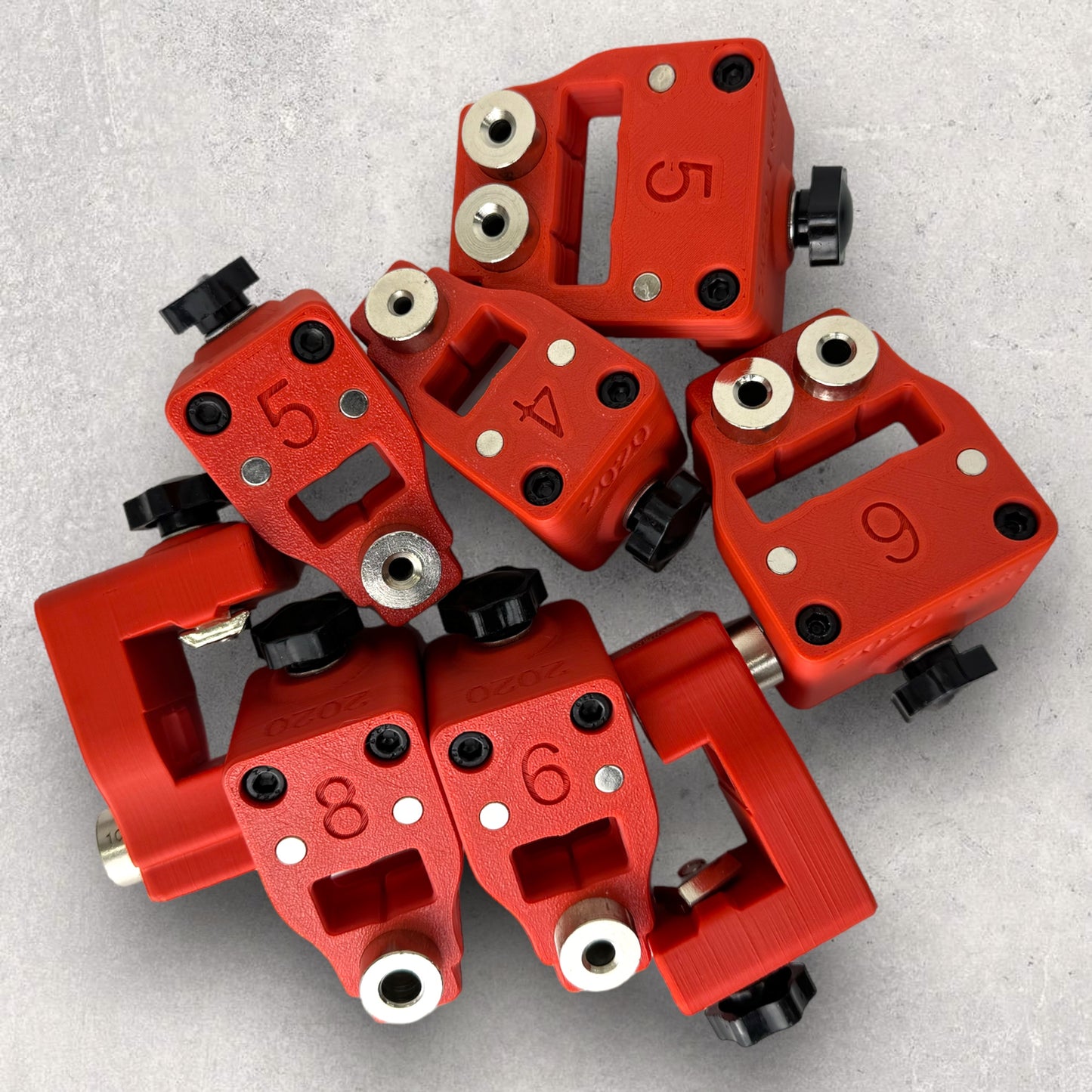

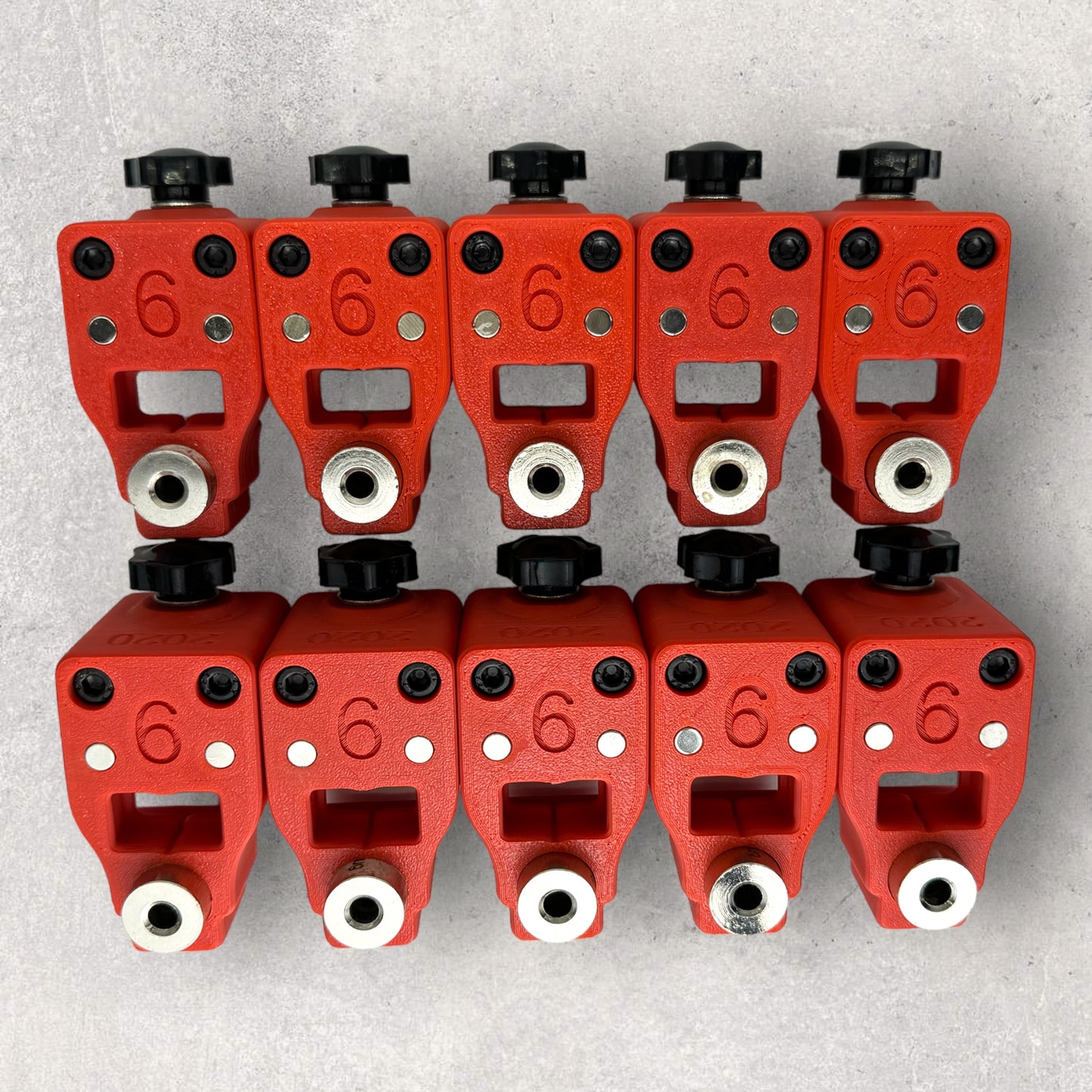

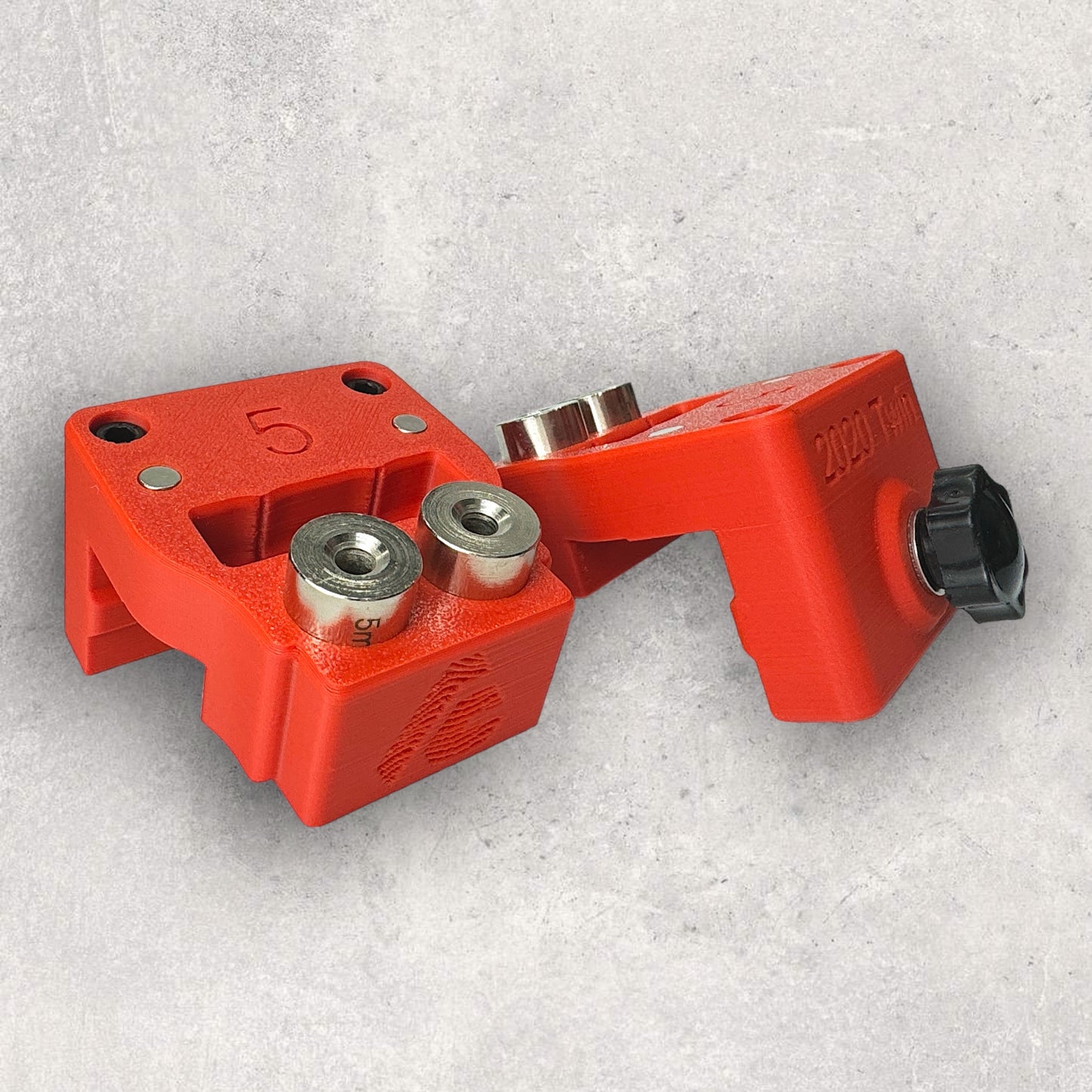

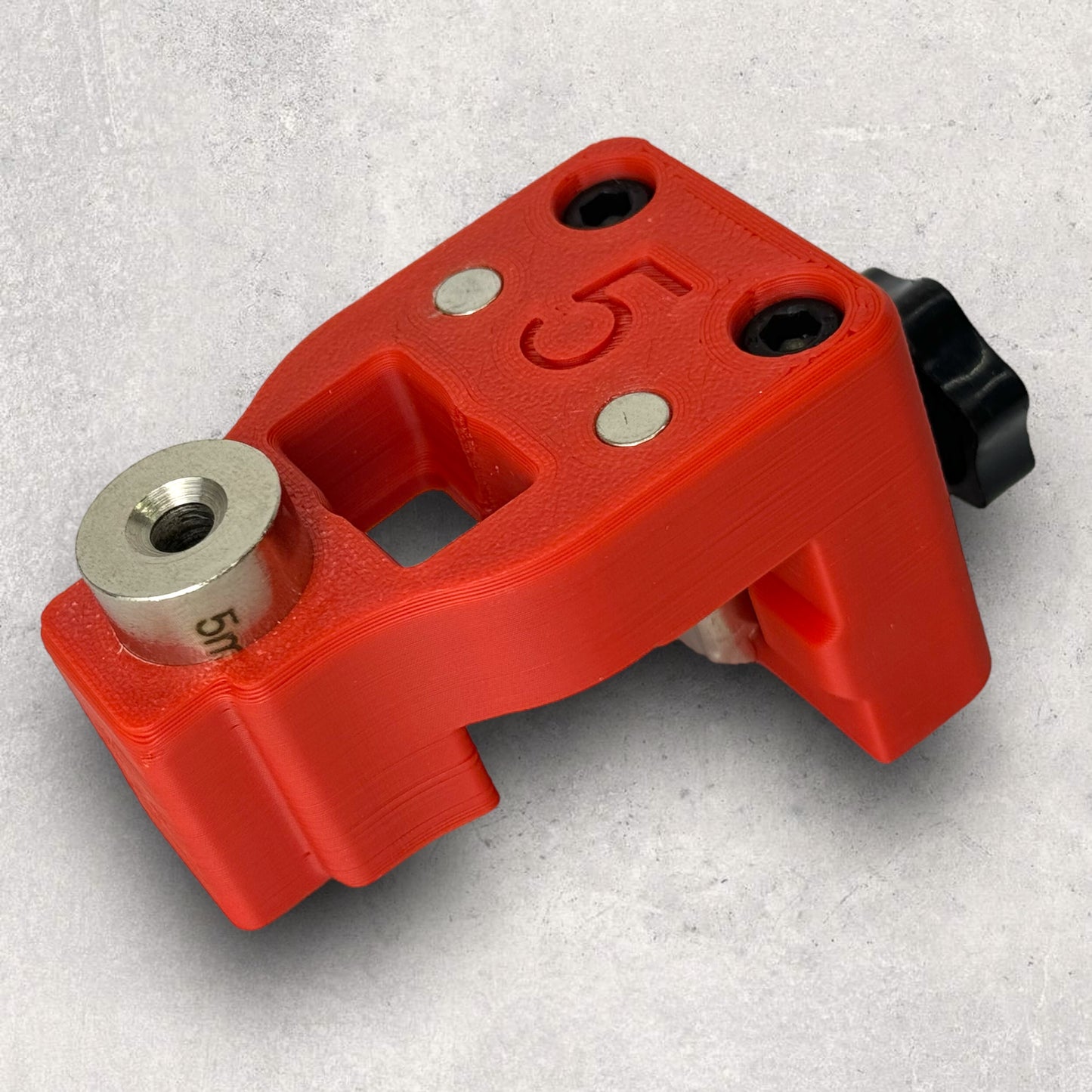

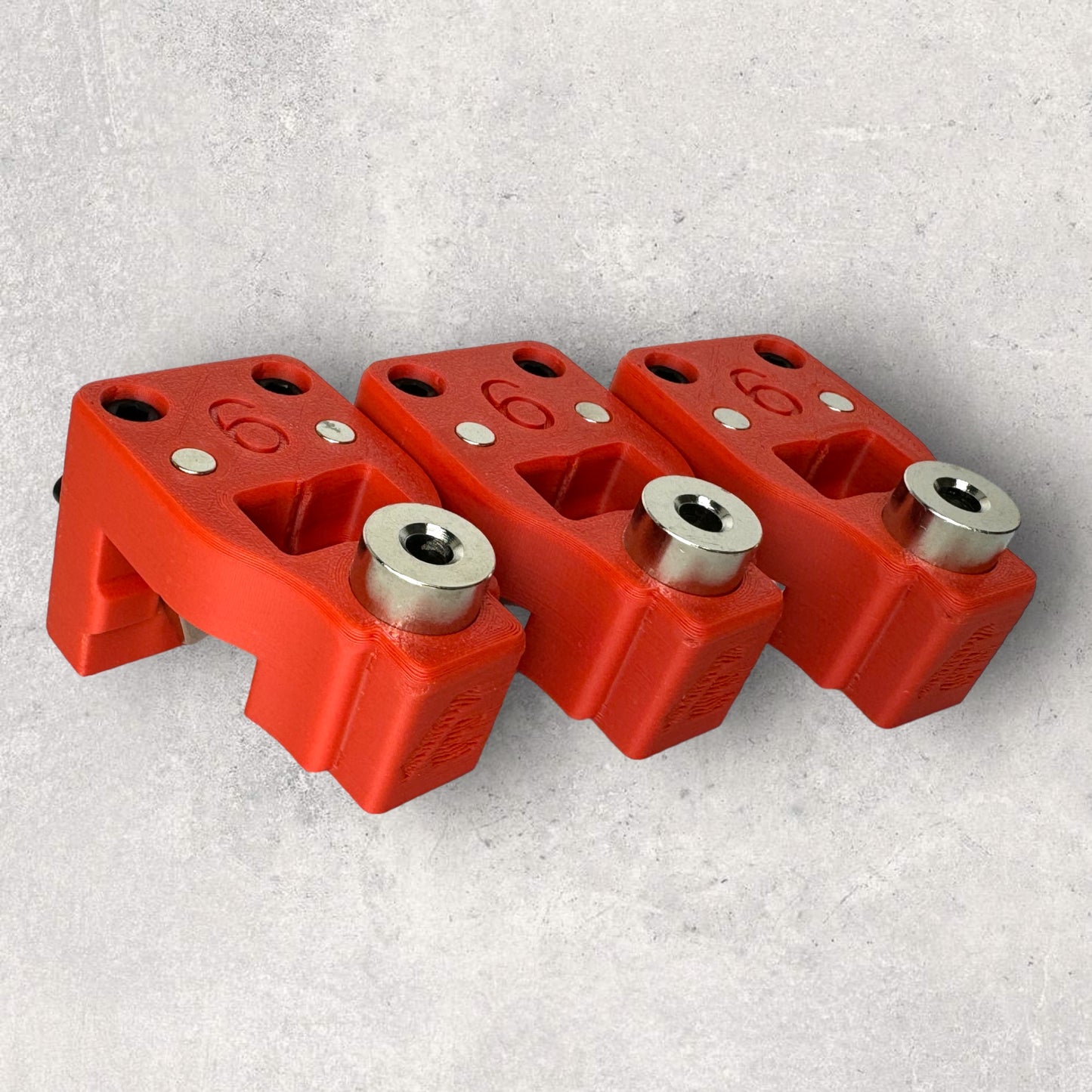

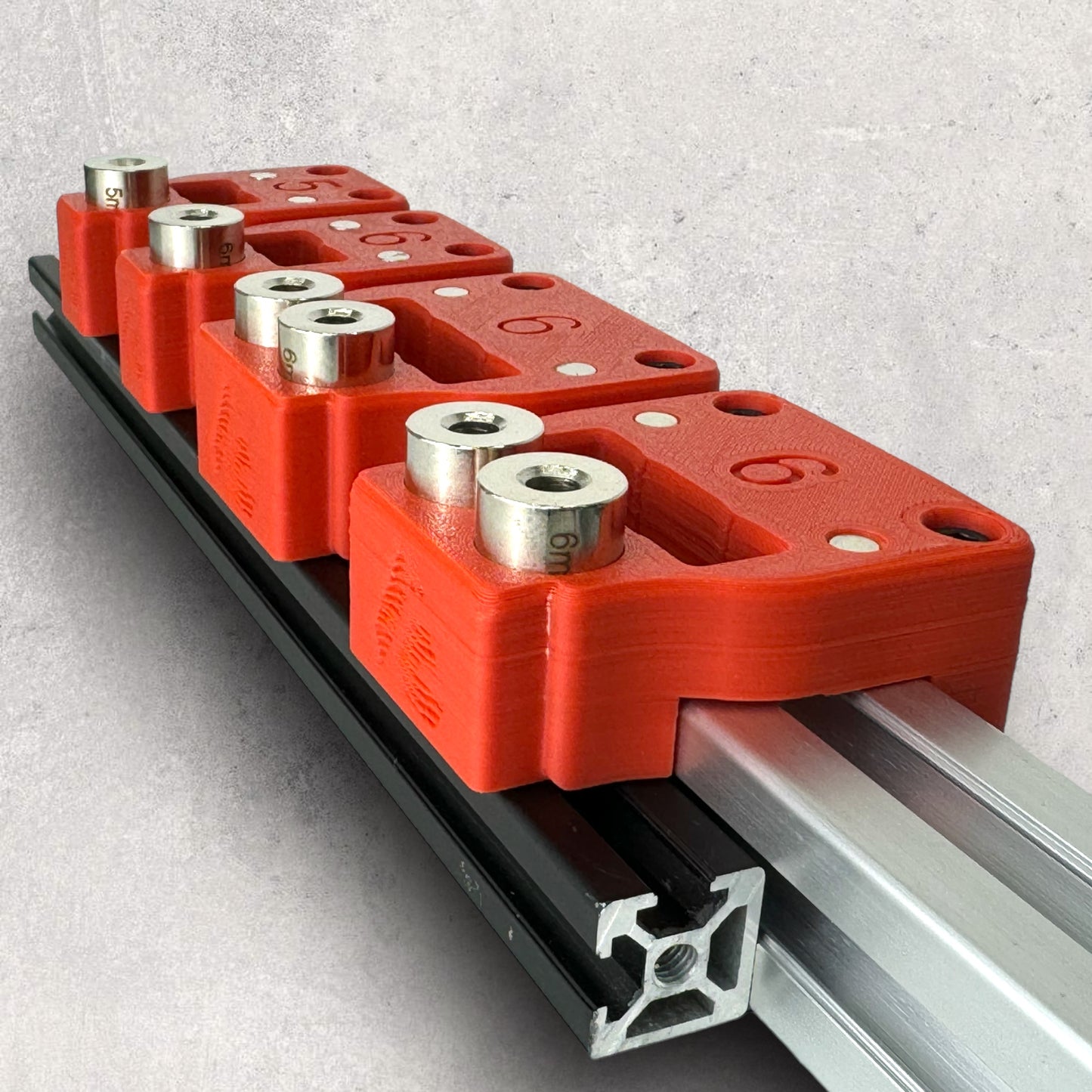

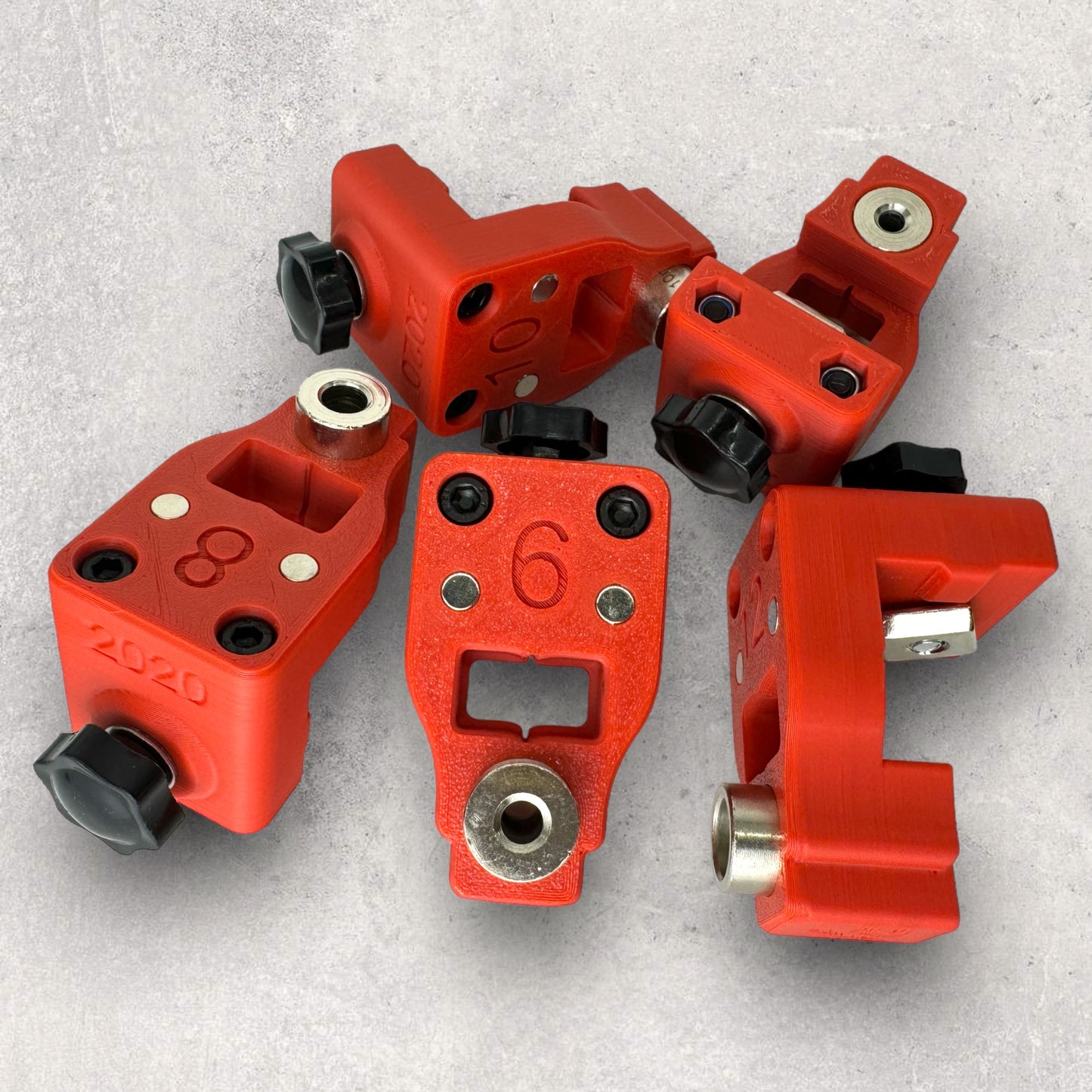

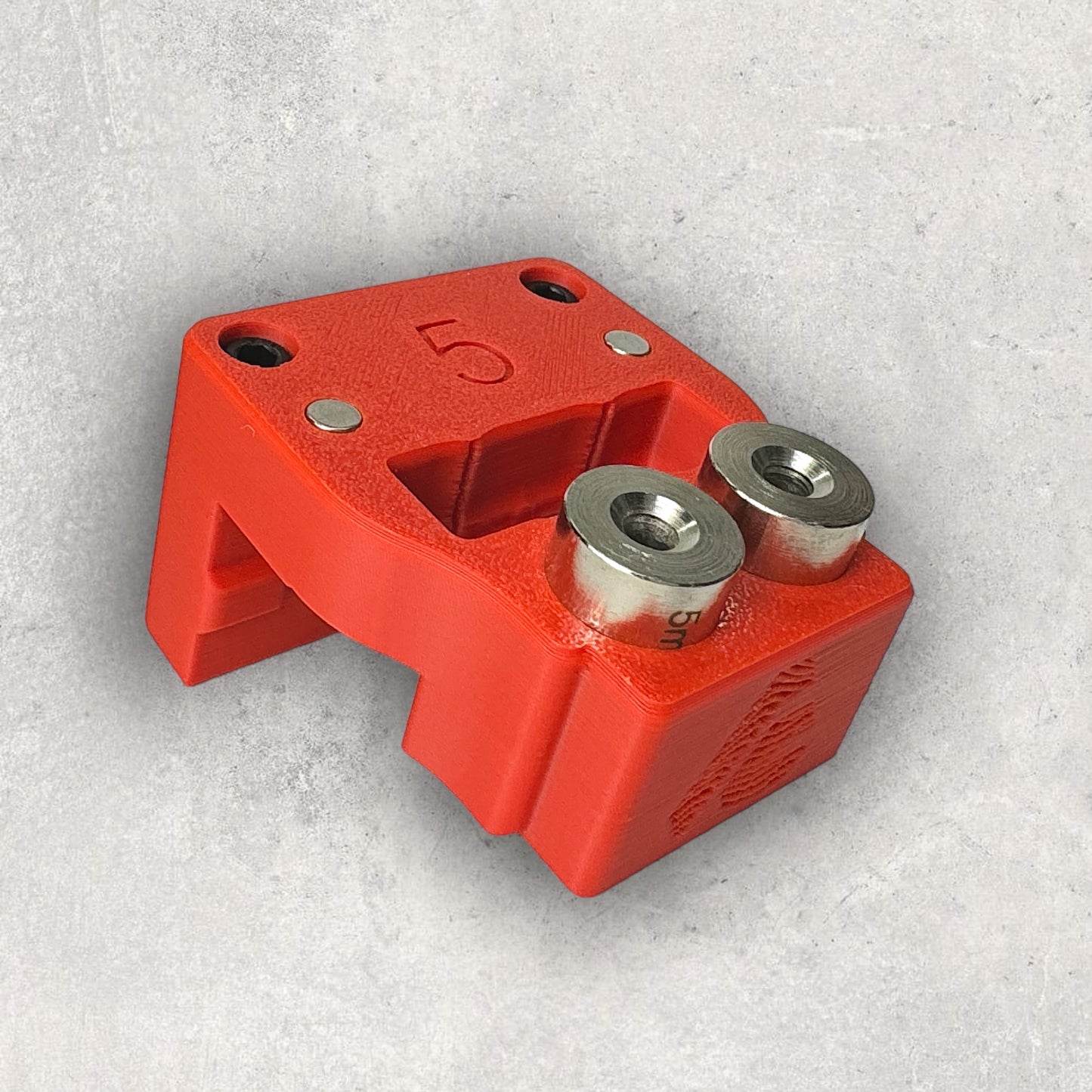

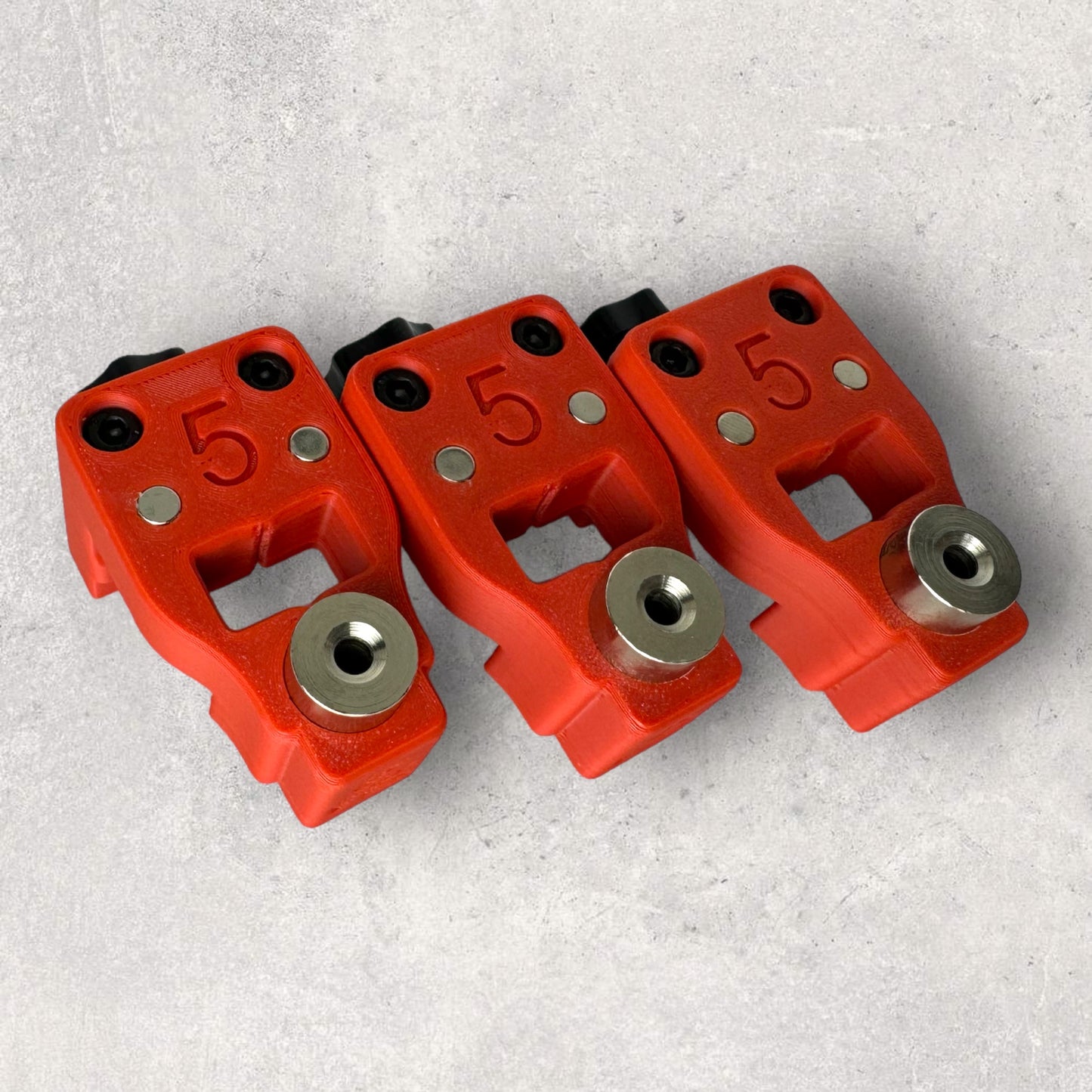

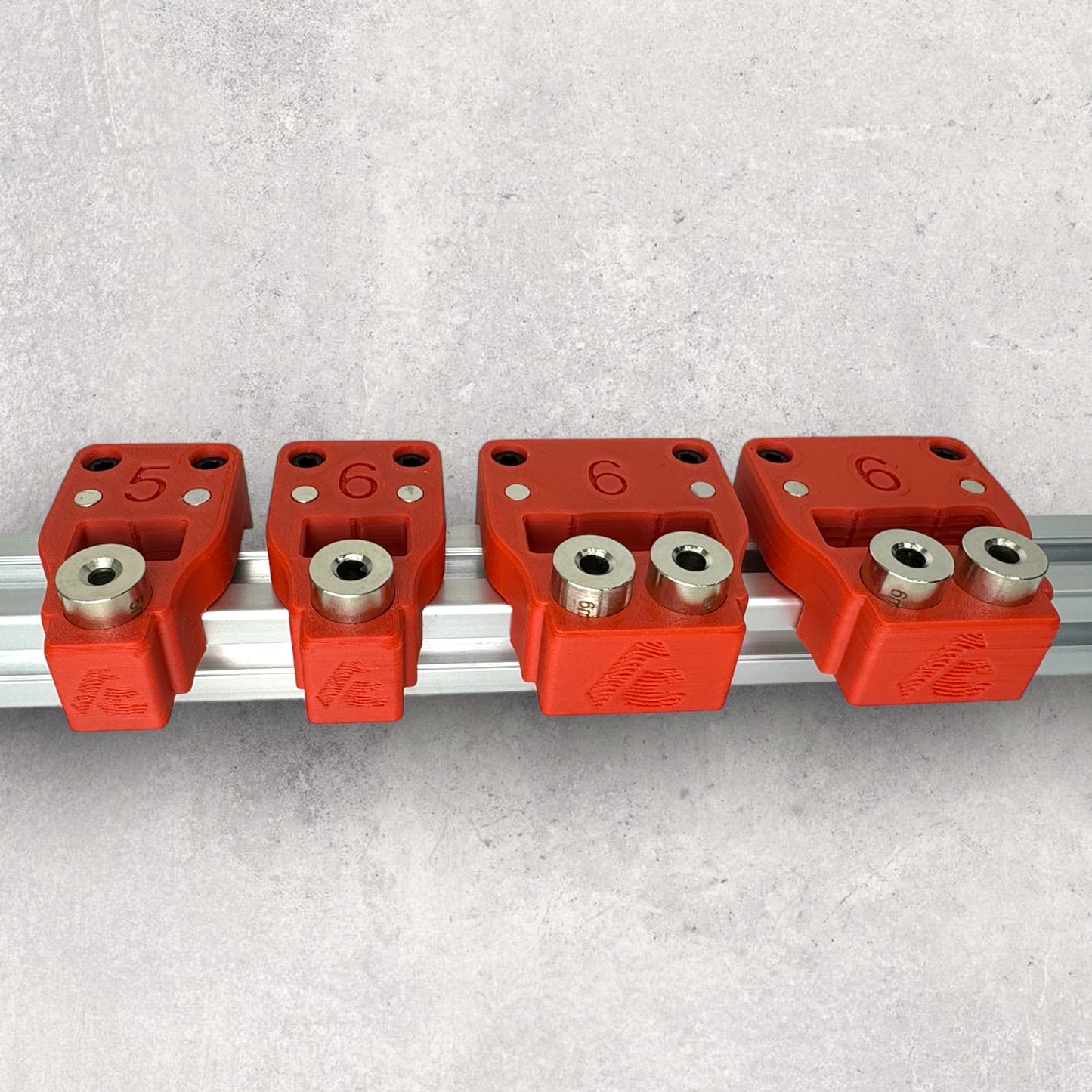

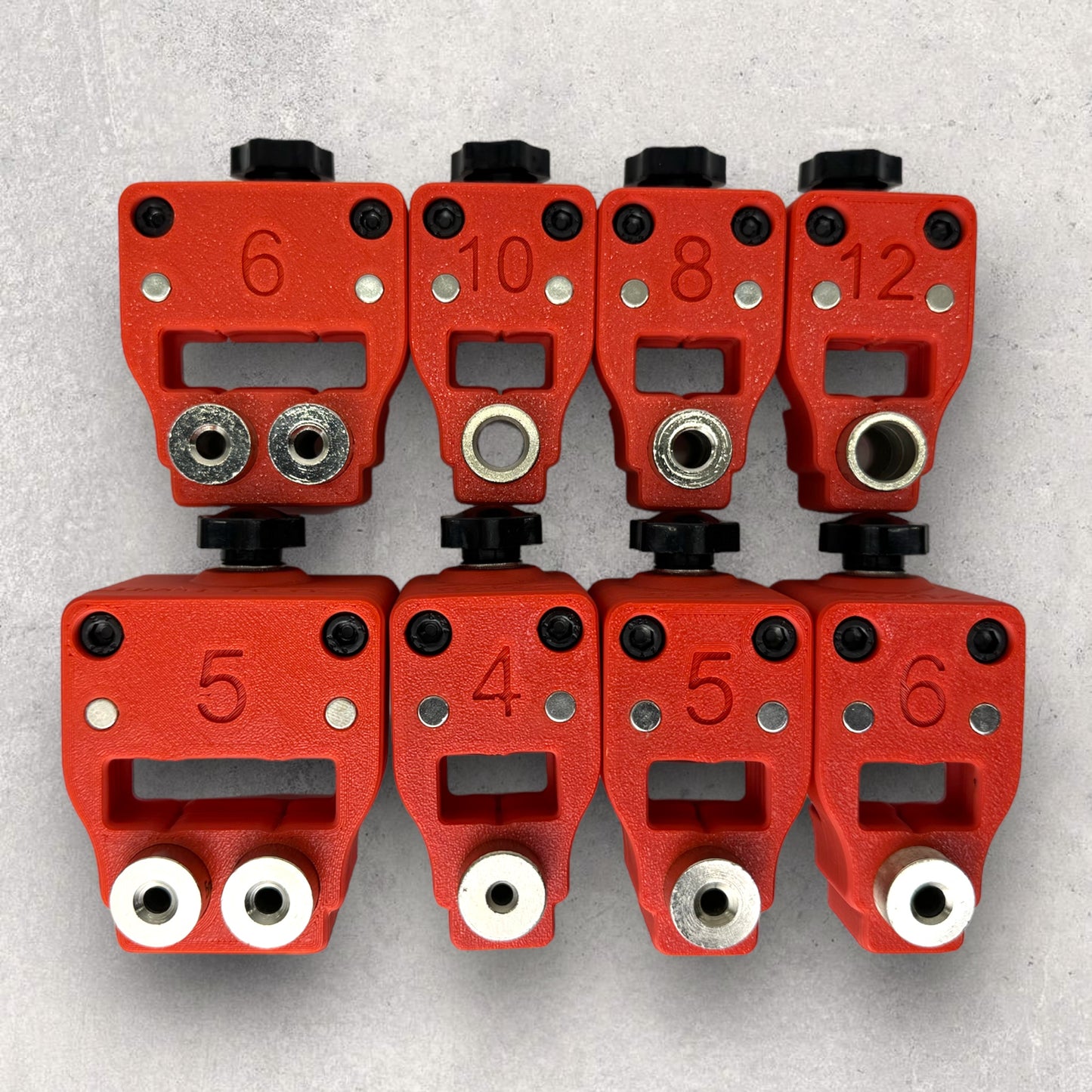

This Drill Guide System allows you to mount several jigs onto a 3030 aluminum extrusion to make repeatable and accurate drilled holes for 20 series aluminum extrusion, facilitating 'Blind Joints.'

Such joints reduce the reliance on external brackets, resulting in more aesthetically pleasing joinery.

You will need to purchase a 3030 aluminum extrusion from your local supplier. Purchase one with a length longer than what your projects will require, for example, if your project has 1.5 meter lengths, purchase a 2 meter.

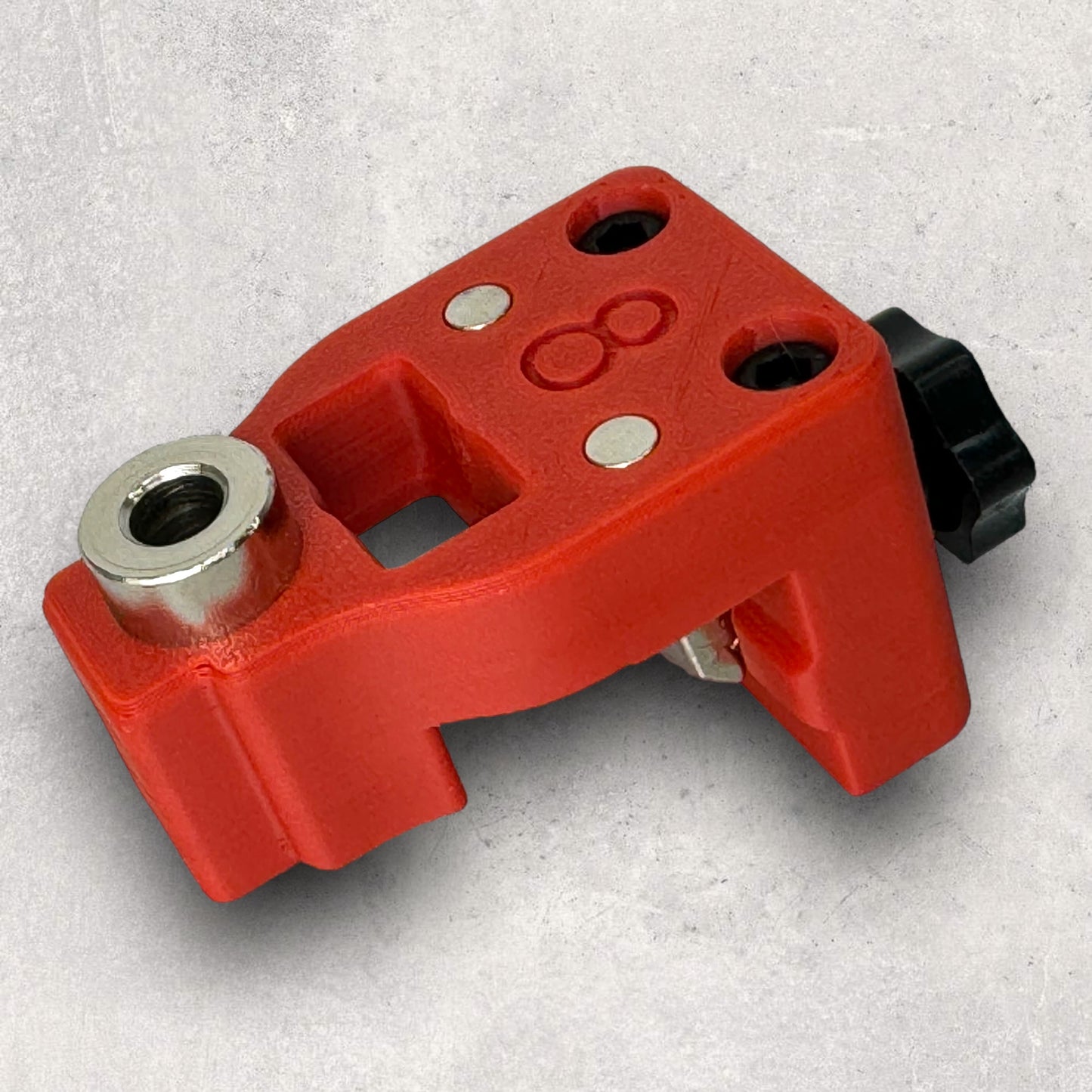

Equipped with 2 magnets, this attachment easily adheres to any magnetic surface, providing an organized storage solution.

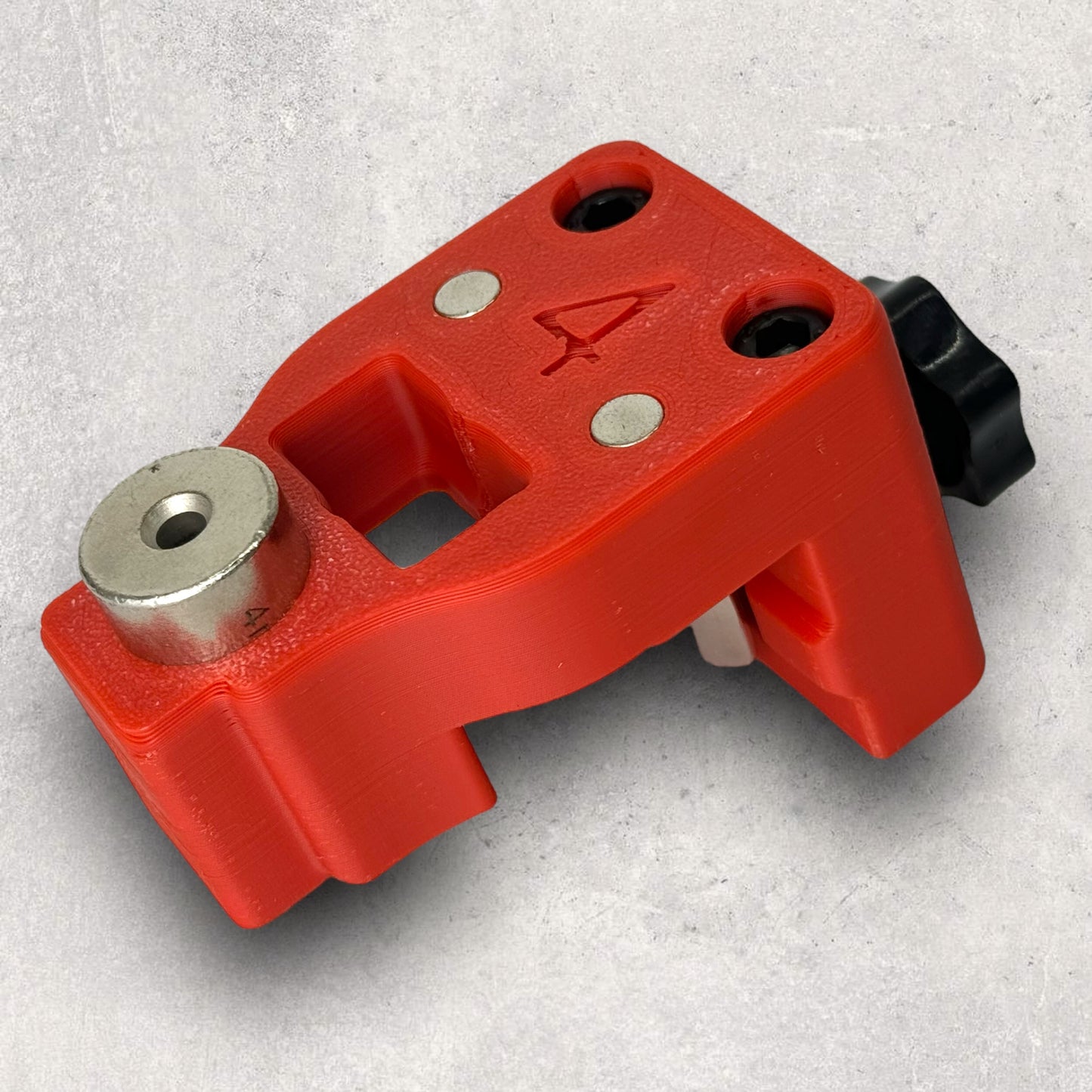

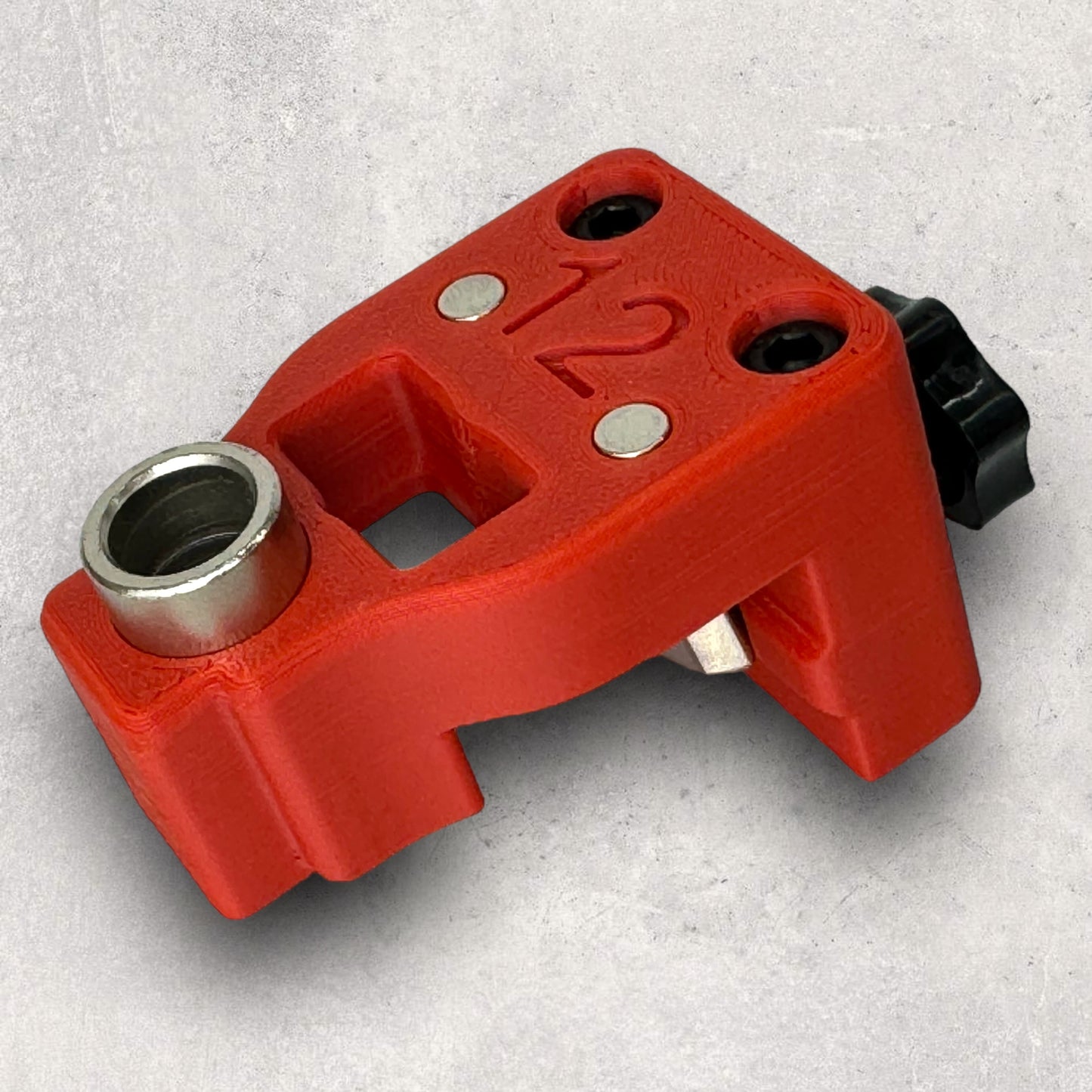

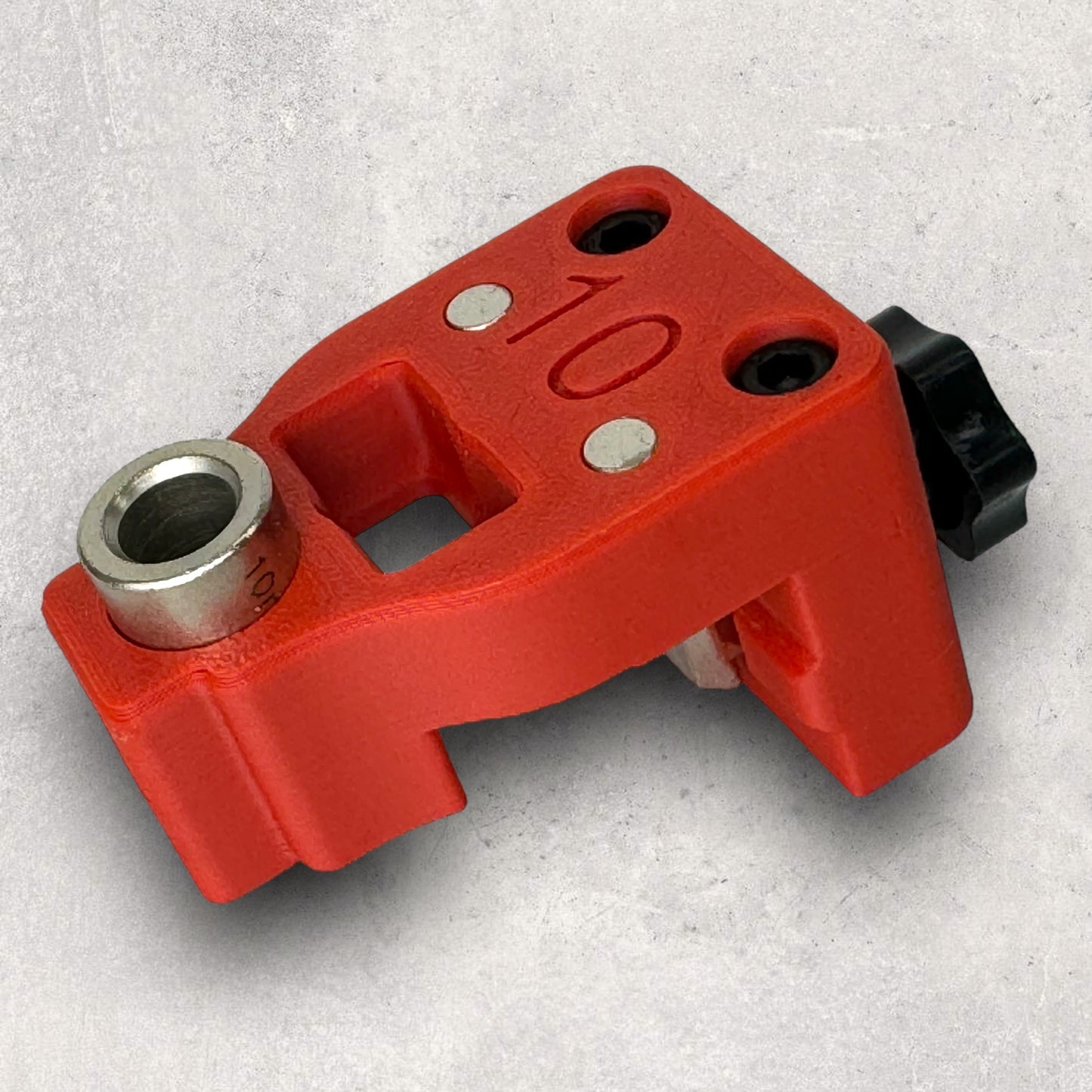

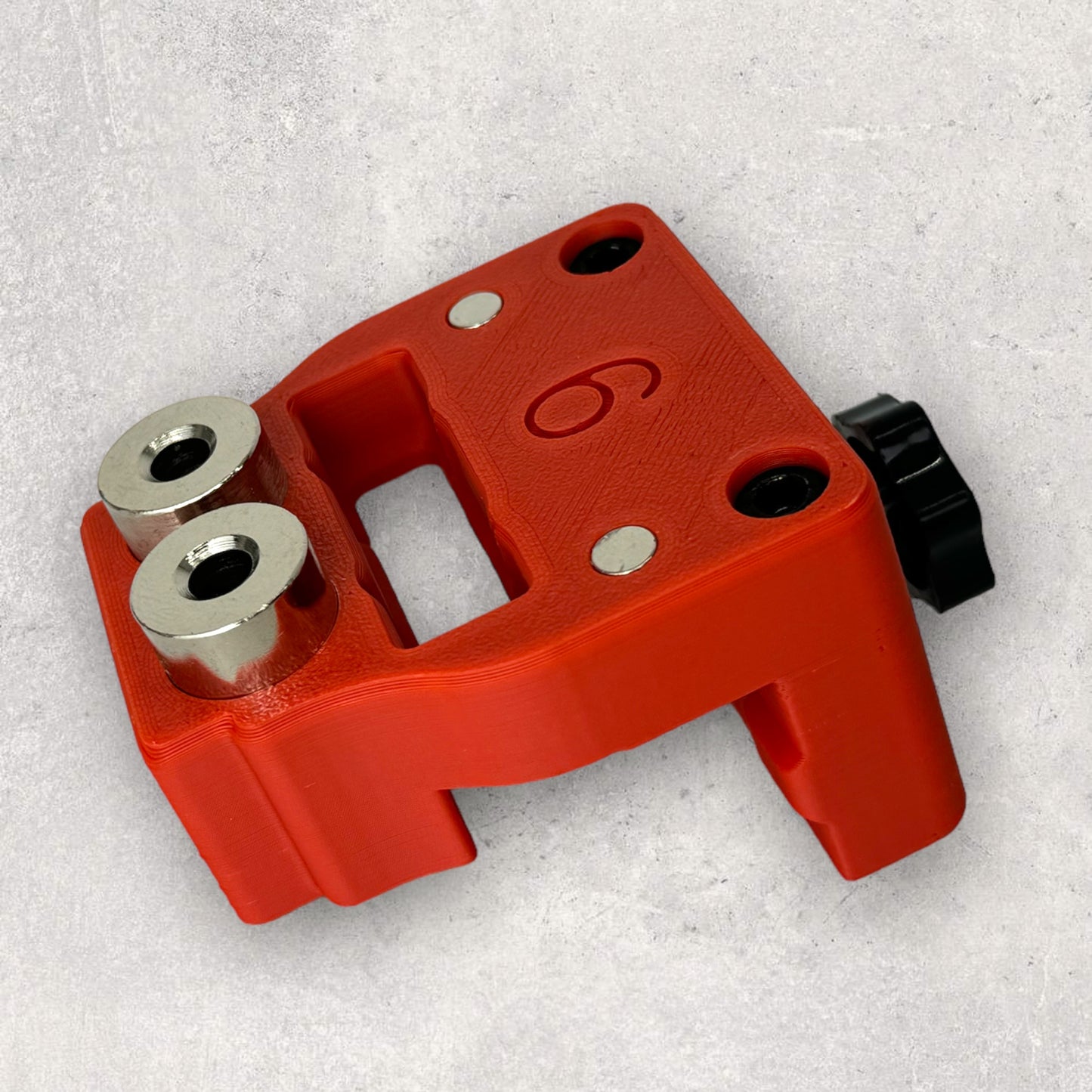

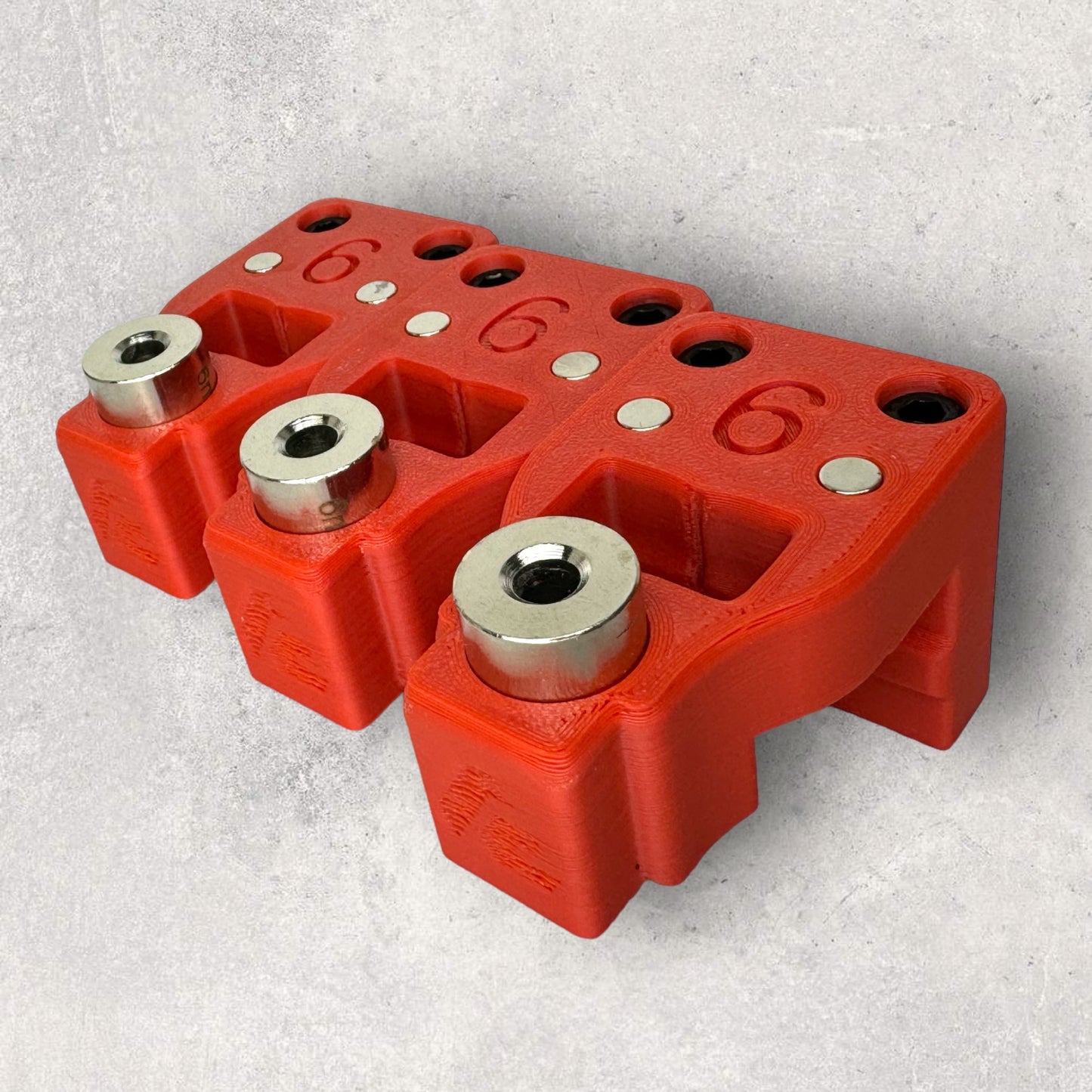

This is a high quality 3d printed precision 8020 aluminum extrusion drilling jig designed and produced by 'The Aluminum Carpenter' to work with all 20 series aluminum extrusion. Additionally, all necessary bolts and nuts are included, allowing for immediate use straight out of the box.

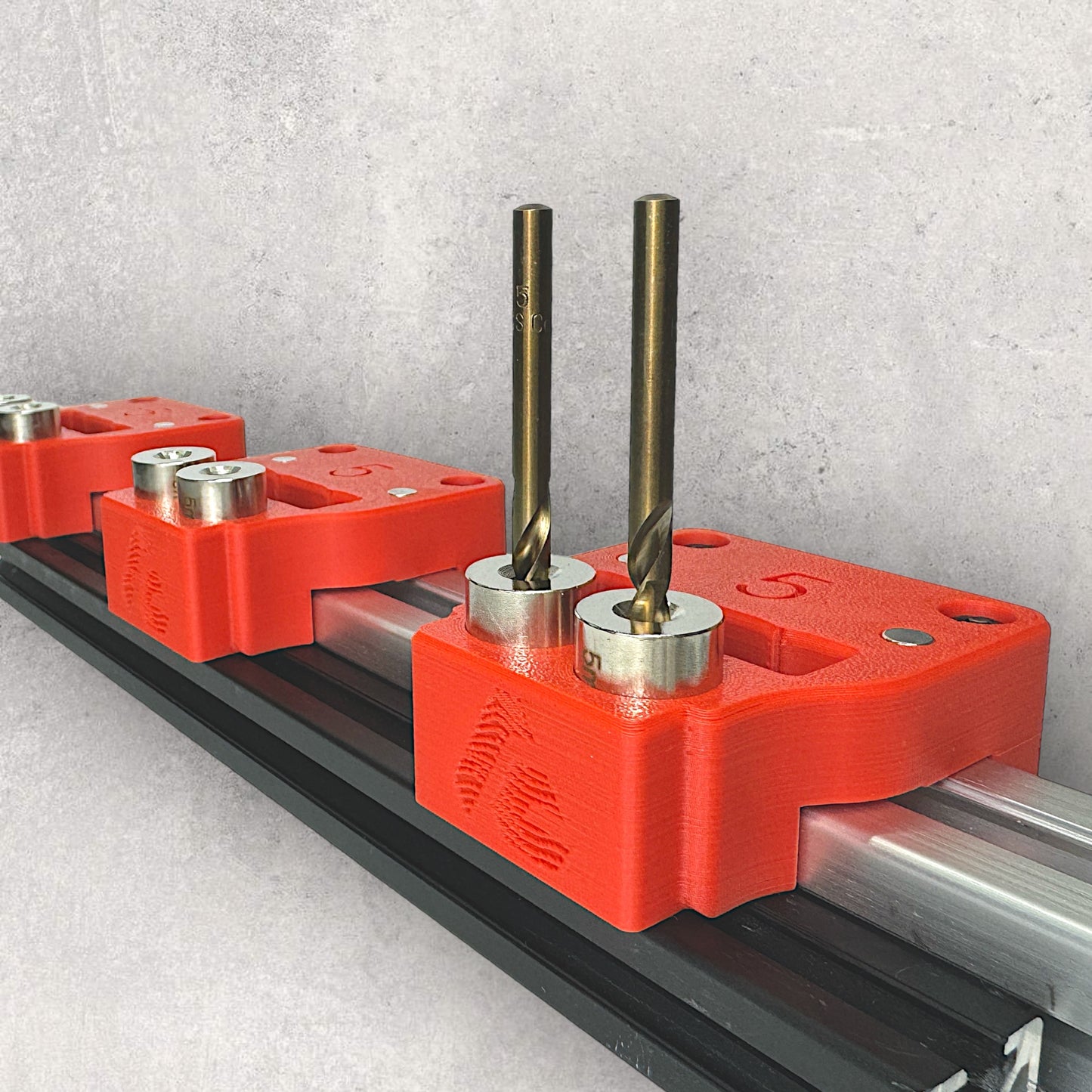

With this precision drilling jig, you can consistently achieve multiple and repeatable accurate hole placements without the need for additional tools.

All our Precision Jigs come with Free International Shipping.

Orders will be printed, assembled, and packed directly from our Singapore office. Global shipping typically takes 8 to 18 business days, as per the estimates provided by our local postal service.
