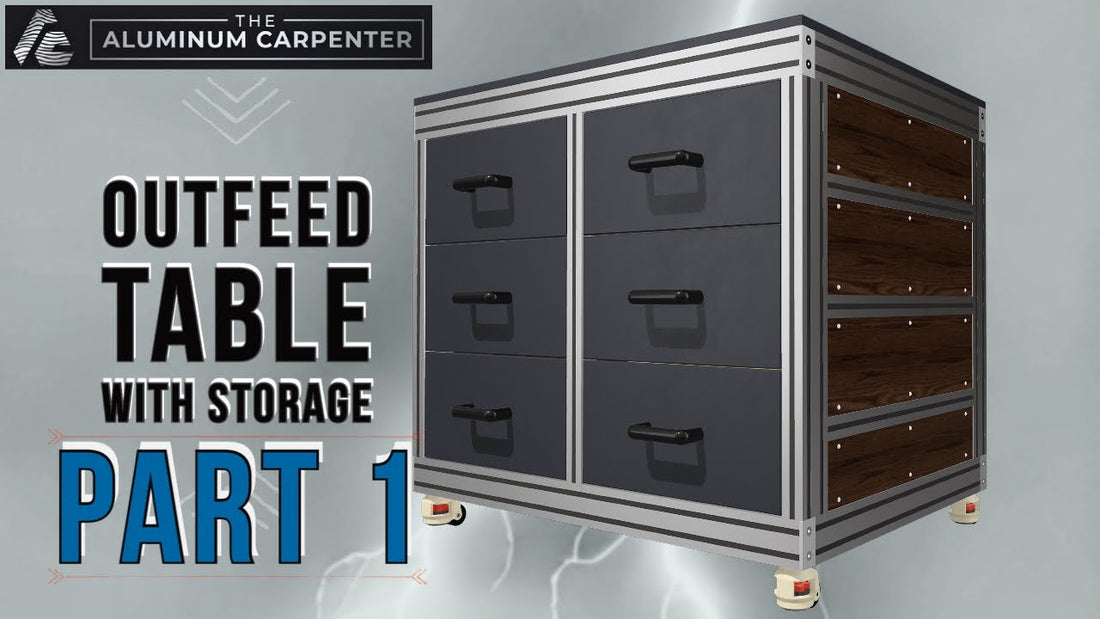

Aluminum extrusion frame outfeed table for a table saw with 12 drawers — build video

Table Saw Outfeed Table with 12 Drawers — Aluminum Extrusion Frame, Part 1 (Build Video)

What this build is

An outfeed table that suits any table saw, with 12 storage drawers — 6 on each side. The 4040 and 4080 extrusion frame gives it the rigidity an outfeed surface needs, and the drawers turn dead space behind the saw into the most convenient storage in the shop.

What Part 1 covers

  • Planning the frame around the saw height
  • Drilling 4040 and 4080 extrusion with offset and freehand jigs for blind joints
  • Squaring the frame with the 4040 perpendicular alignment jig
  • Setting up for the drawers and top in the next part

Key details

  • Frame: 4040 and 4080 series aluminum extrusion
  • Size (V2): 1048 × 800 × 980 mm · 1,073 parts in the model

Build it yourself

Outfeed Table V2 plans (Download) → · Version 1

Jigs used in this build
