Aluminum Extrusion Precision Alignment Jig

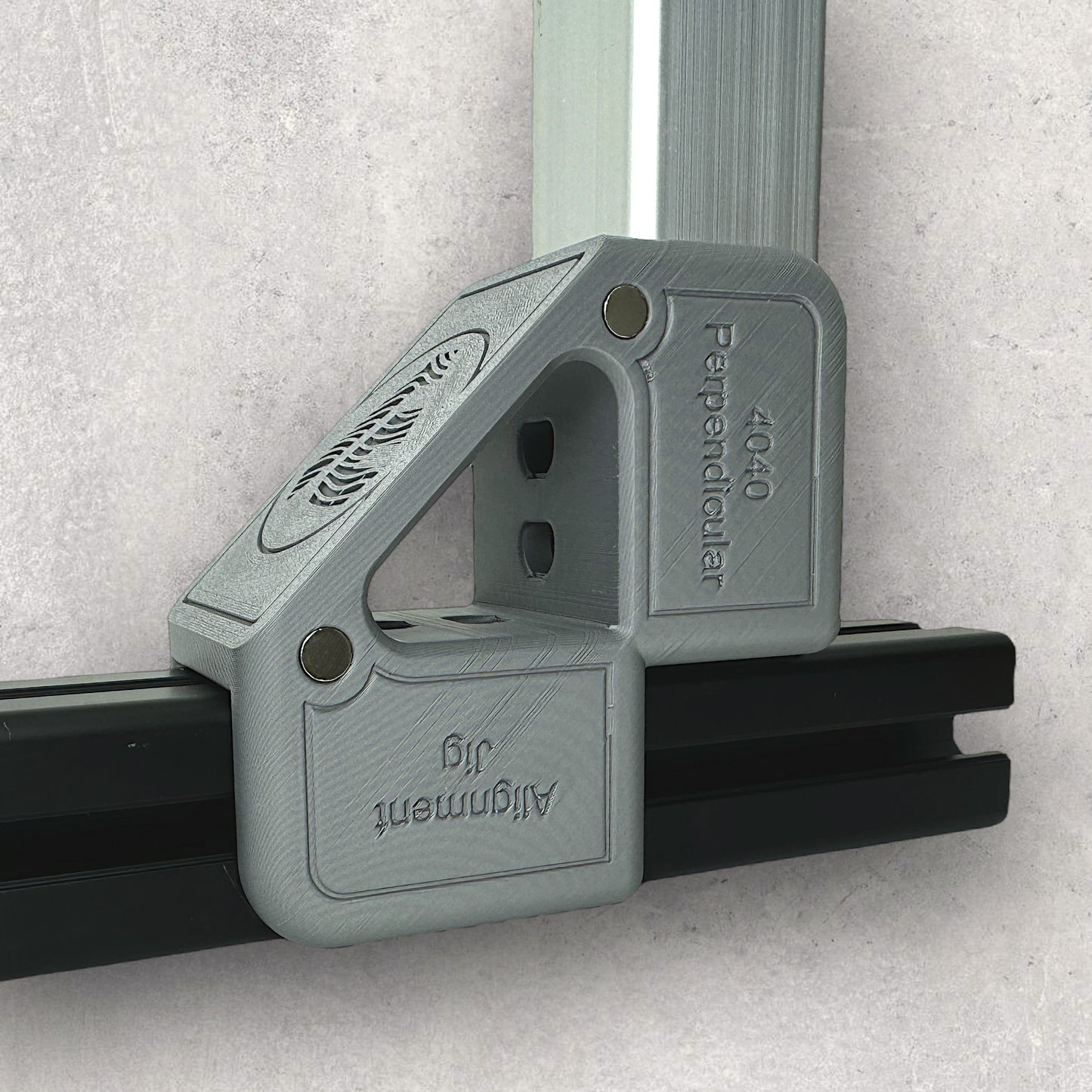

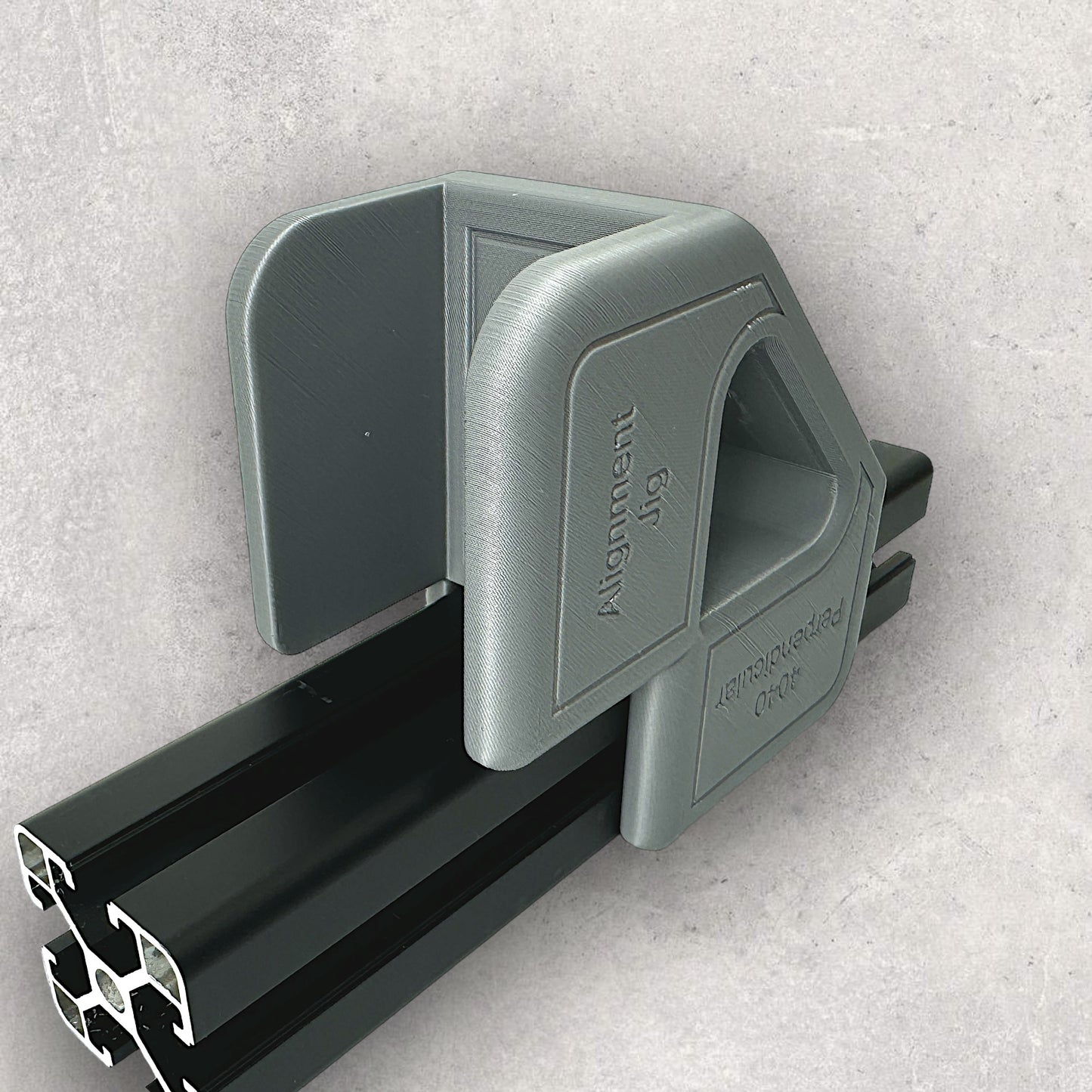

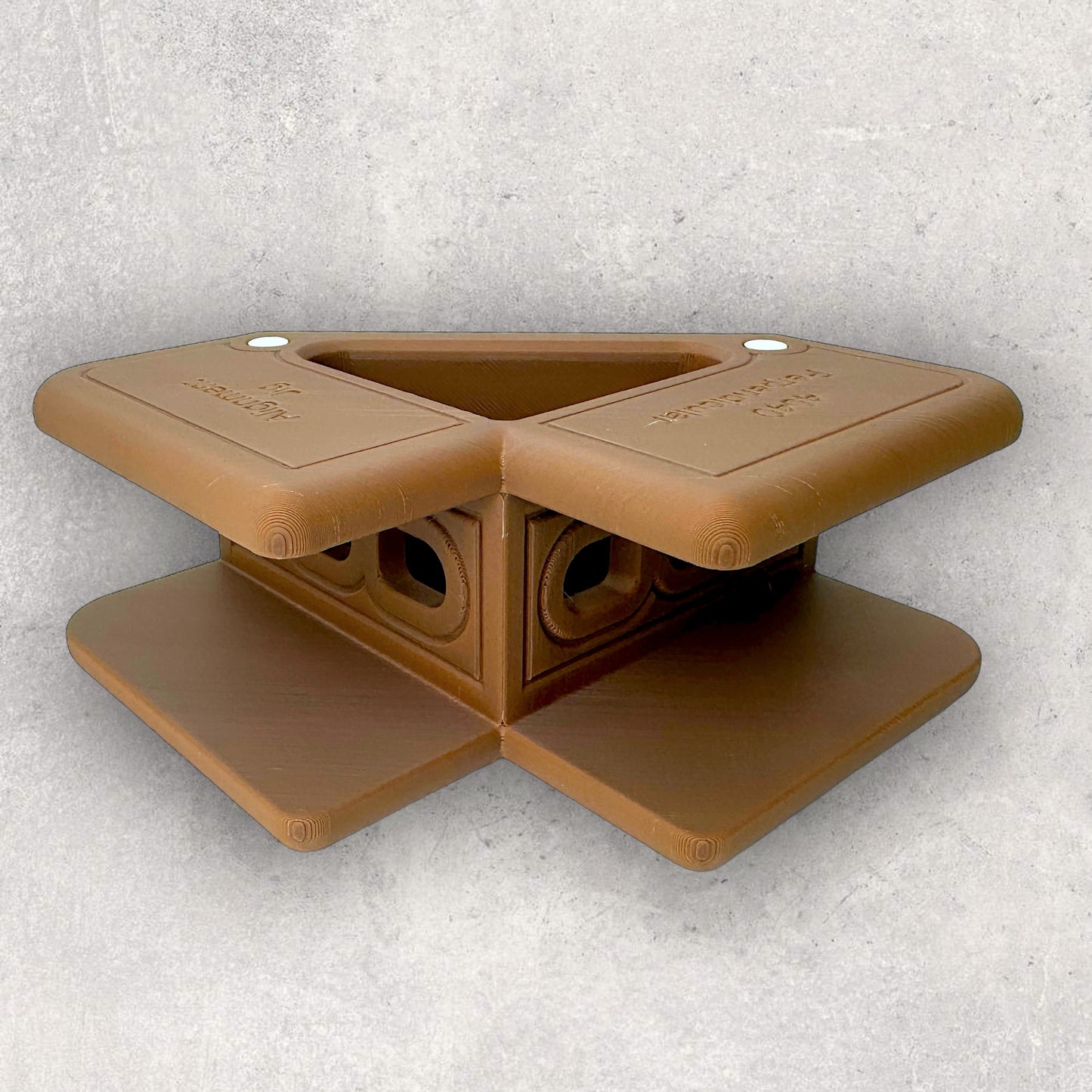

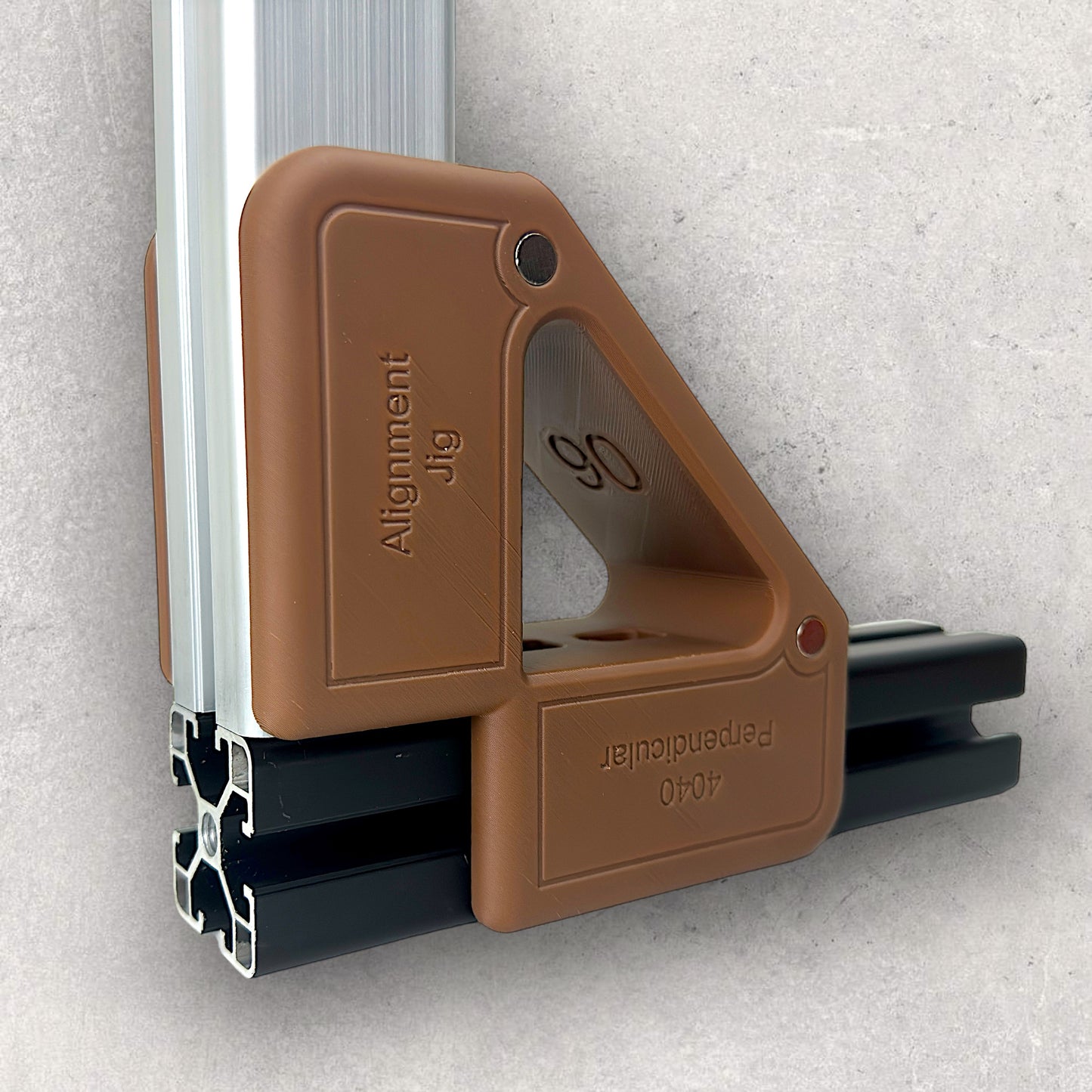

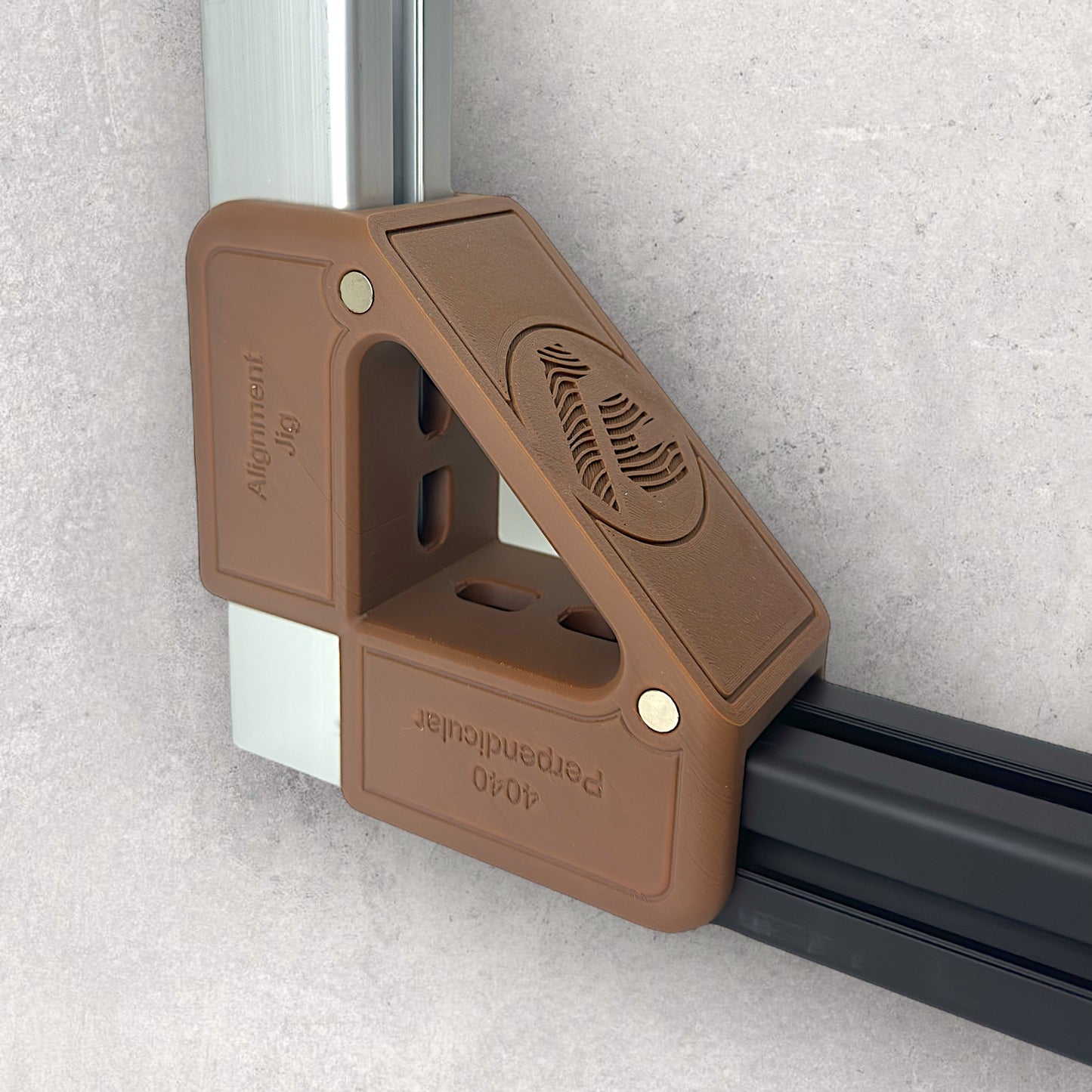

This alignment jig enables precise alignment of two aluminum extrusions perpendicular to each other, facilitating the creation of a flush and accurate blind joint without requiring additional flushing tools. This feature saves considerable time, particularly for repeatable tasks.

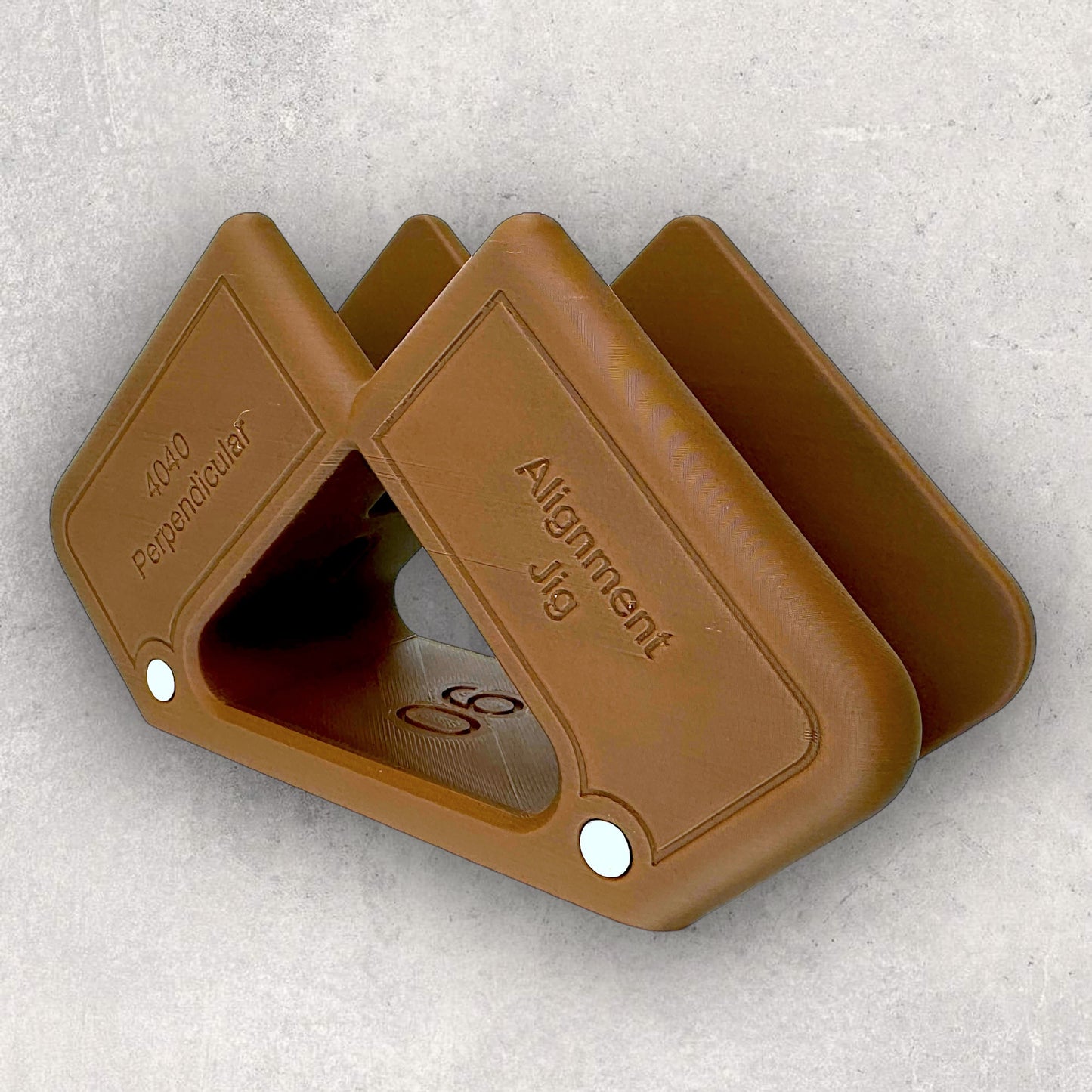

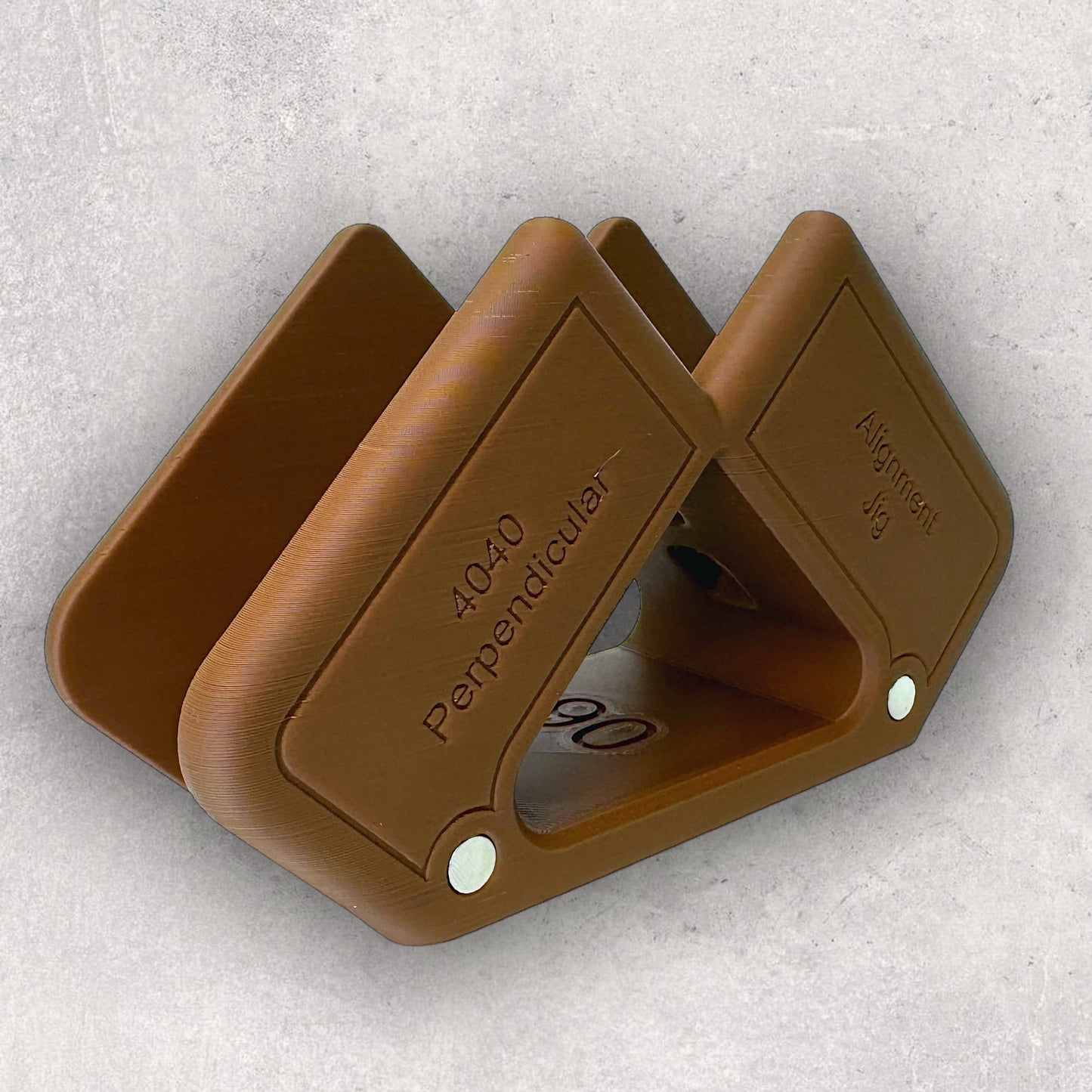

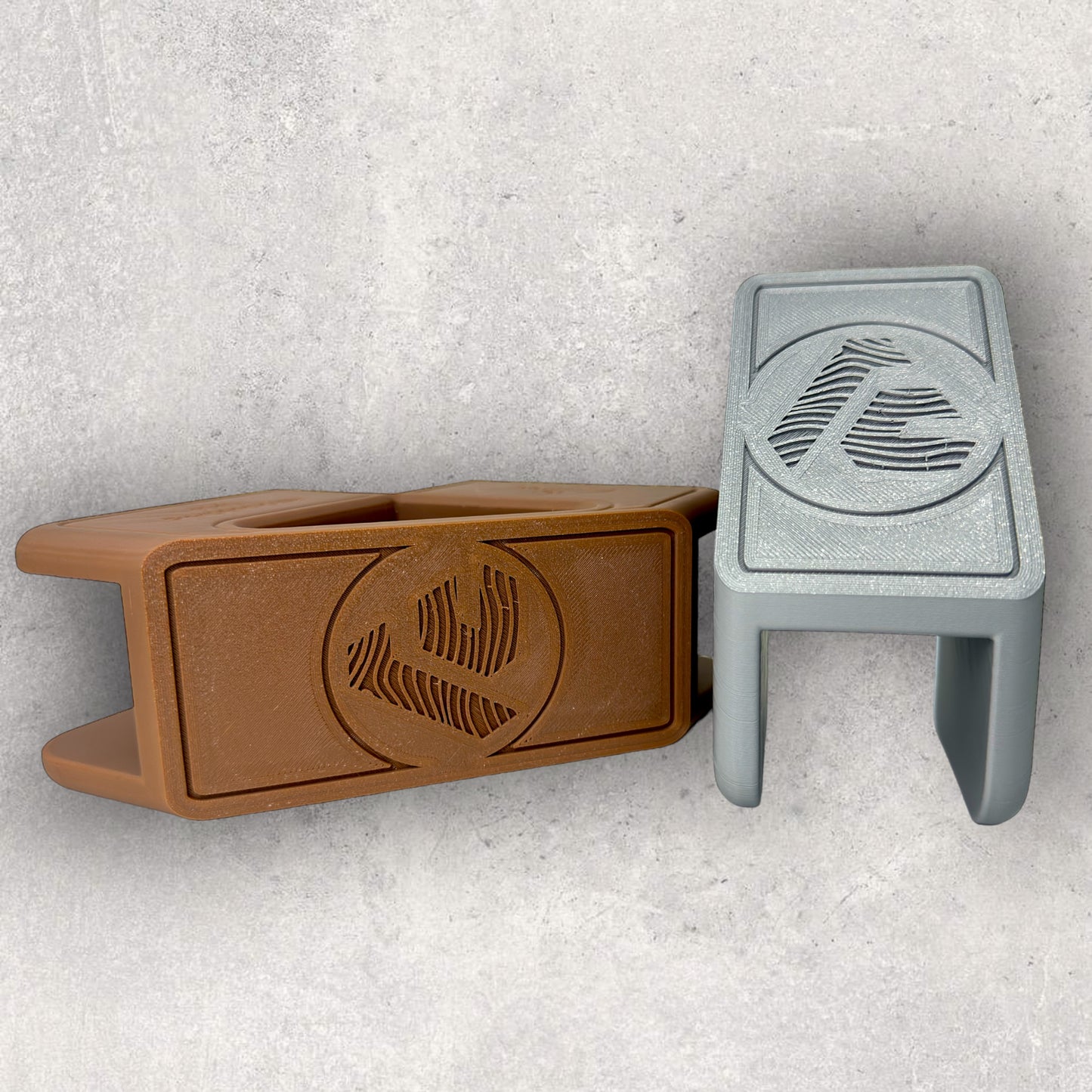

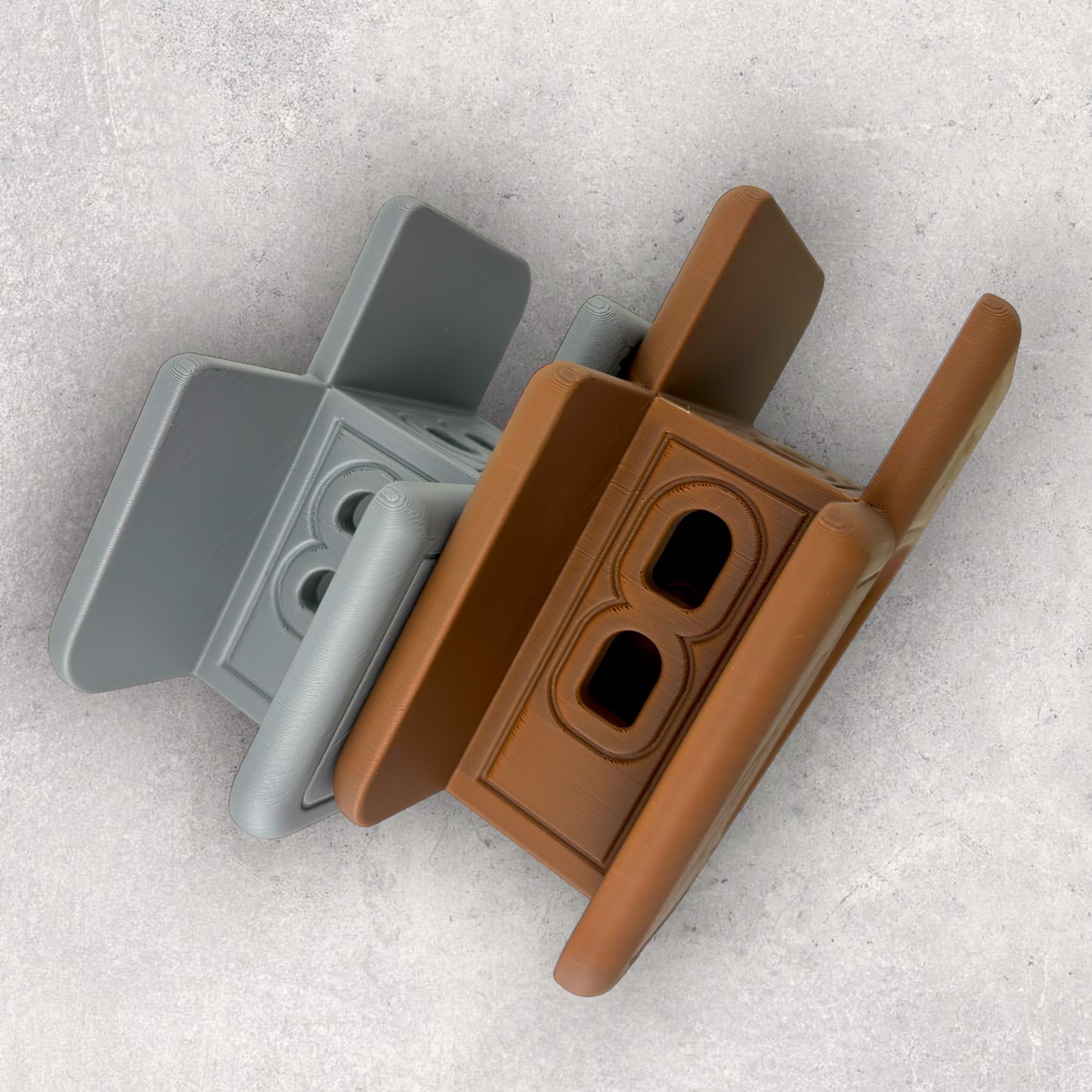

This jig is available in two sizes: 70mm for smaller projects and to fit in tiny corners, and 90mm for larger projects.
It is always advisable to have a minimum of 4 of these jigs on hand for any project, holding all 4 corners in position while you apply fasteners to each joint. Bulk discounts are automatically applied when you purchase 2 or 4 pieces.

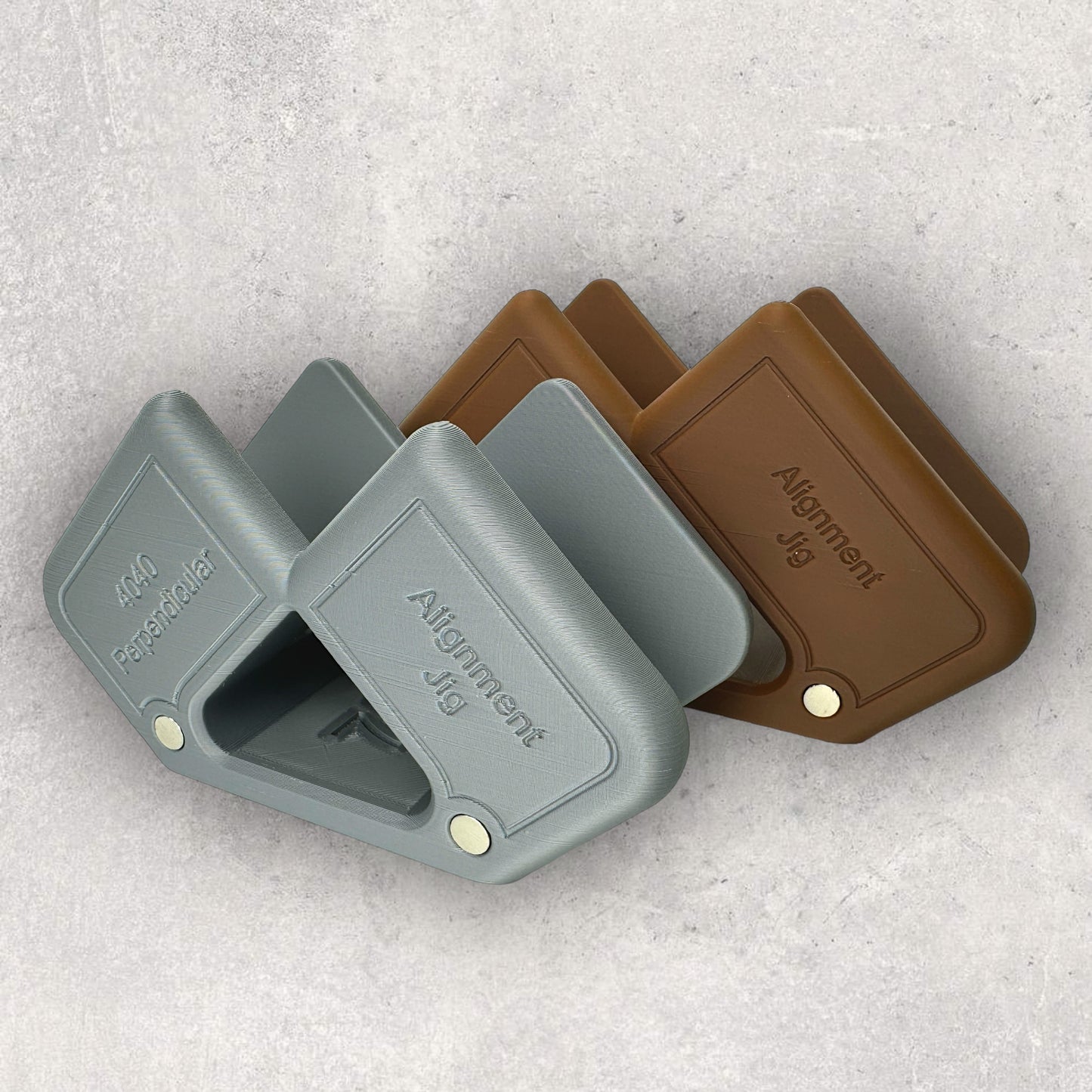

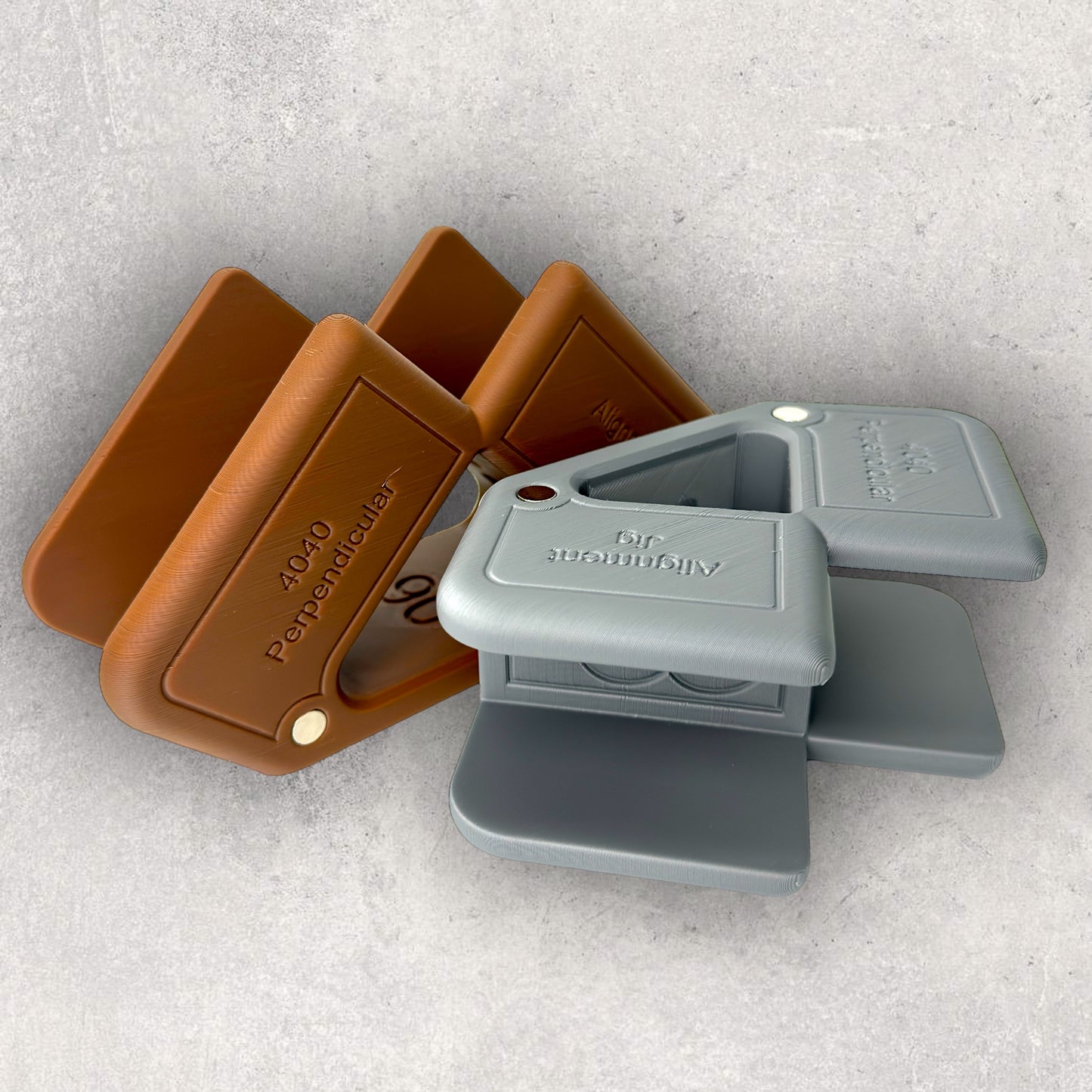

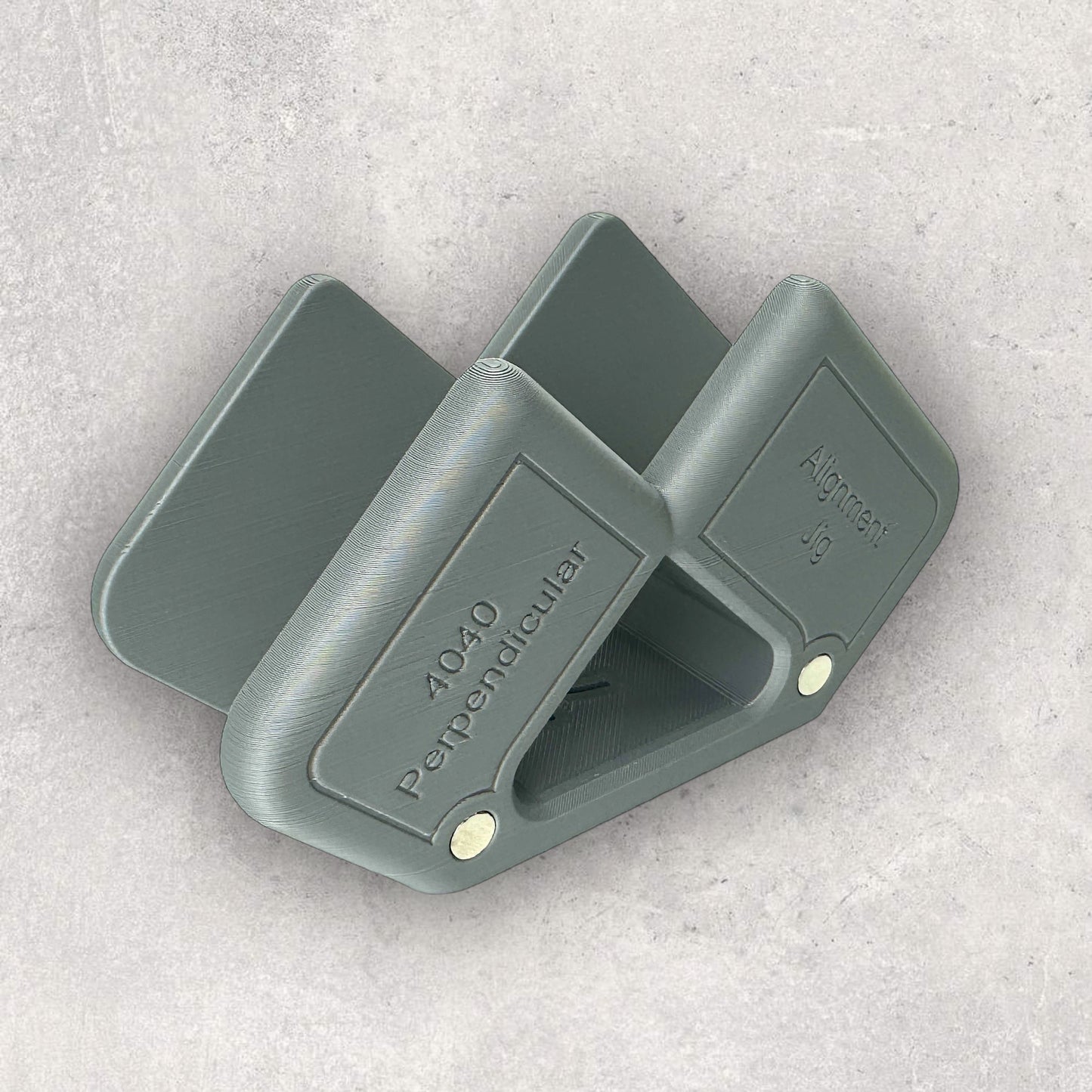

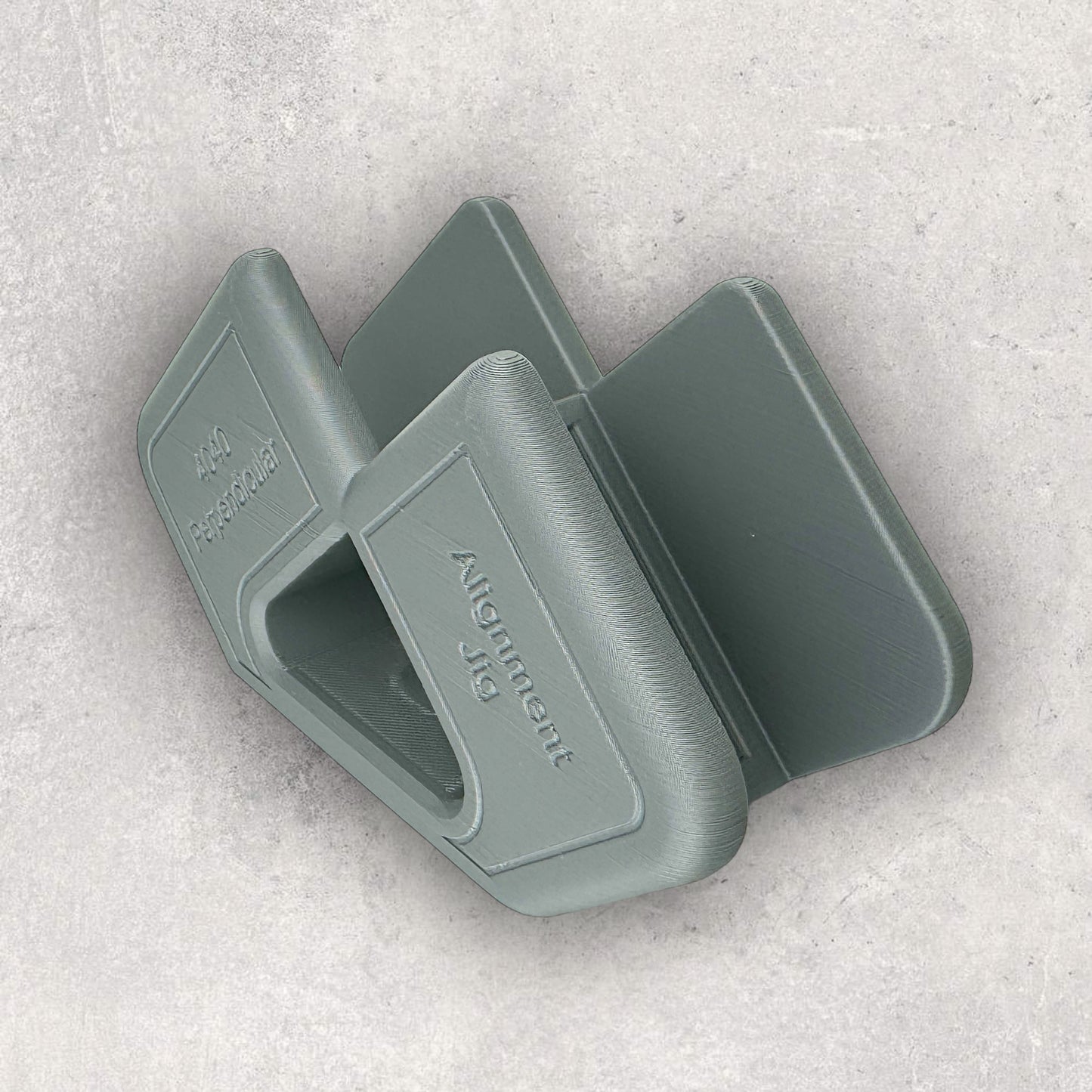

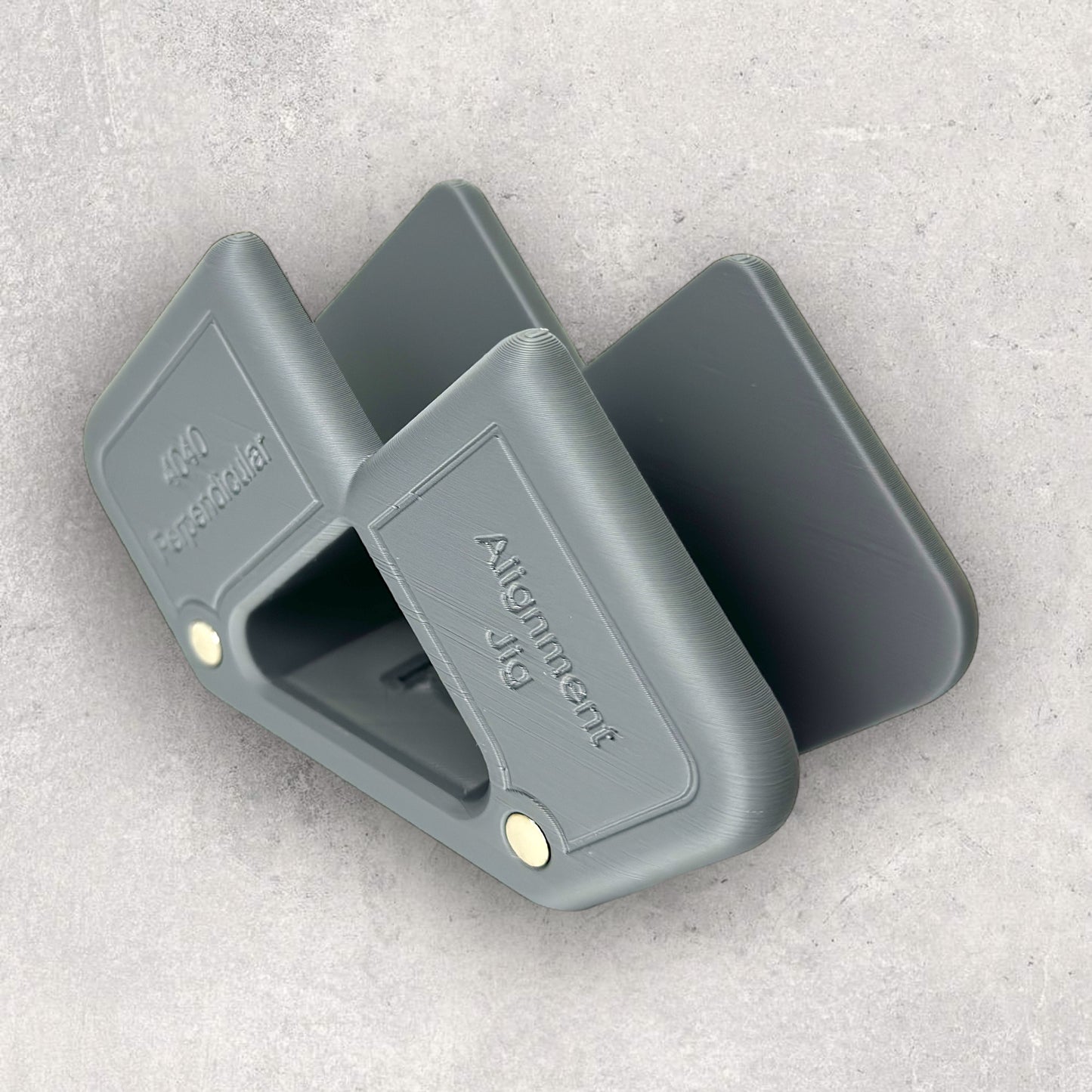

These are high-quality 3D-printed precision 8020 aluminum extrusion alignment jigs designed and produced by 'The Aluminum Carpenter' to work with all 40 series aluminum extrusion. Equipped with two magnets, this attachment easily adheres to any magnetic surface, providing an organized storage solution.

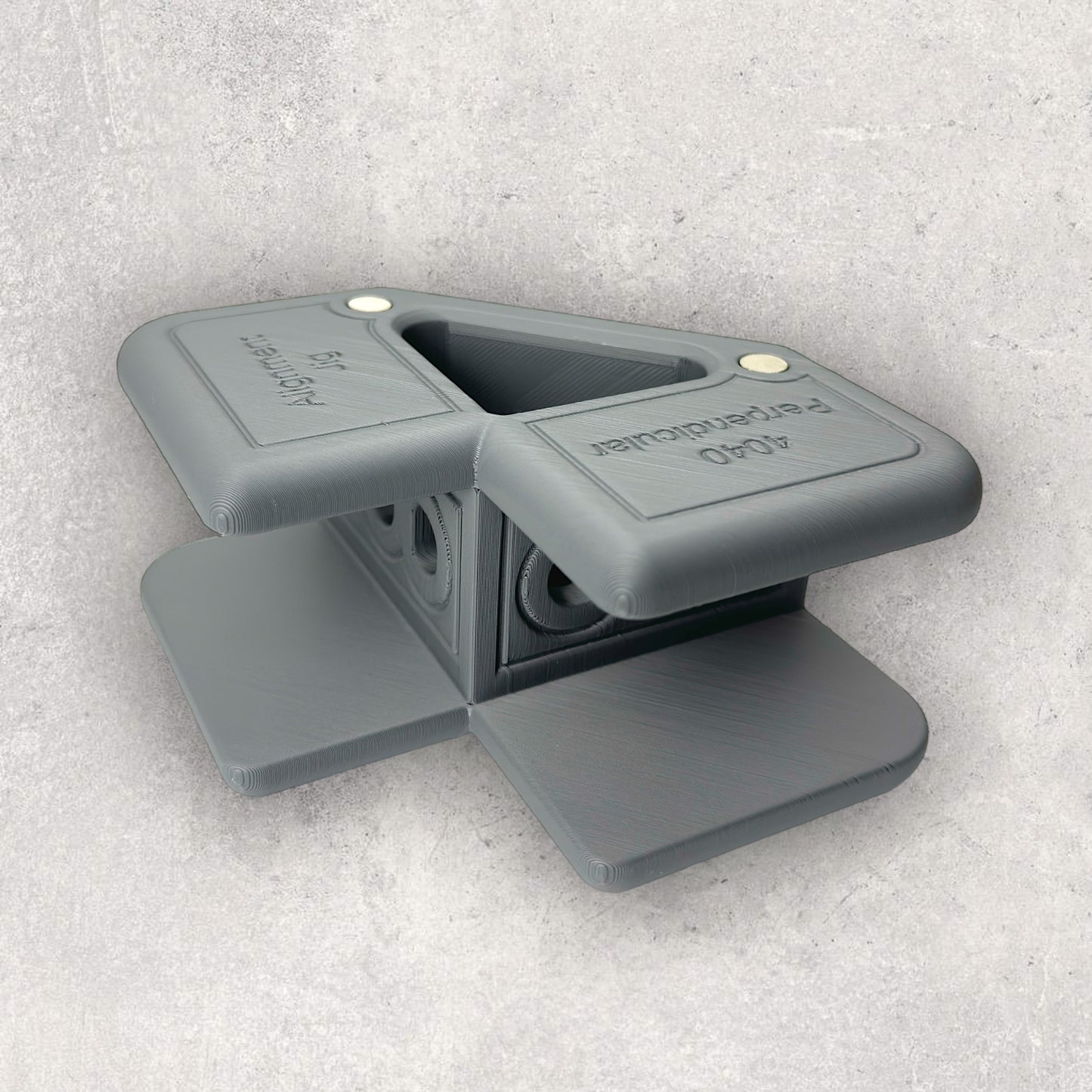

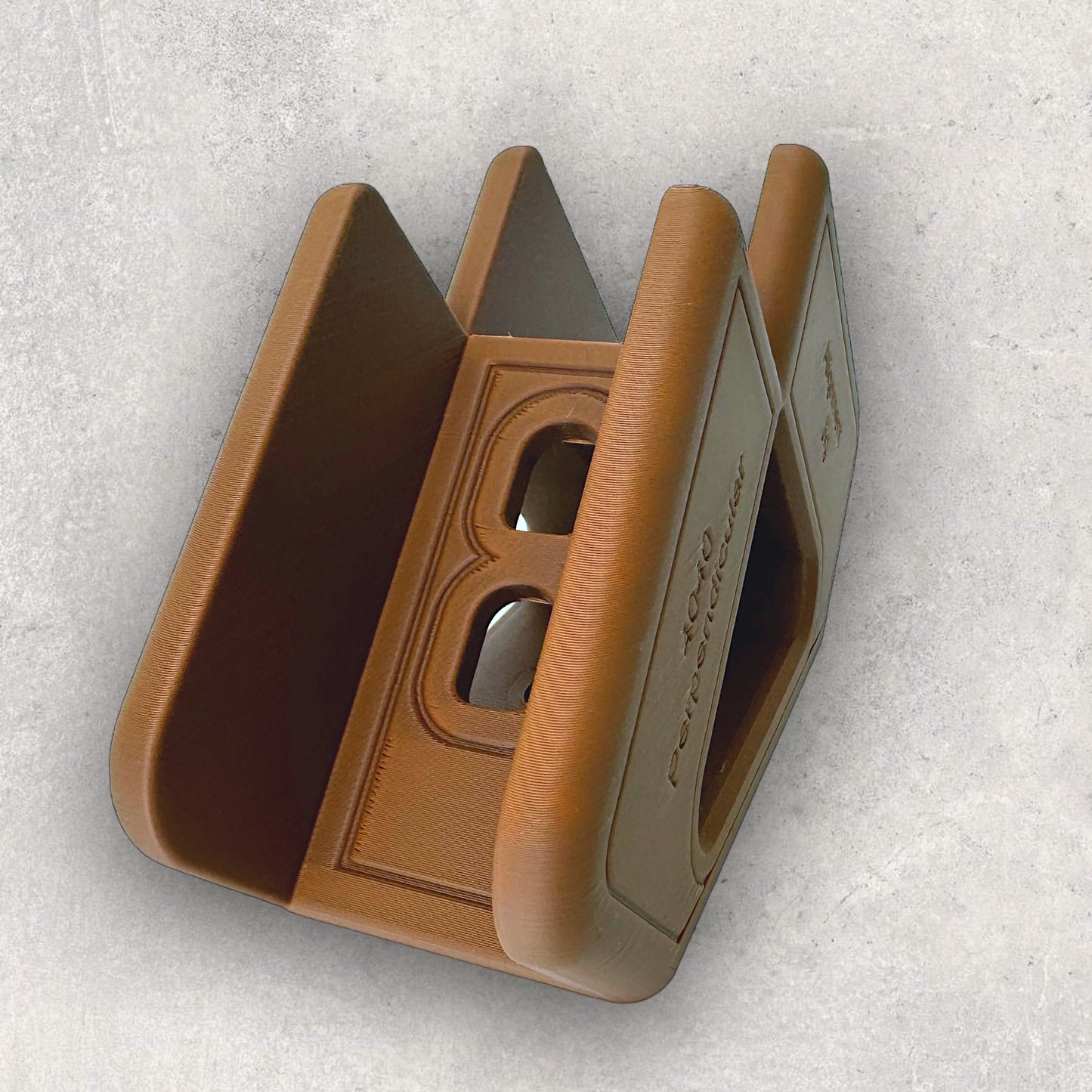

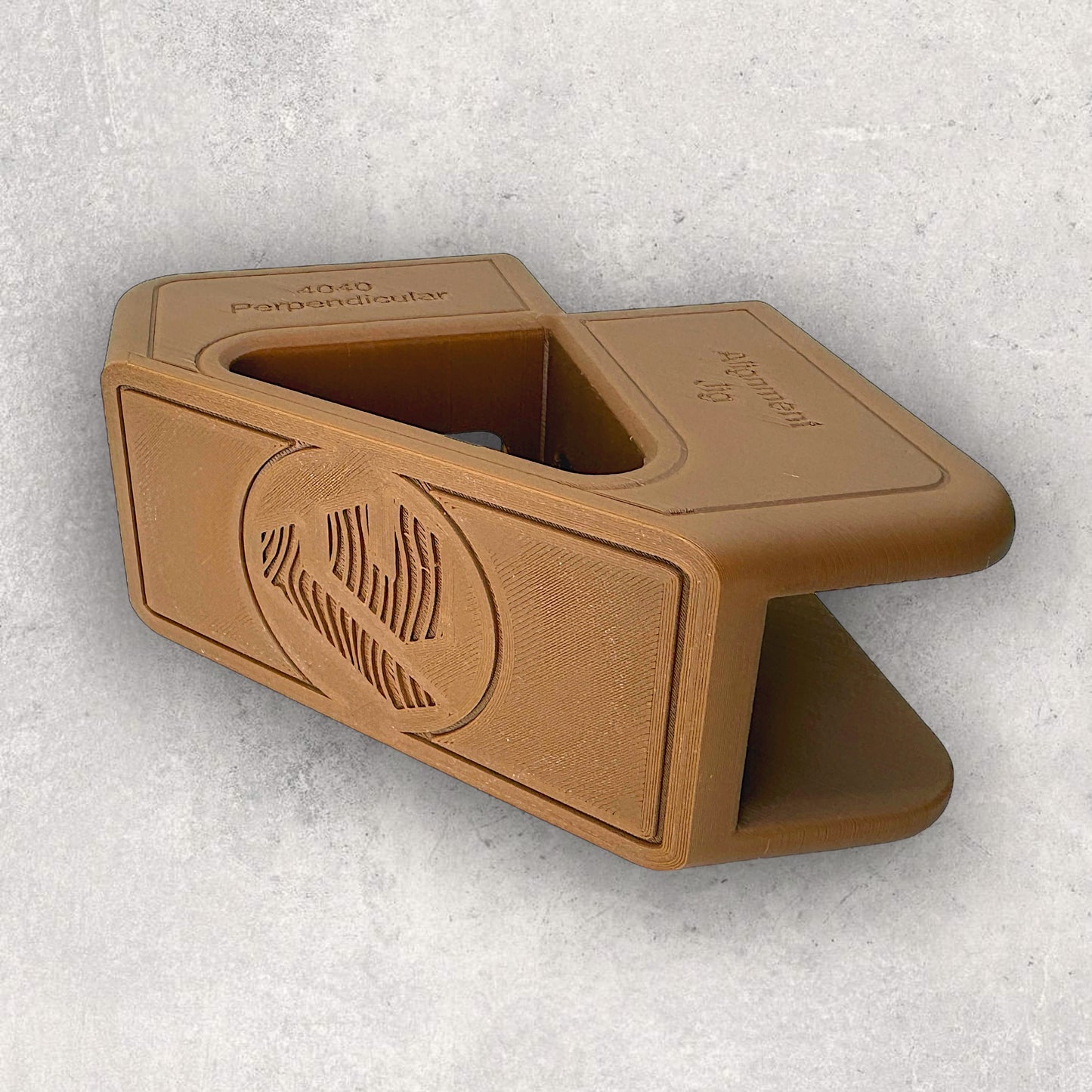

These jigs are meticulously designed and 3D modeled, with all fitting and hole tolerances keenly monitored. They are slowly and carefully printed one layer at a time, with each jig print taking over five hours, depending on the size of the jig.
With this precision alignment jig, you can consistently achieve perfectly aligned joints without the need for additional tools.
With this precision drilling jig, you can quickly, consistently, and repeatedly achieve accurate and perfectly aligned joints without the need for additional tools, saving you tremendous time and gaining immediate accuracy in your work.
All our Precision Jigs come with Free International Shipping.
Orders will be printed, assembled, and packed directly from our Singapore office. Global shipping typically takes 8 to 18 business days, as per the estimates provided by our local postal service.
