What this jig does

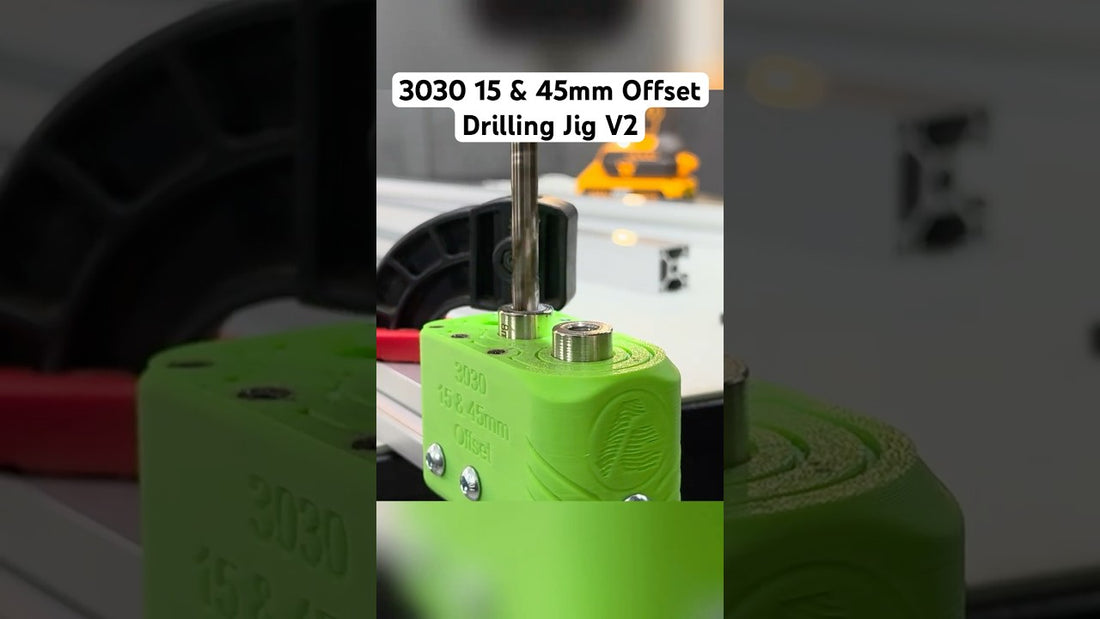

It lets you drill two holes precisely and repeatably, with their centres 15mm and 45mm from the edge of the extrusion — the positions needed for a blind joint. Blind joints remove the reliance on external brackets, so the joinery looks cleaner without giving up strength. Designed and 3D-printed by The Aluminum Carpenter for all 30 series extrusion; bolts and nuts included so it works straight out of the box.
What the video shows
Clamping the jig to the extrusion
Drilling both holes without measuring or marking
Repeating the operation on the next piece with identical results
