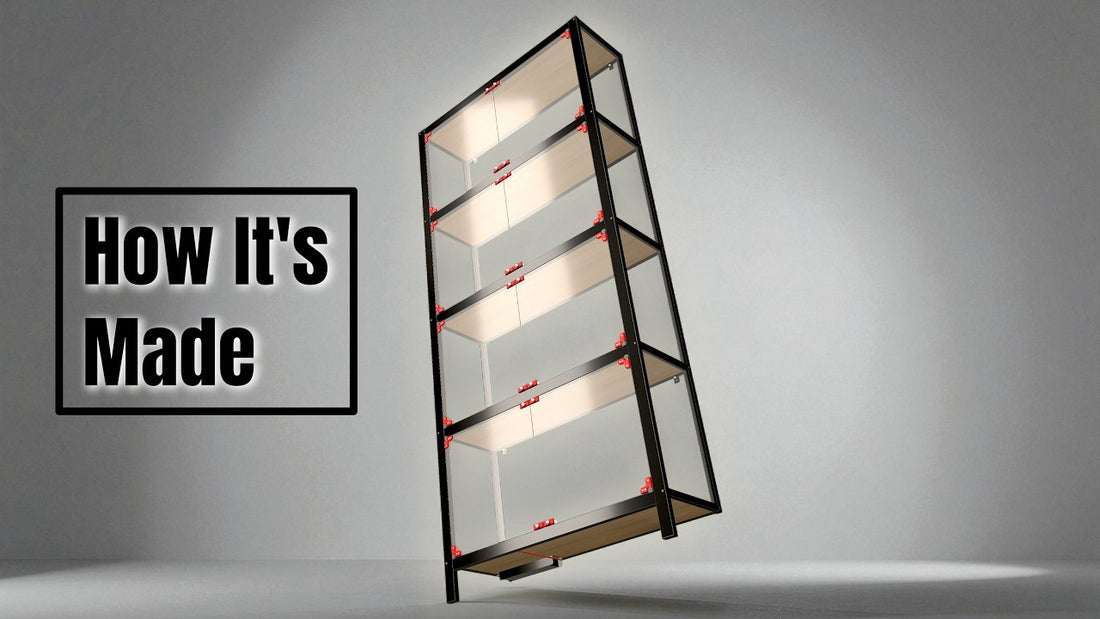

Aluminum Extrusion Display Cabinet — LED Lights, Acrylic Panels & Magnetic Hinges (Build Video)
Share
What this build is
A display cabinet built to showcase what is inside it and the structure itself. Aluminum extrusion, laminated wood, custom-cut acrylic panels, 3D-printed parts designed for this build, magnetic components and an integrated LED system come together through our Material Fusion approach, with the frame concealed wherever it can be.
What the video covers
- Building the tall 2020 extrusion frame with offset and freehand jigs
- Fitting the acrylic panels and the 3D-printed magnetic hinges
- Running the LED lighting inside the structure
- The finished cabinet lit up
Key details
- Frame: 2020 and 2040 series aluminum extrusion
- Size: 2042 × 900 × 305 mm · 952 parts in the model
Build it yourself
Display Cabinet plans (Download) →
The printed hinges and parts on their own: Display Cabinet 3D Printed Parts · All jigs for this build: Display Cabinet jig bundle
Jigs used in this build
- 2020 10mm Offset · 2020 10 & 30mm Offset
- 2020 Freehand · 2020 Twin Freehand
- 2040 10mm Offset · 2040 Bi Freehand
