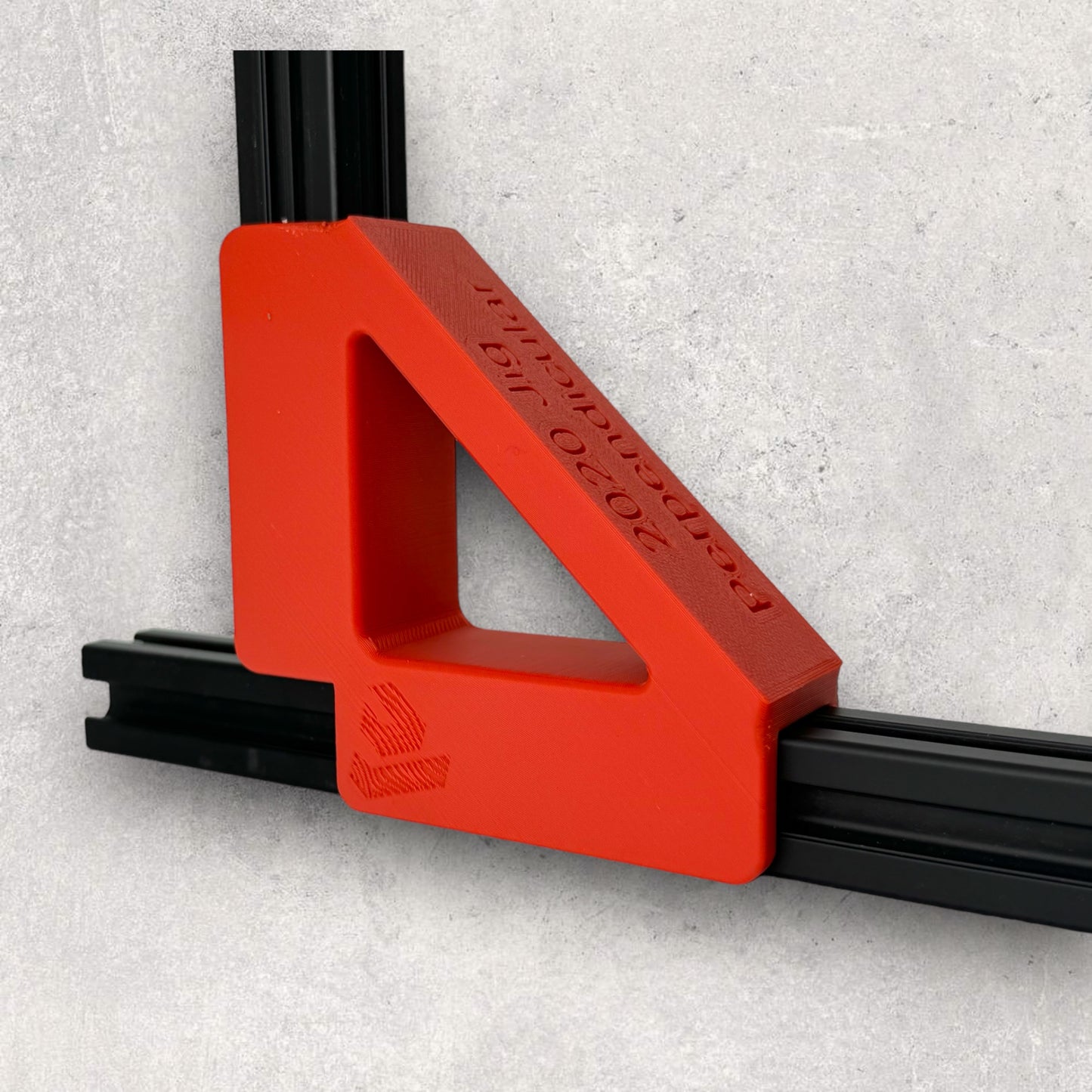

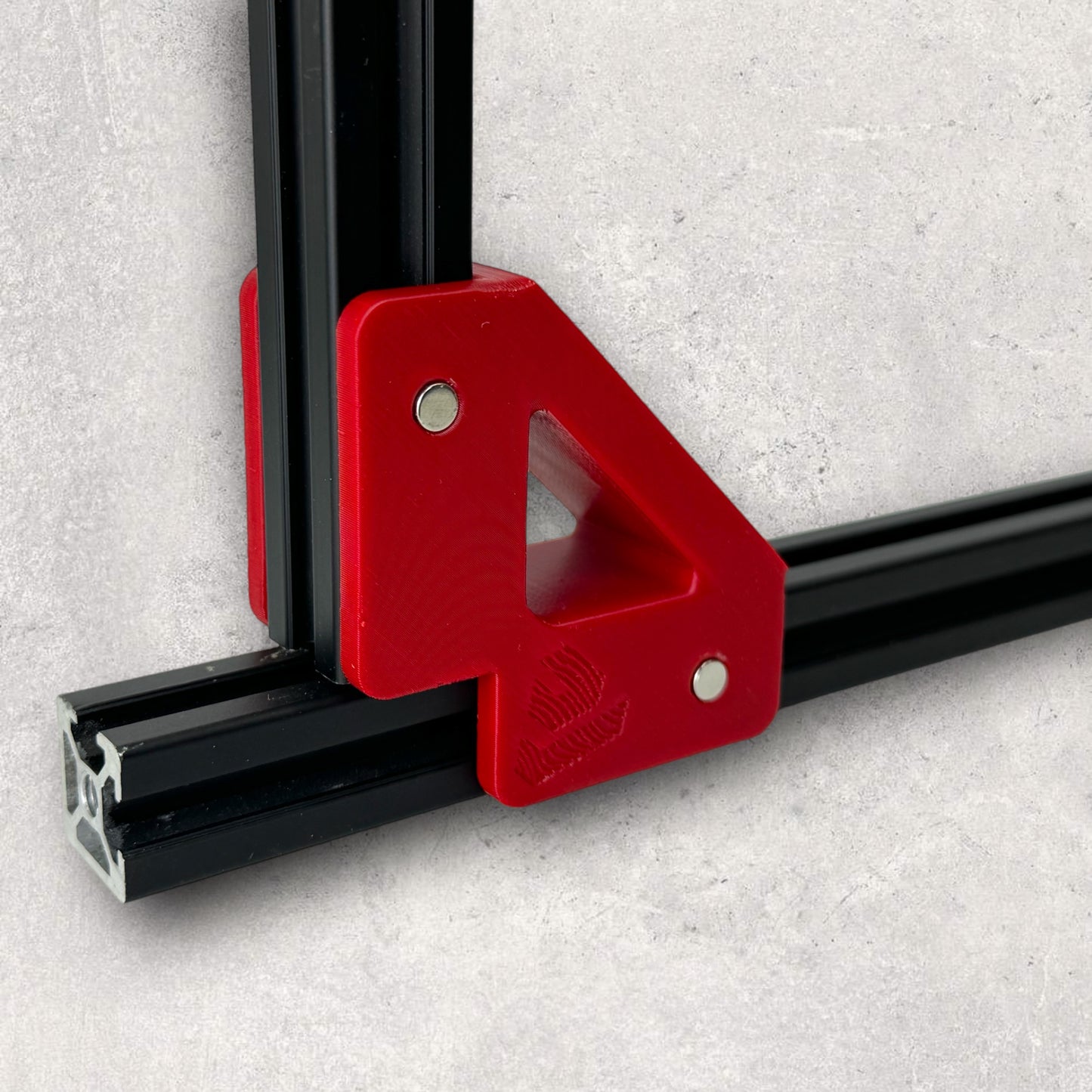

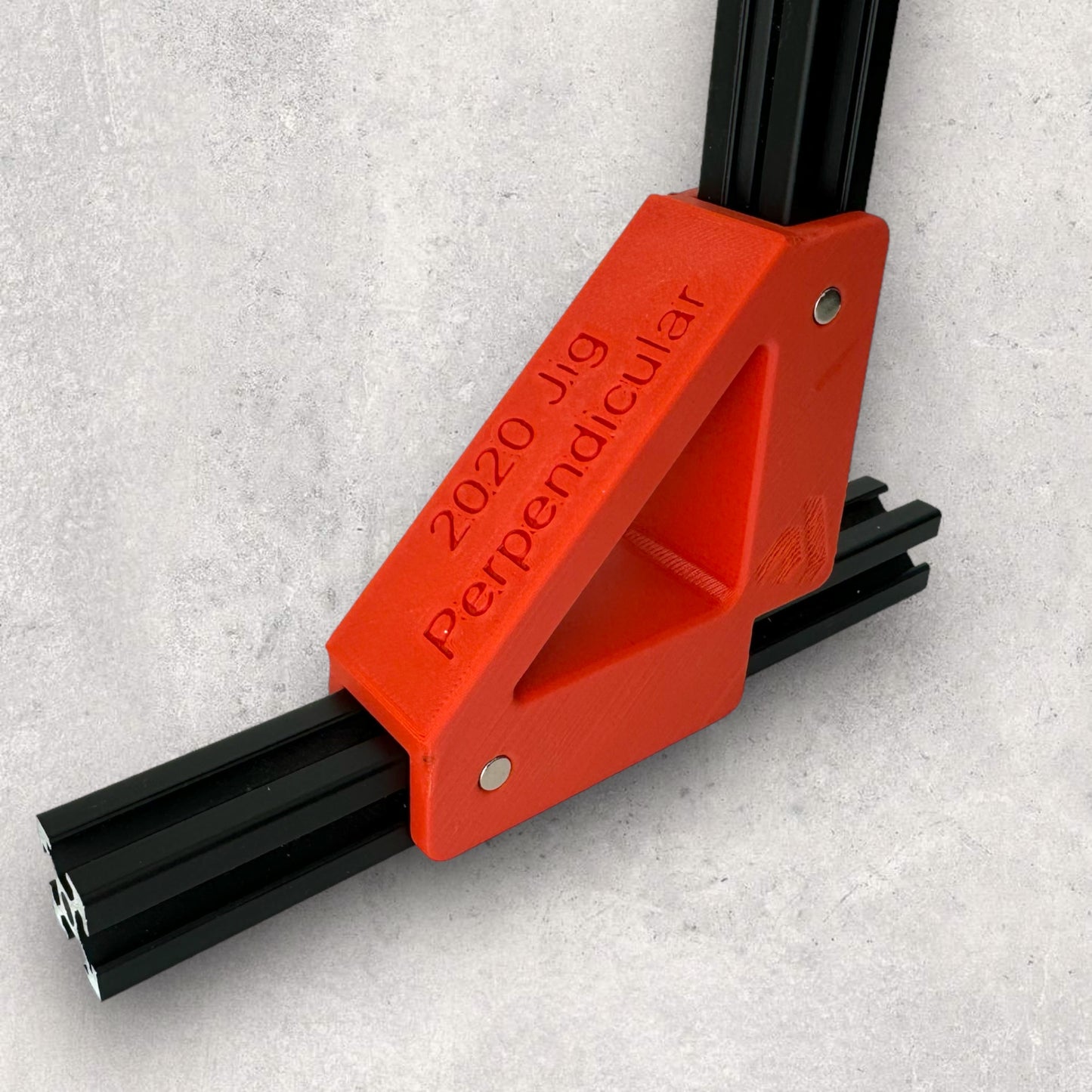

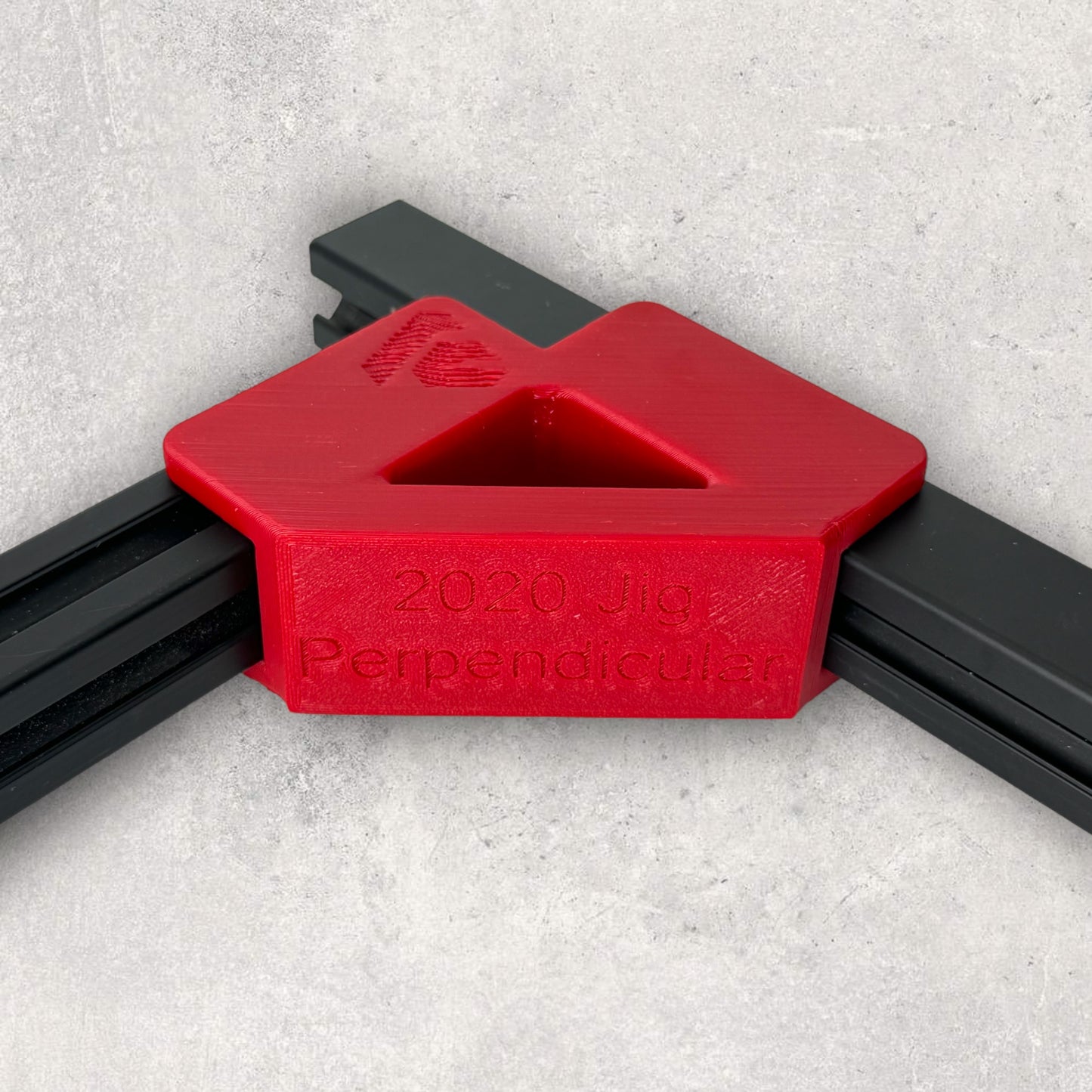

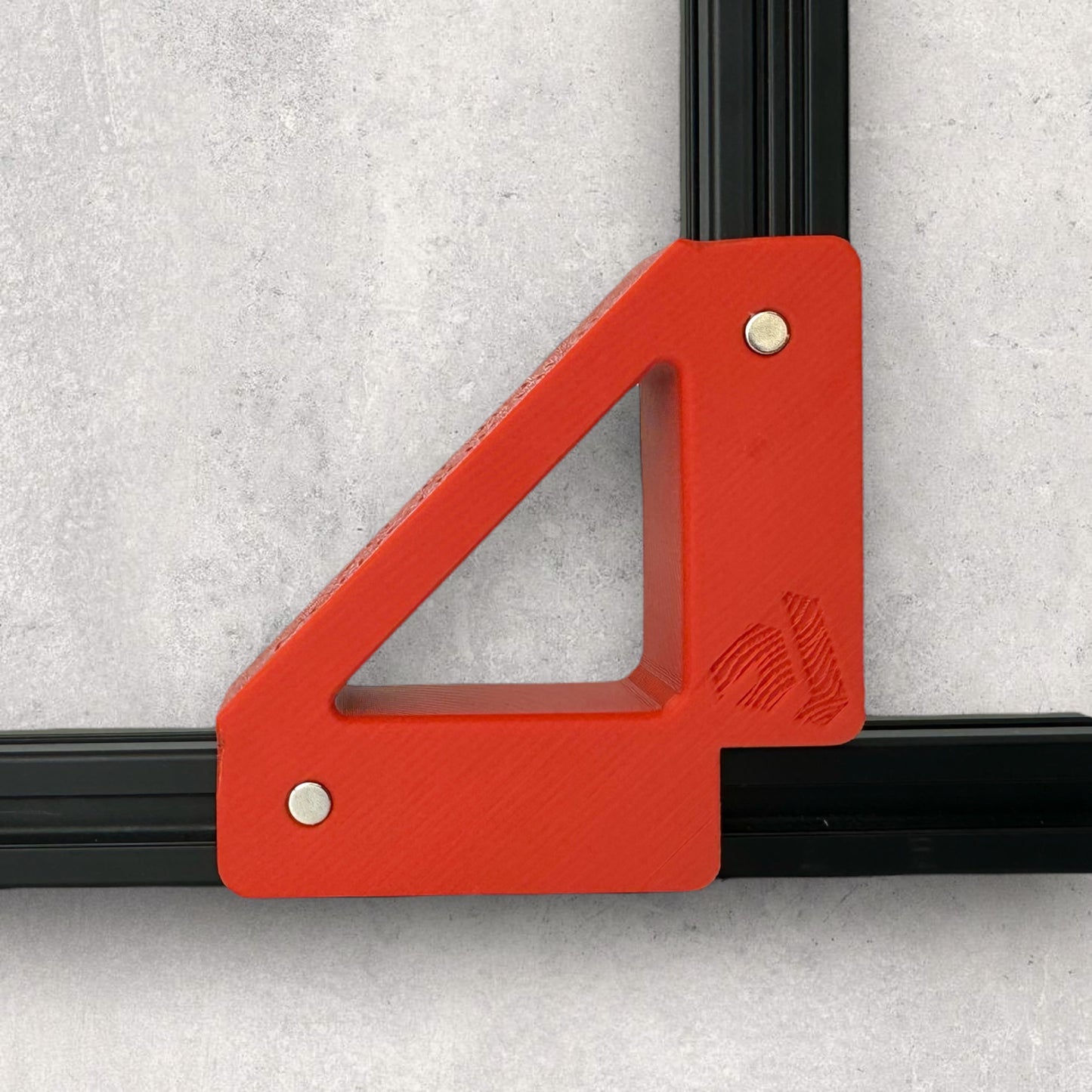

This alignment jig enables precise alignment of two aluminum extrusions perpendicular to each other, facilitating the creation of a flush and accurate blind joint without requiring additional flushing tools. This feature saves considerable time, particularly for repeatable tasks.

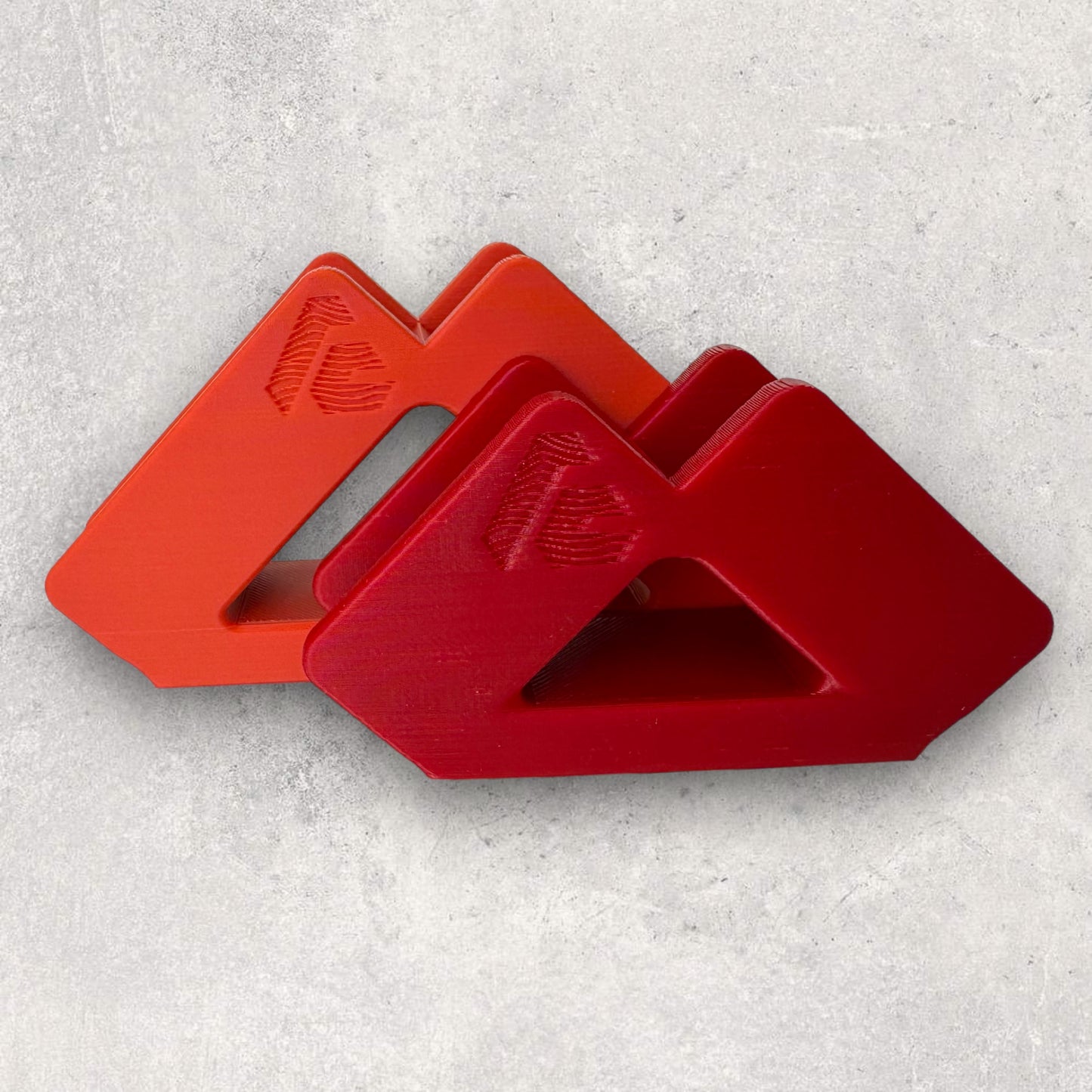

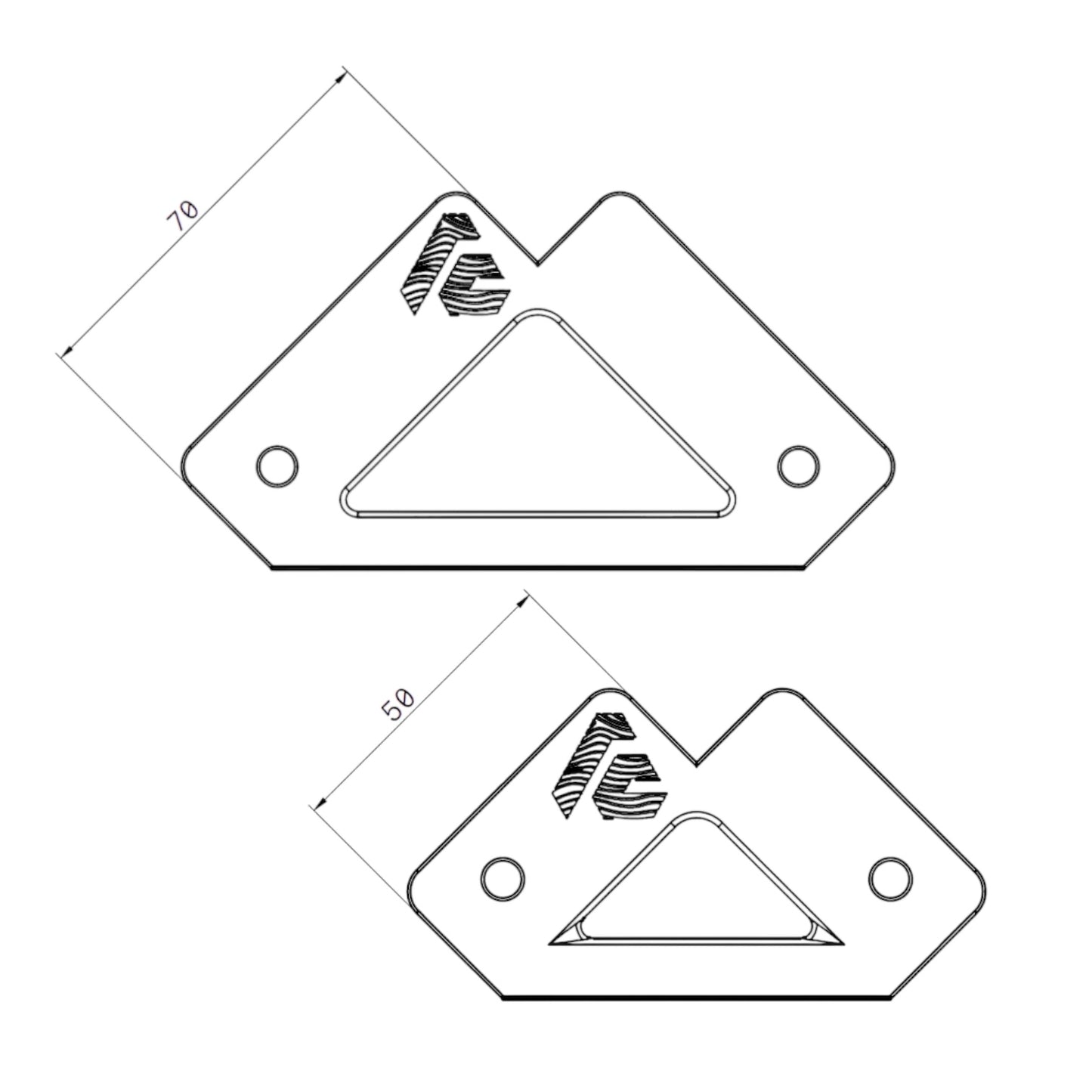

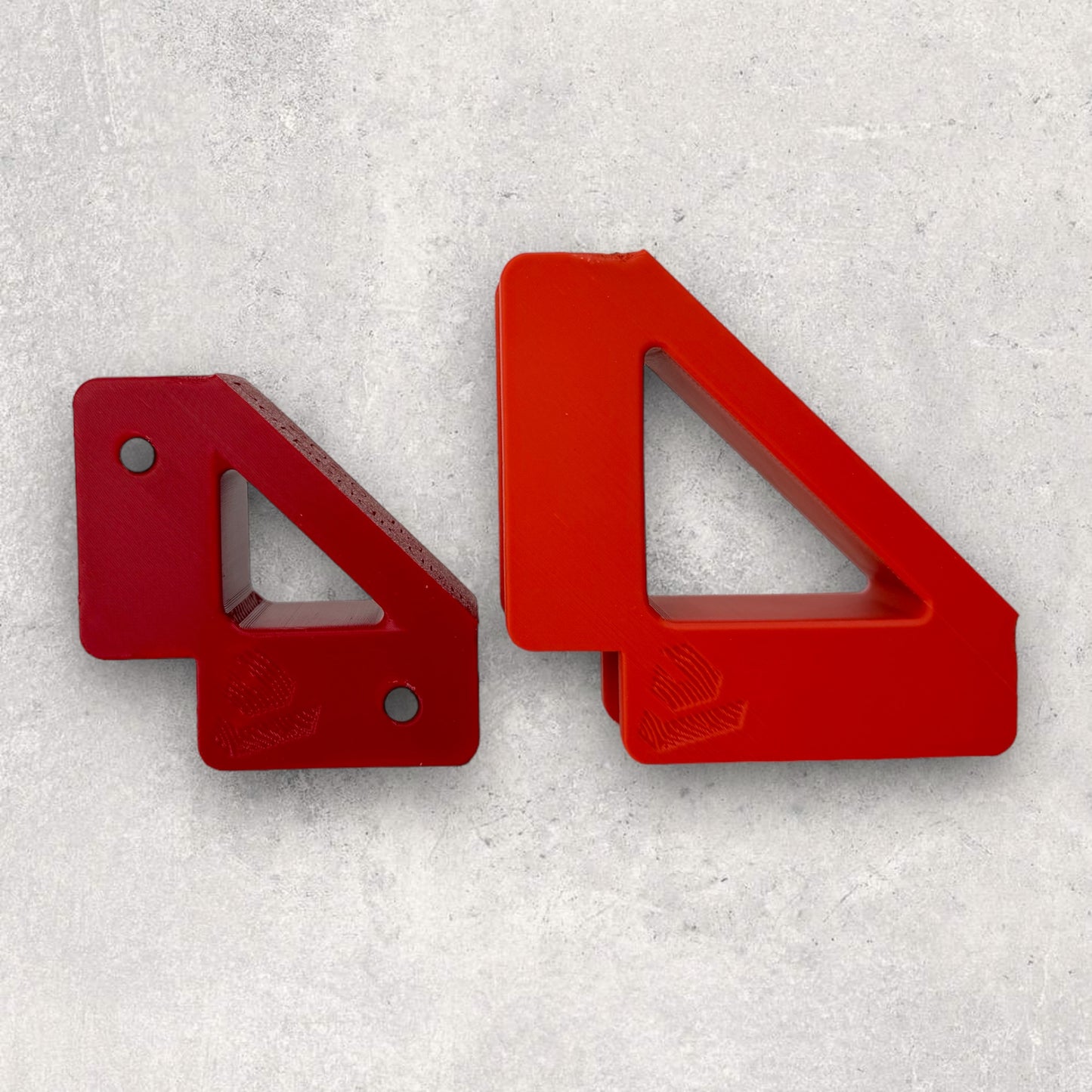

This jig is available in two sizes: 50mm for smaller projects and to fit in tiny corners, and 70mm for larger projects.

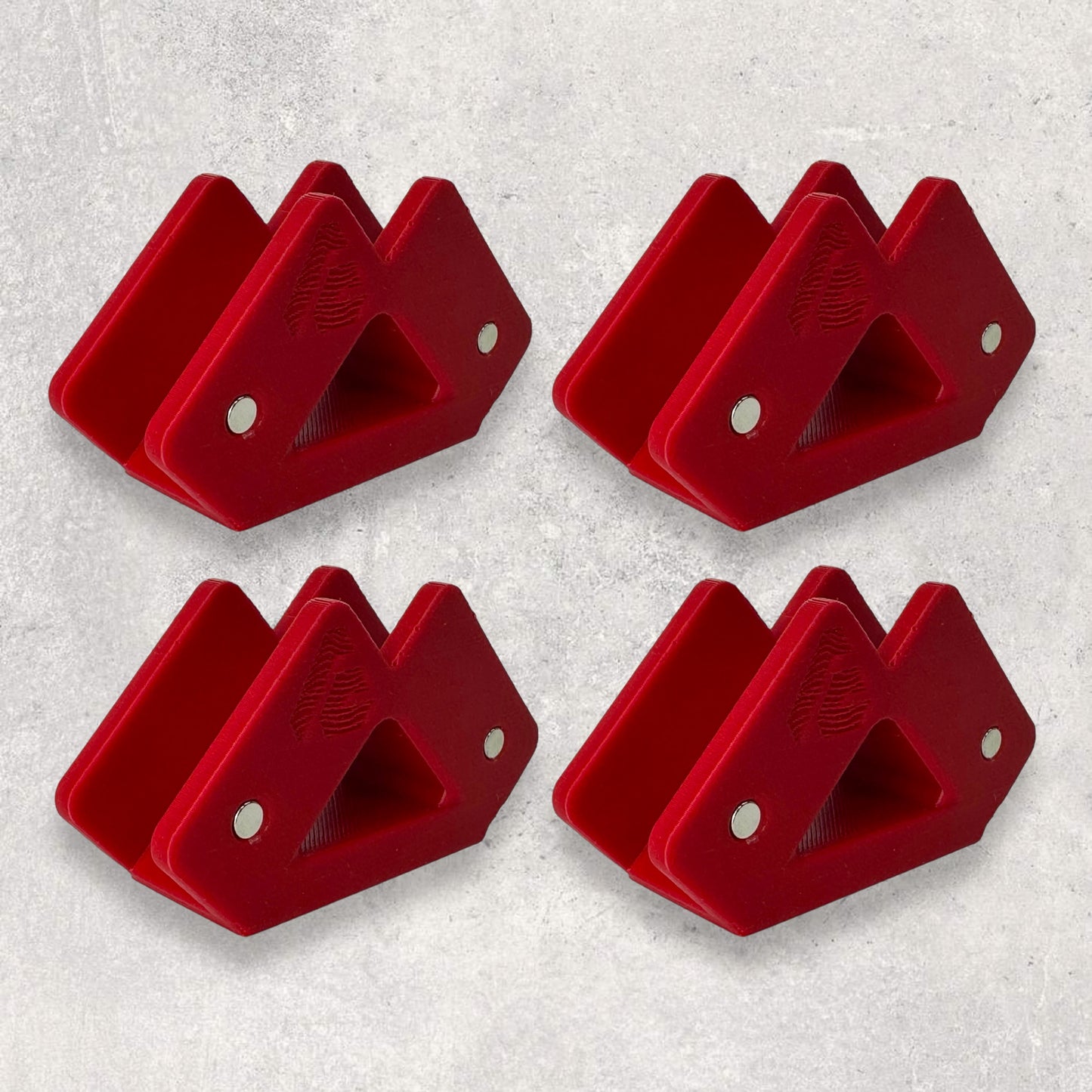

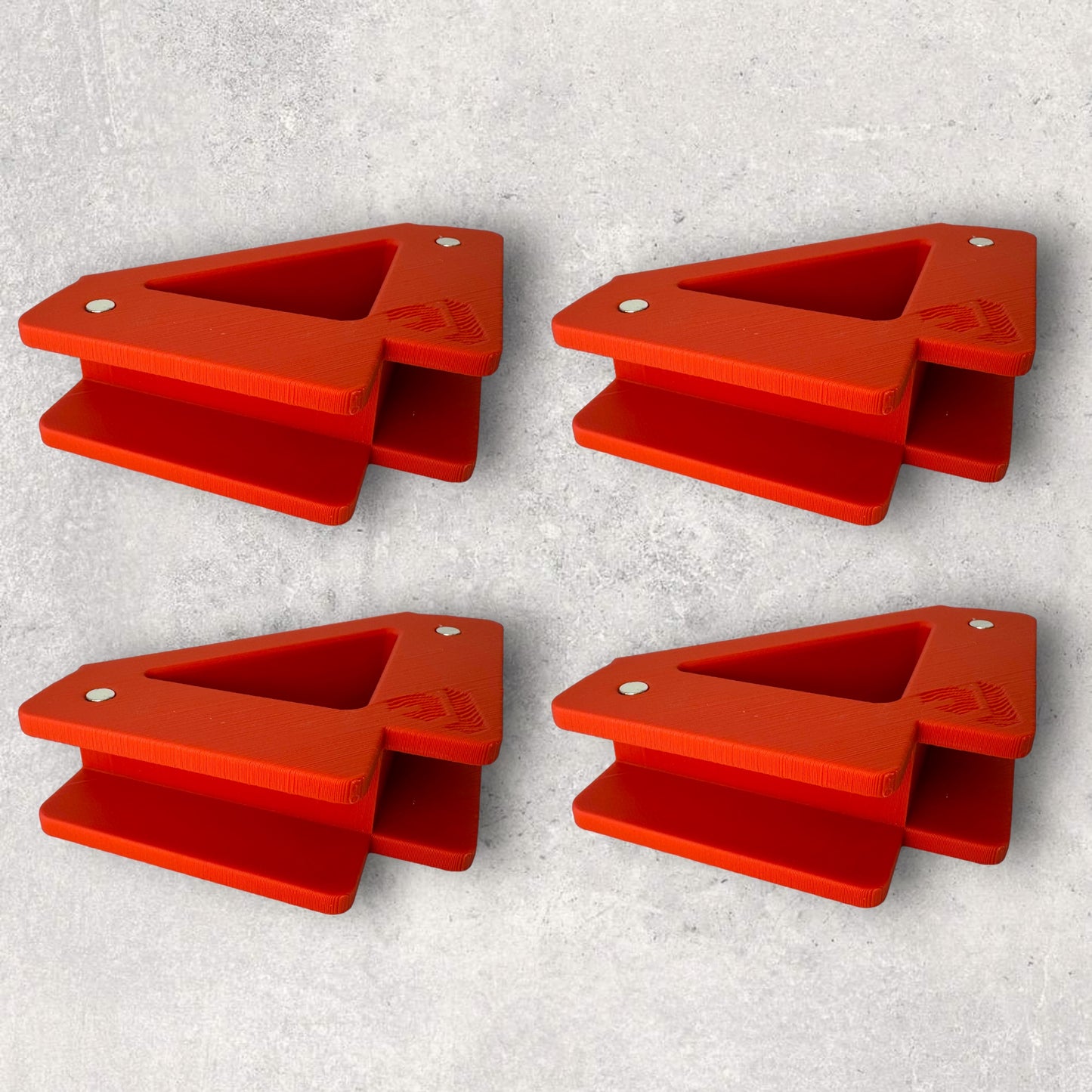

It is advisable to have a minimum of four of these jigs on hand for any project.

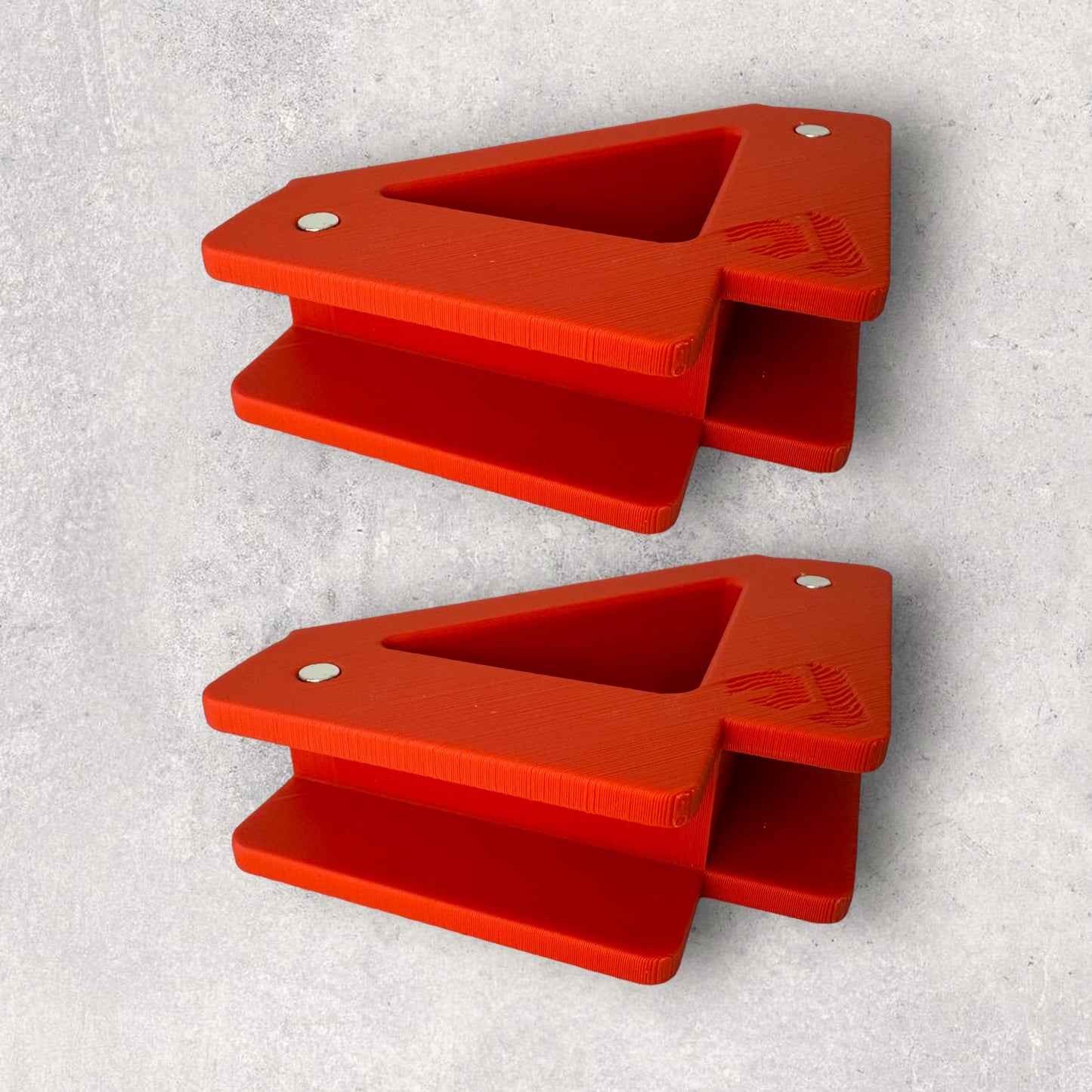

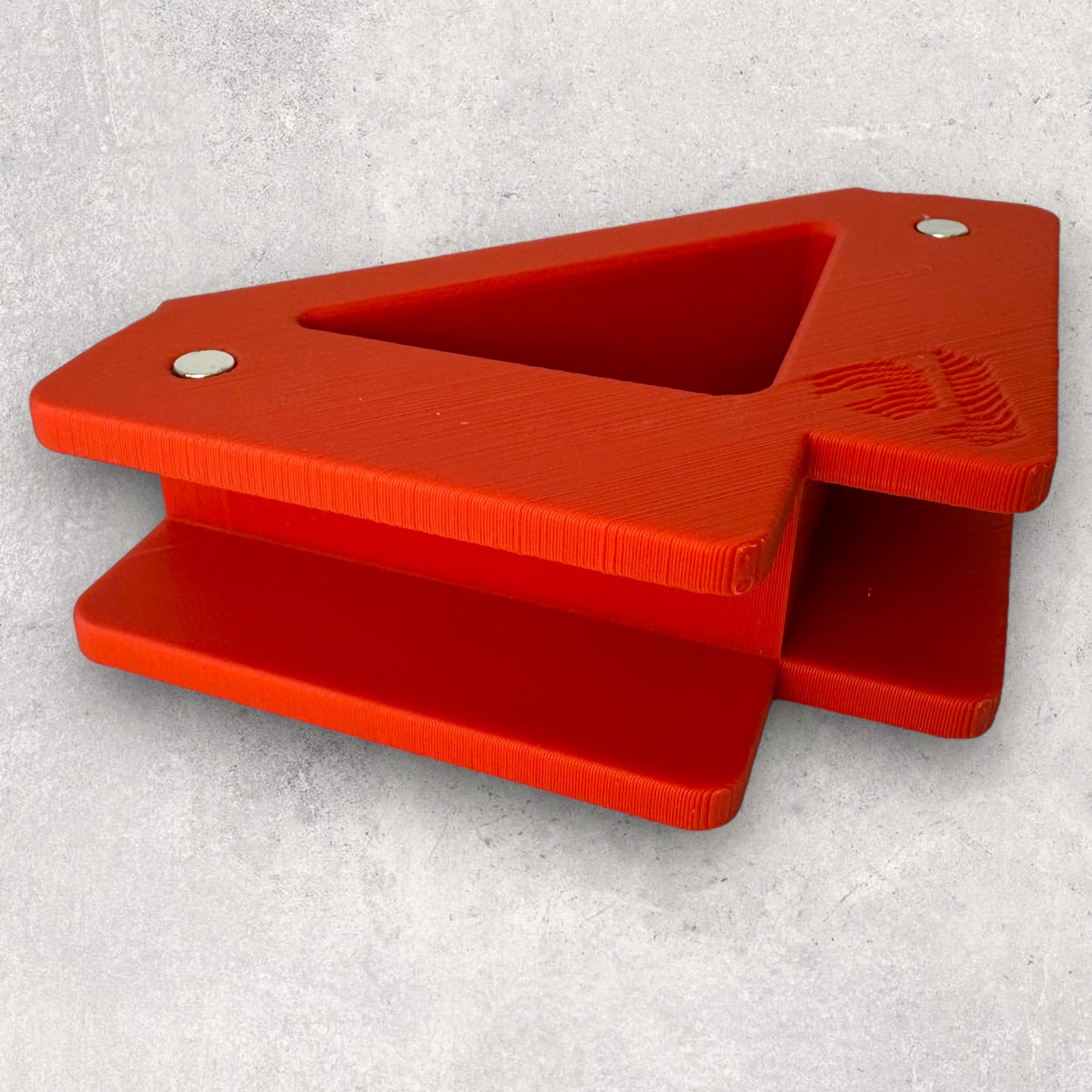

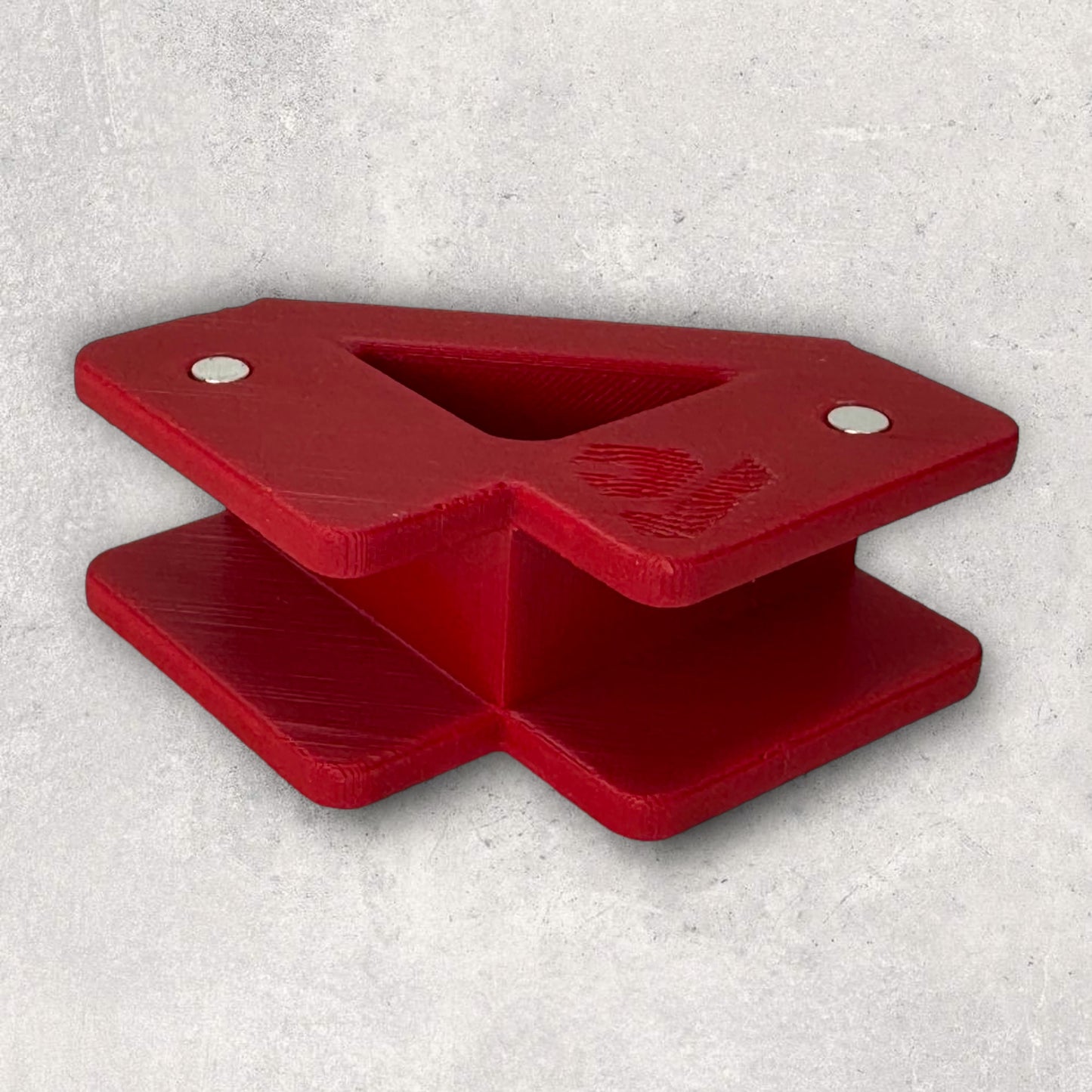

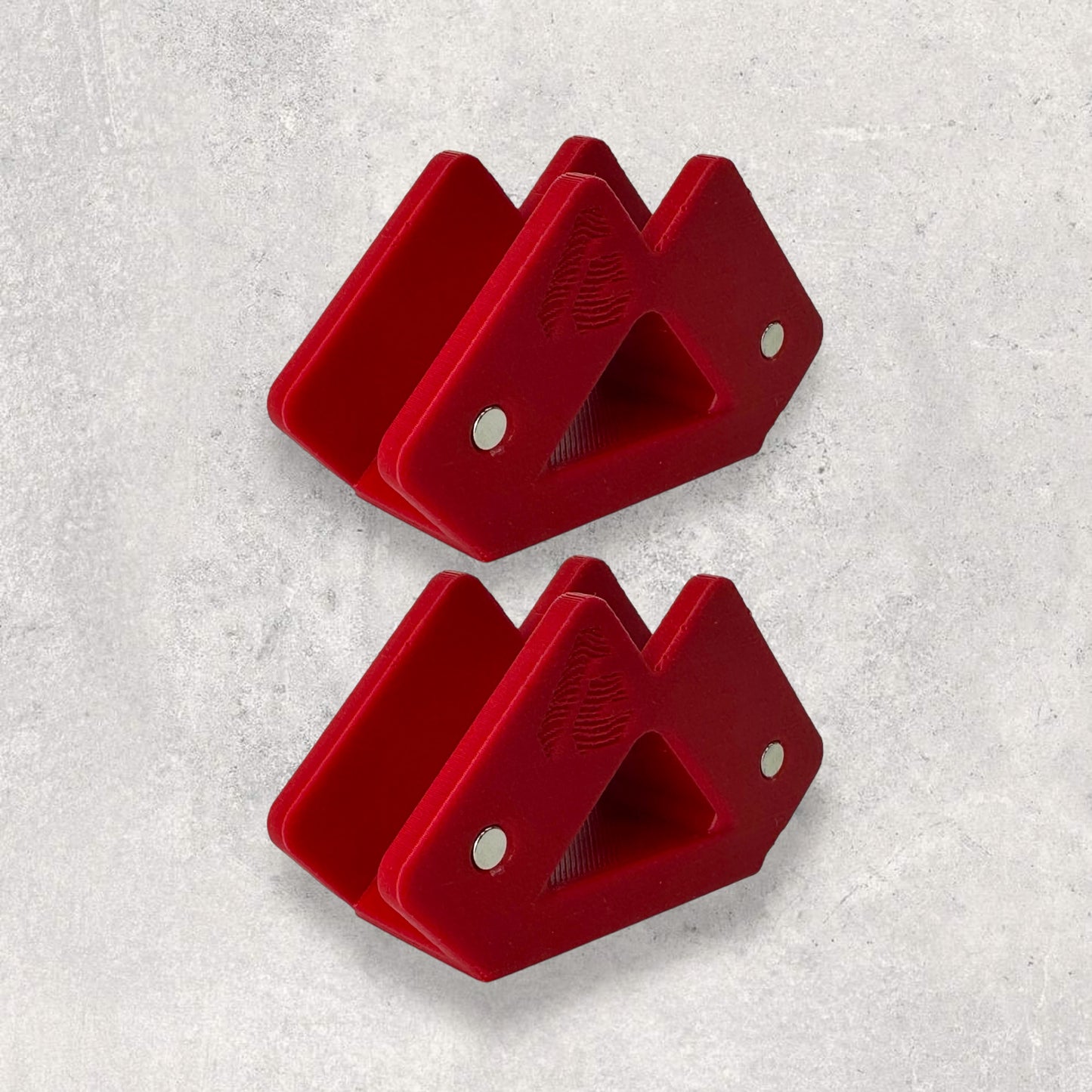

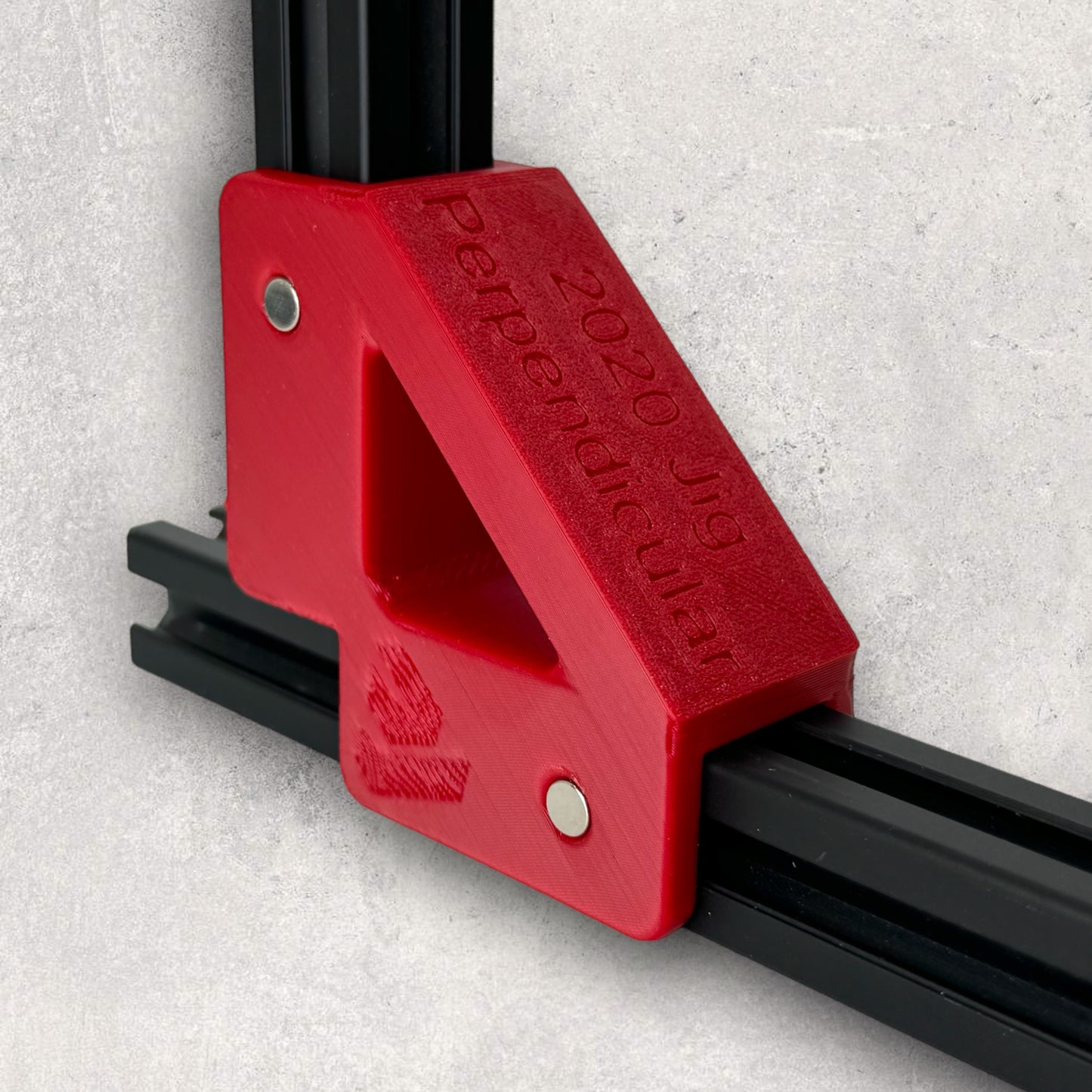

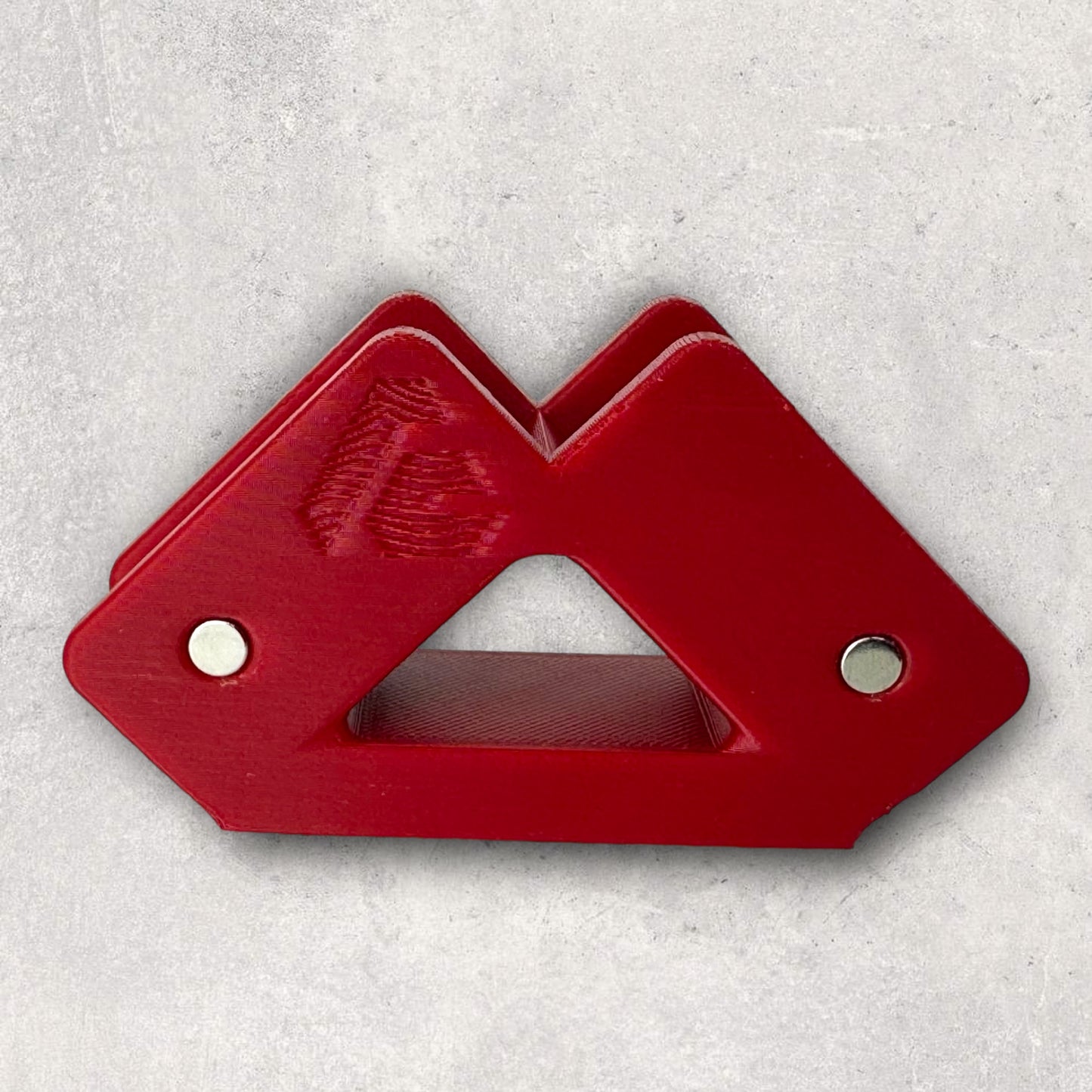

Equipped with 2 magnets, this attachment easily adheres to any magnetic surface, providing an organized storage solution.

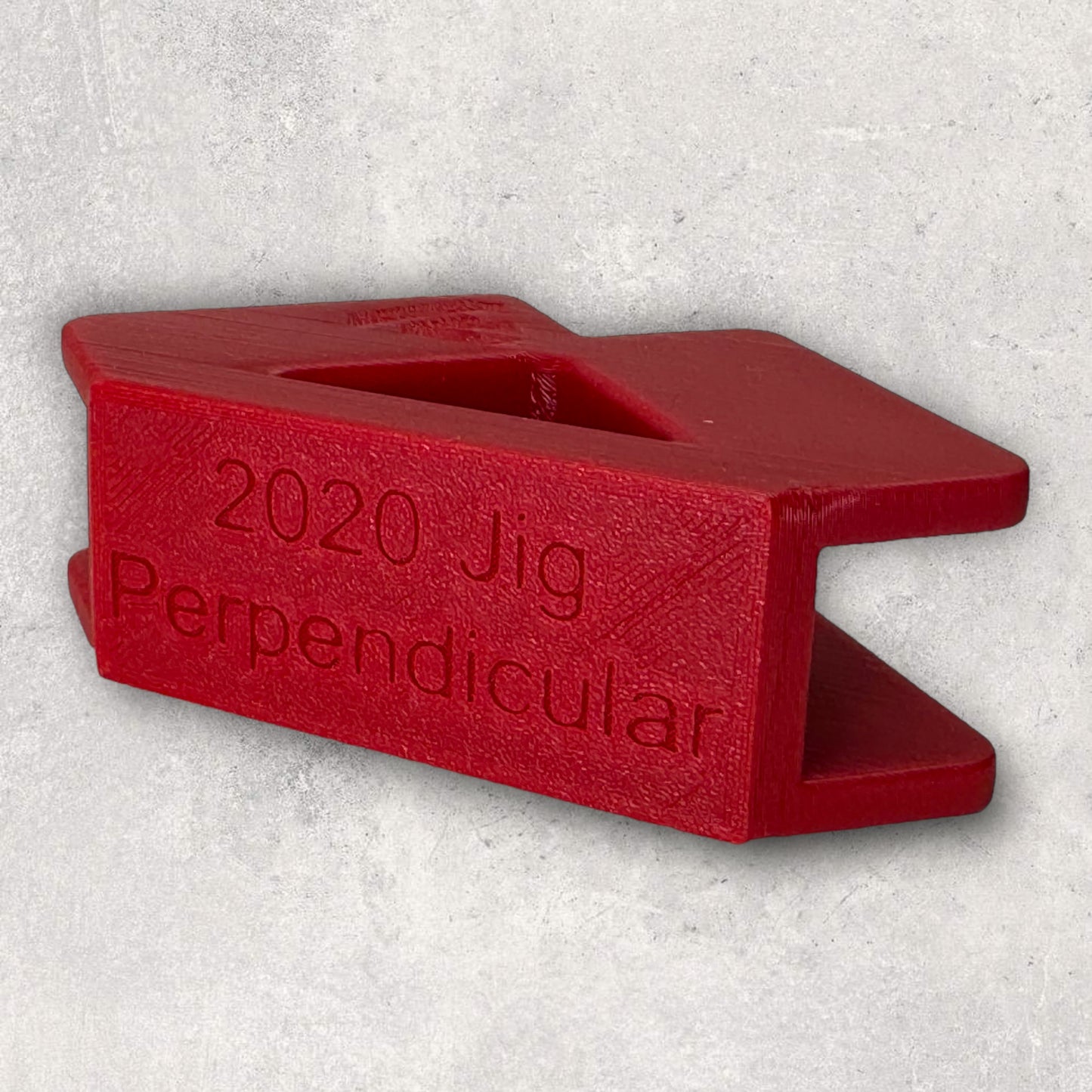

This is a high quality 3d printed precision 8020 aluminum extrusion alignment jig designed and produced by 'The Aluminum Carpenter' to work with all 20 series aluminum extrusion.
With this precision alignment jig, you can consistently achieve perfectly aligned joints without the need for additional tools.
All our Precision Jigs come with Free International Shipping.
Orders will be printed, assembled, and packed directly from our Singapore office. Global shipping typically takes 8 to 18 business days, as per the estimates provided by our local postal service.
This is Version 1 of the jig, which will be discontinued once sold out. Please proceed to the improved Version 2 of the jig.
