Aluminum Extrusion Precision Alignment Jig

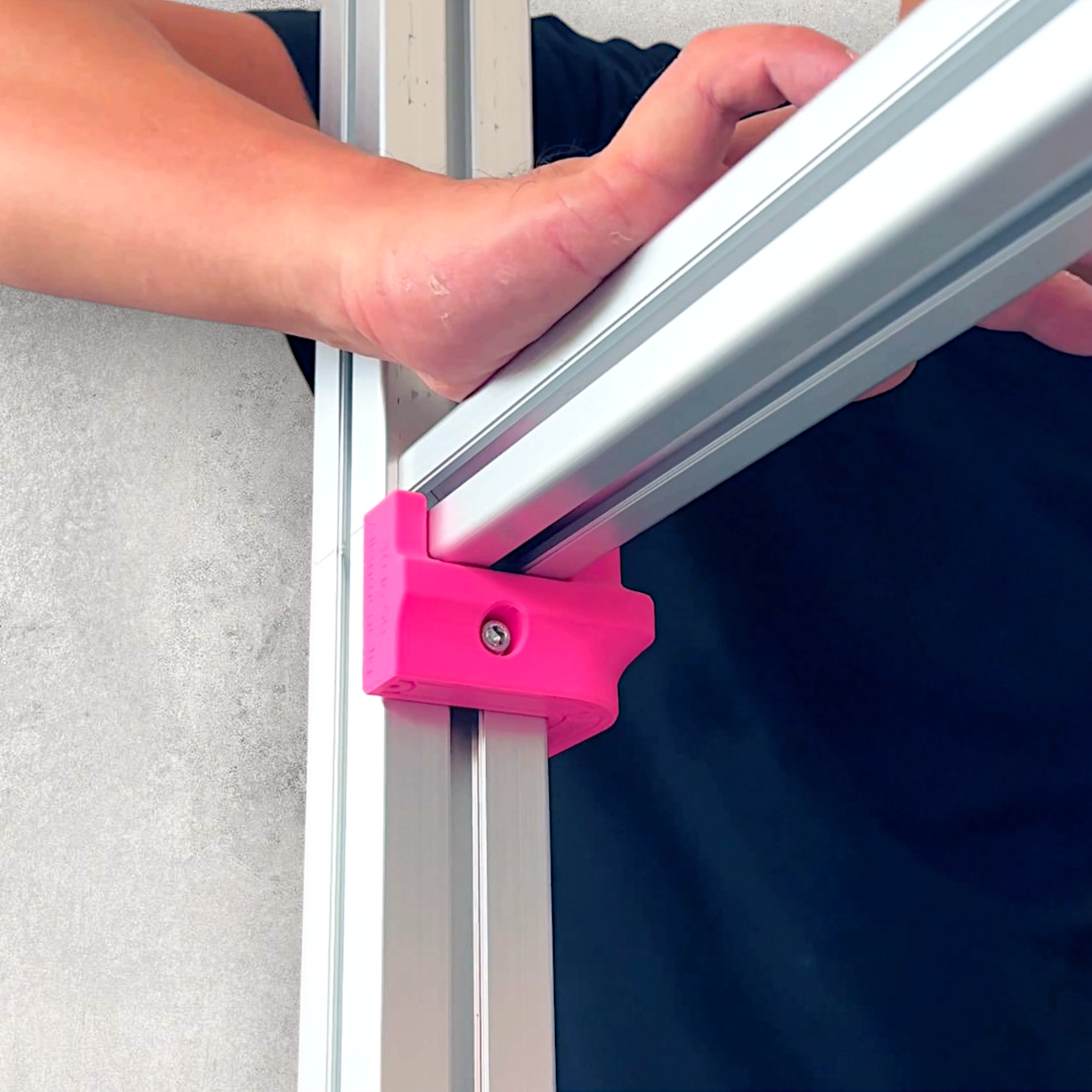

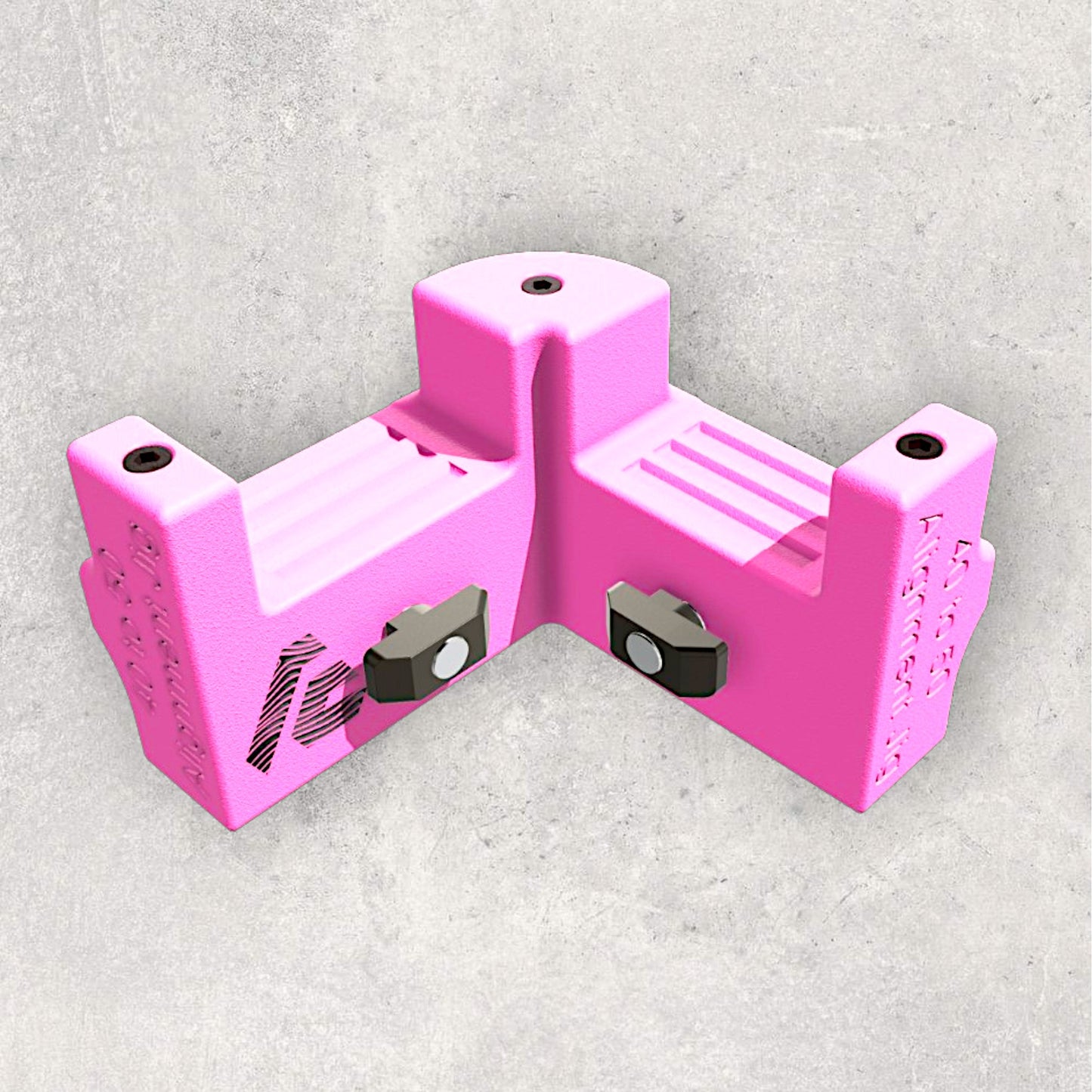

This alignment jig helps position a 40 Series aluminum extrusion perpendicular to a 5050 aluminum extrusion, creating a precise 5mm offset on both sides. It accurately centers the profile without the need for marked lines or measurements, holding it securely in place while you apply the appropriate fasteners.

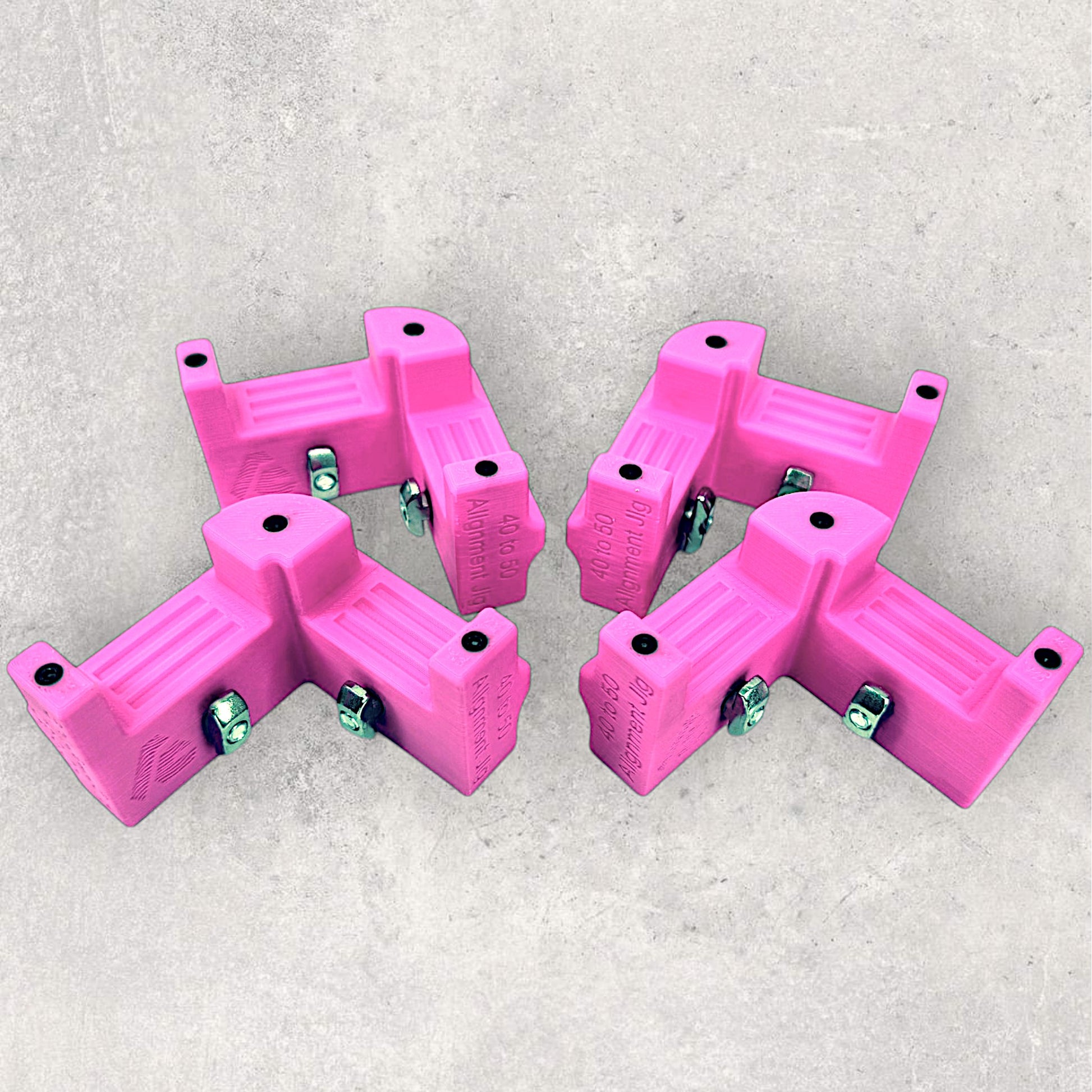

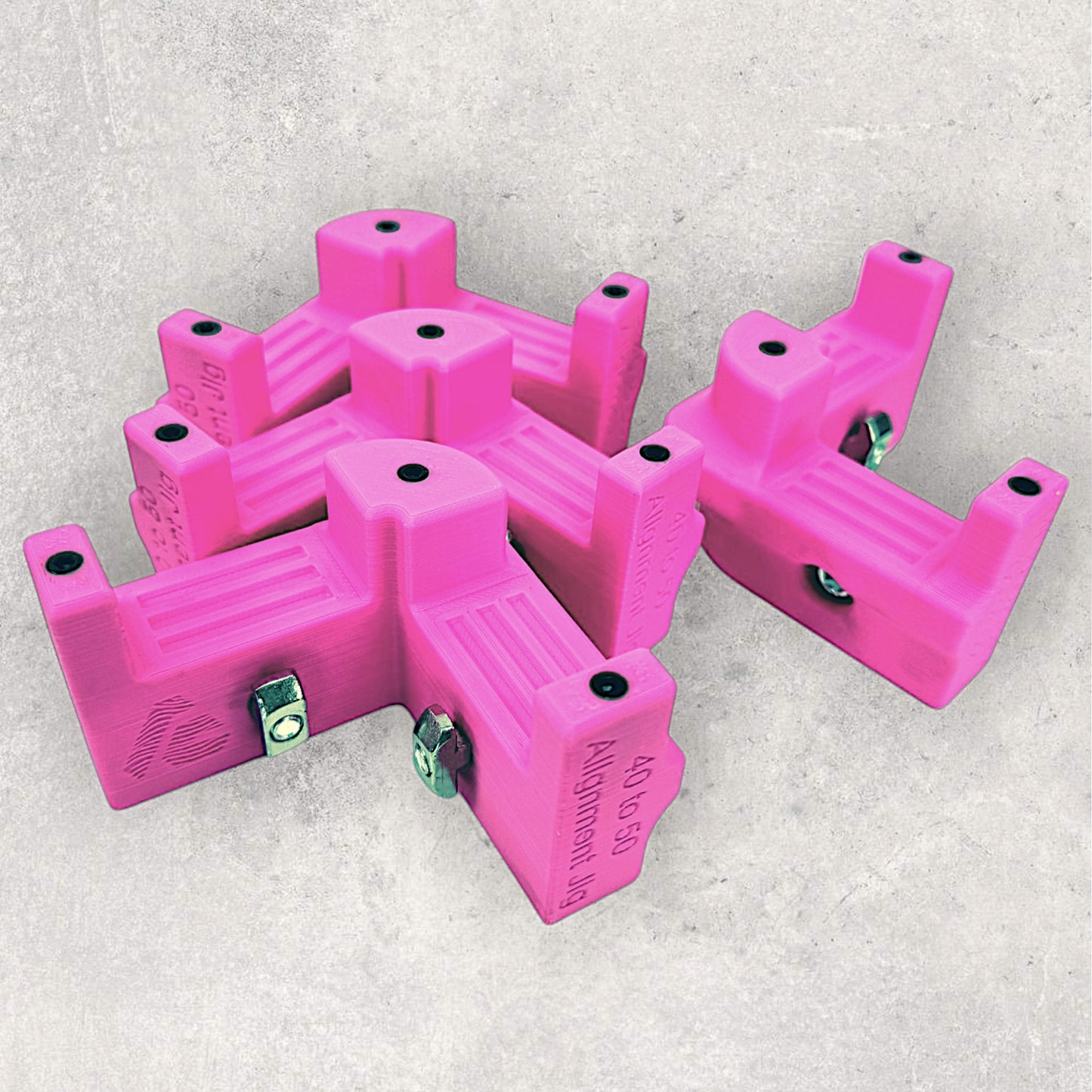

Designed for solo use, this jig eliminates the need for assistance when securing the joinery. For best results, we recommend using four jigs per project to ensure all four corners remain securely positioned while fasteners are applied. Alignment jigs should only be removed once all corners are properly secured.

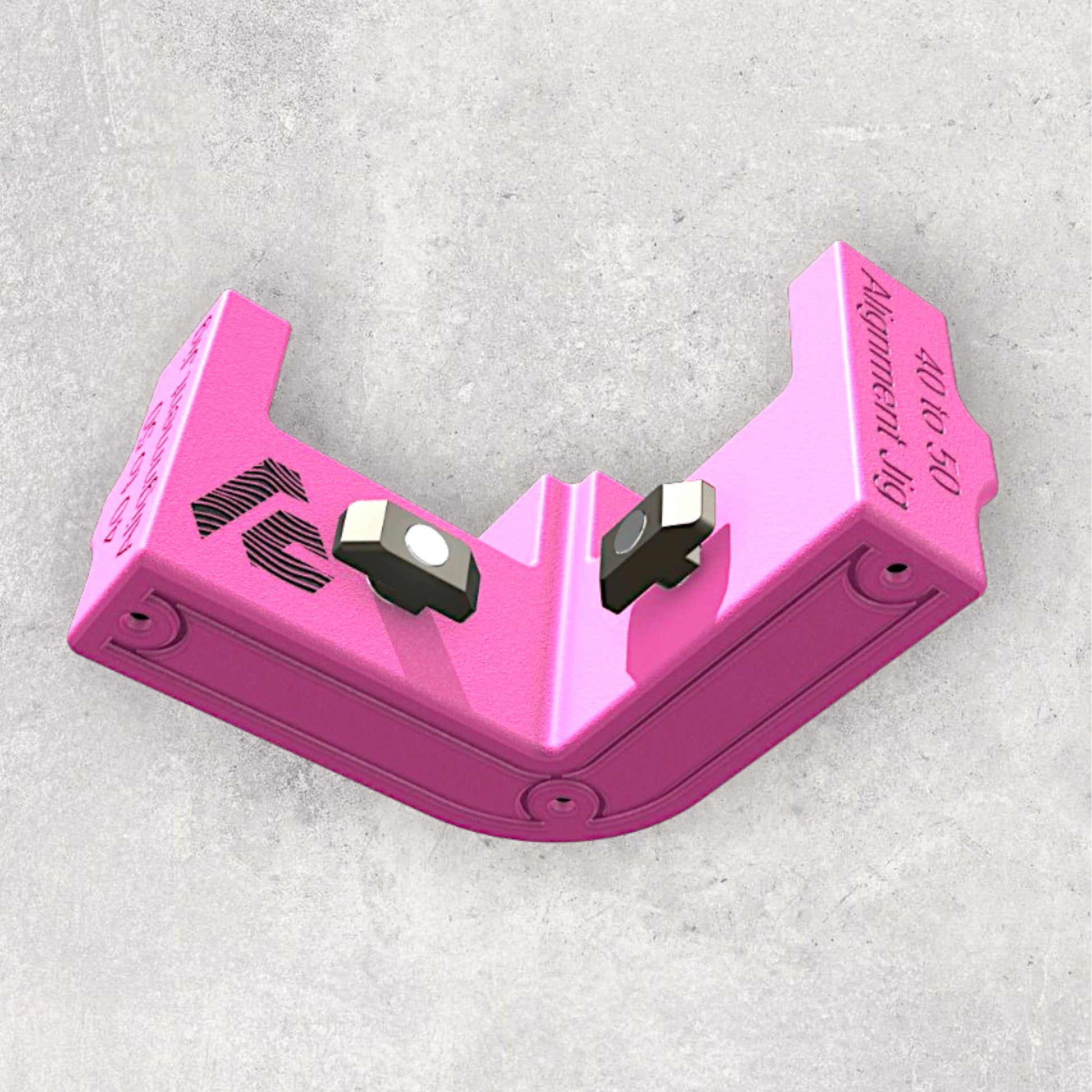

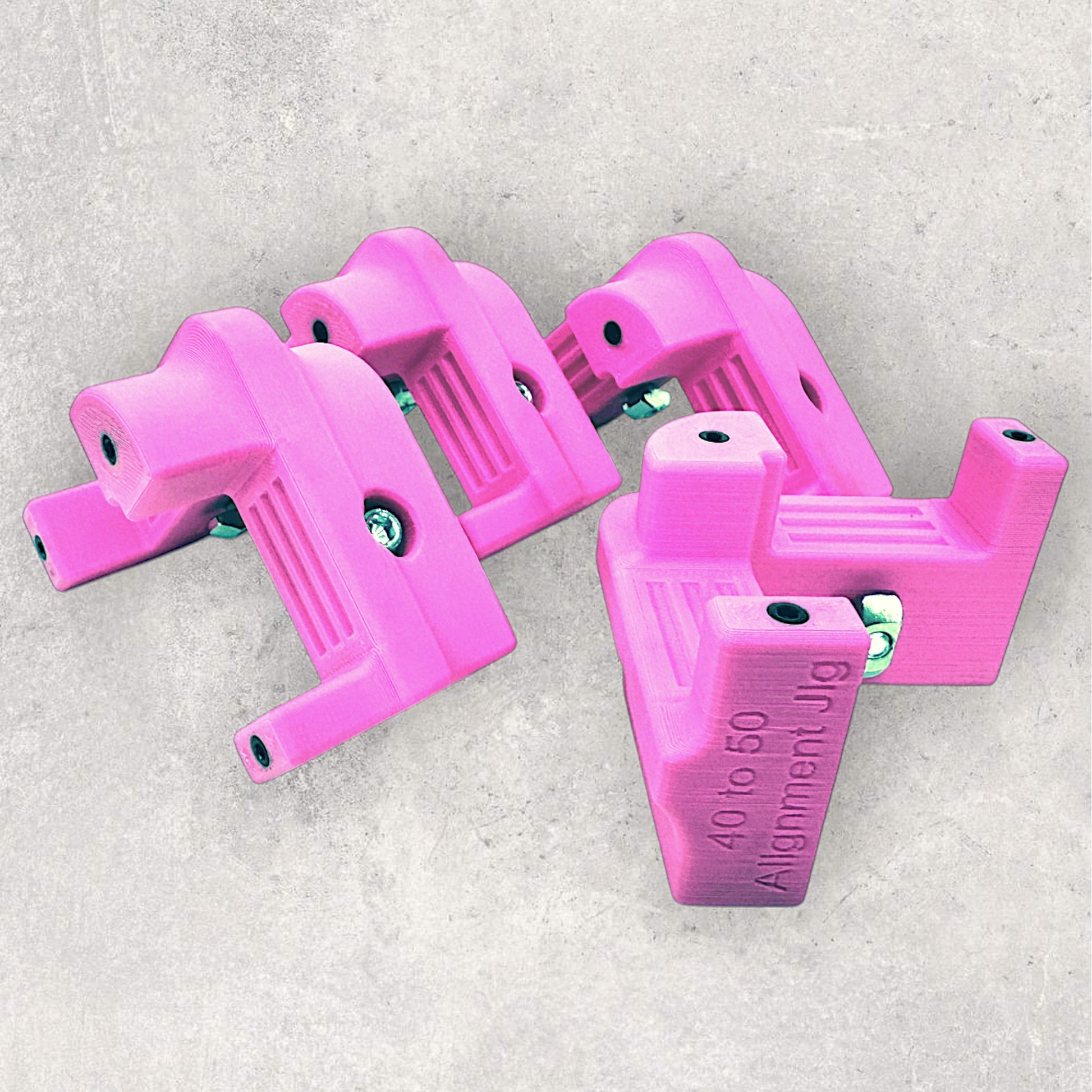

These are high-quality 3D-printed precision 8020 aluminum extrusion alignment jigs designed and produced by 'The Aluminum Carpenter' to work with all 40 to 50 series aluminum extrusion.

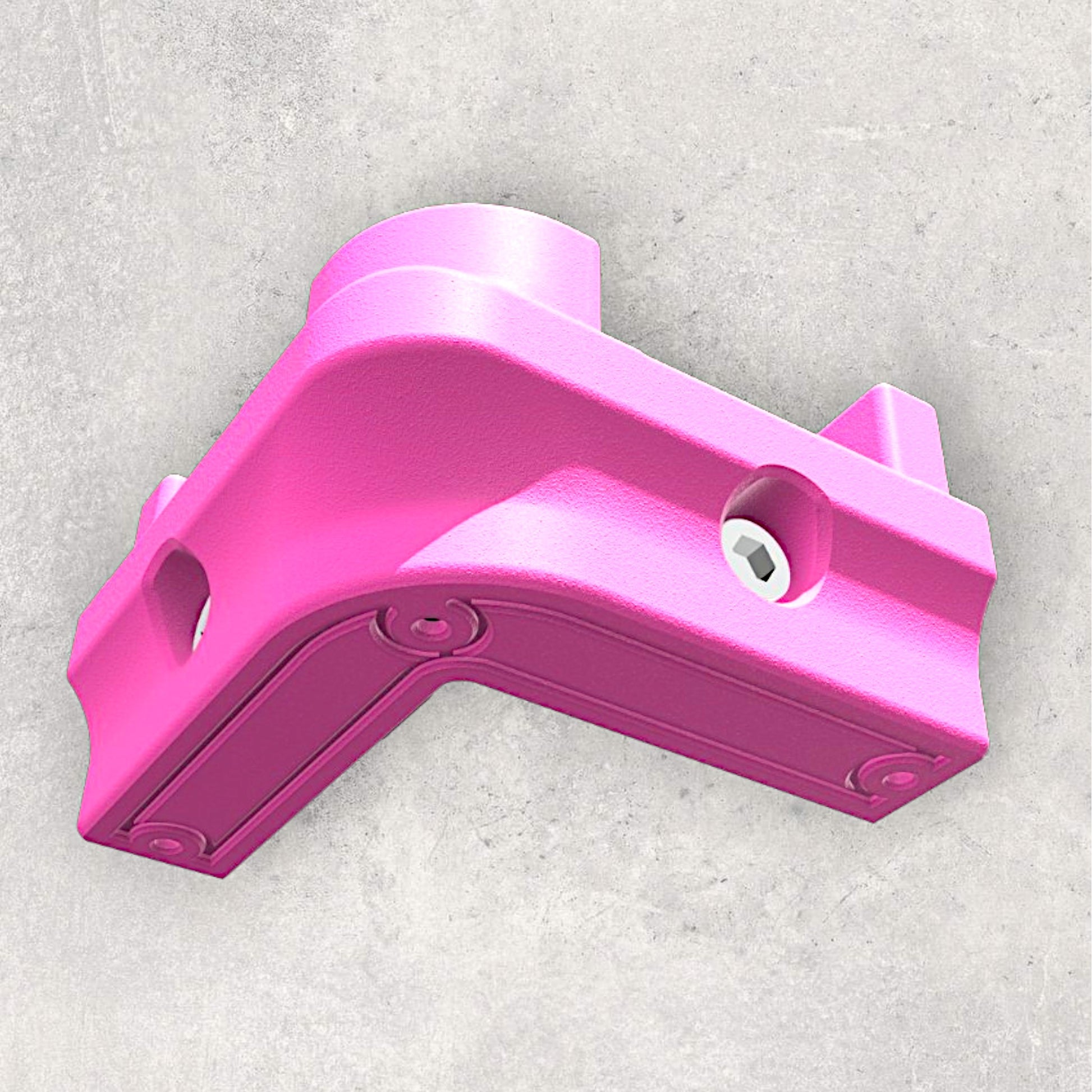

These jigs are meticulously designed and 3D modeled, with all fitting and hole tolerances keenly monitored. They are slowly and carefully printed one layer at a time, with each jig print taking over five hours, depending on the size of the jig.
With this precision alignment jig, you can consistently achieve perfectly aligned joints without the need for additional tools.
All our Precision Jigs come with Free International Shipping.
Orders will be printed, assembled, and packed directly from our Singapore office. Global shipping typically takes 8 to 18 business days, as per the estimates provided by our local postal service.
