Aluminum Extrusion Precision Alignment Jig

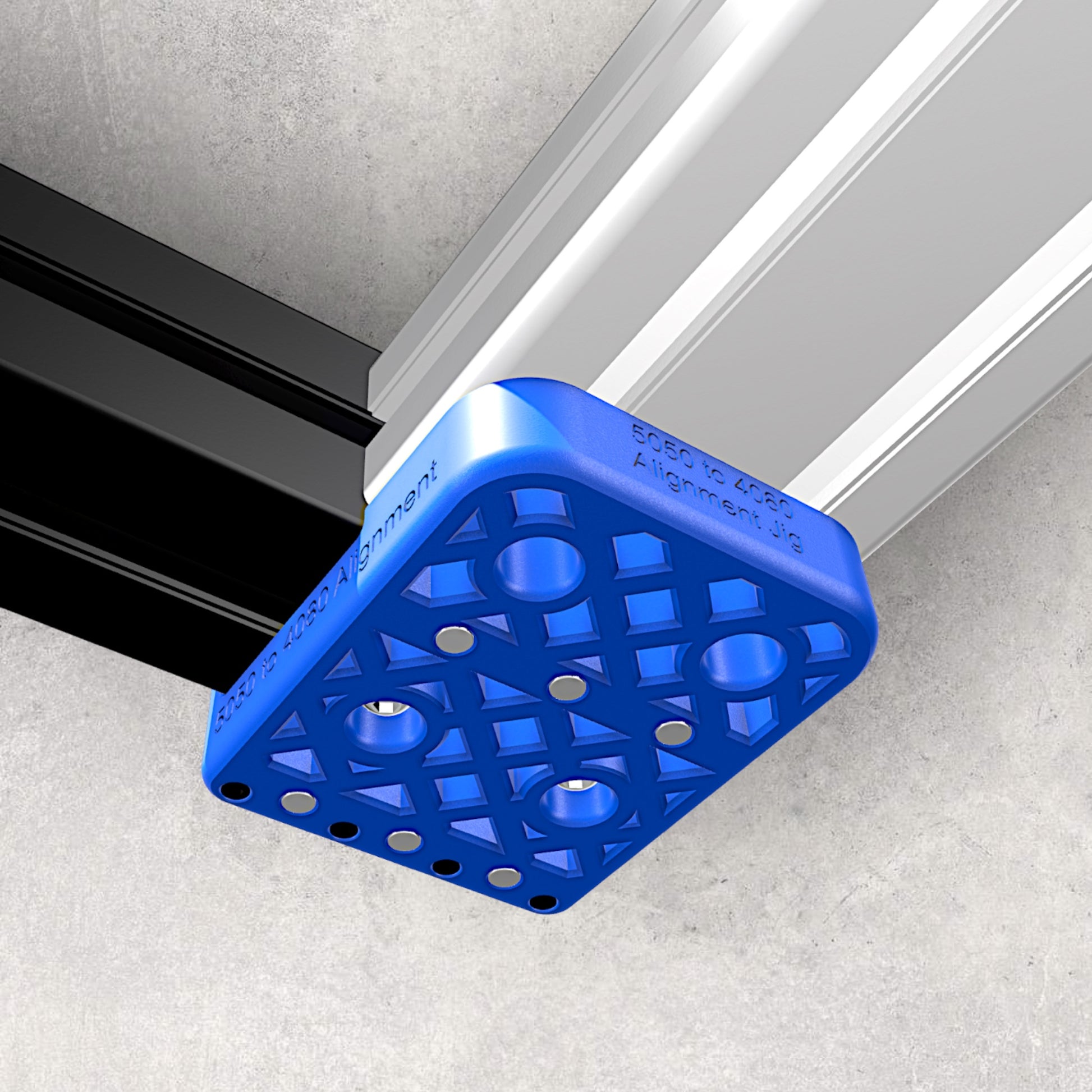

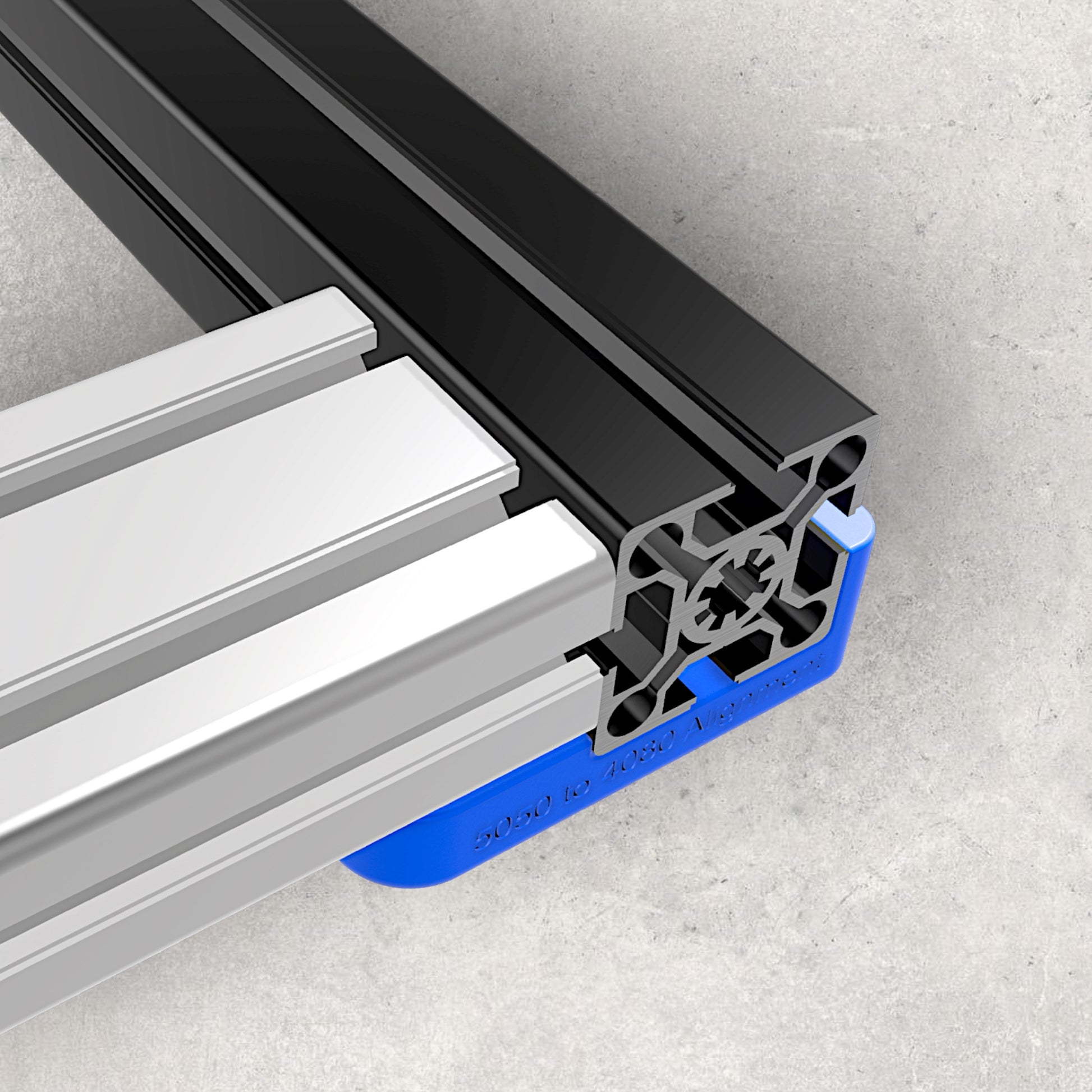

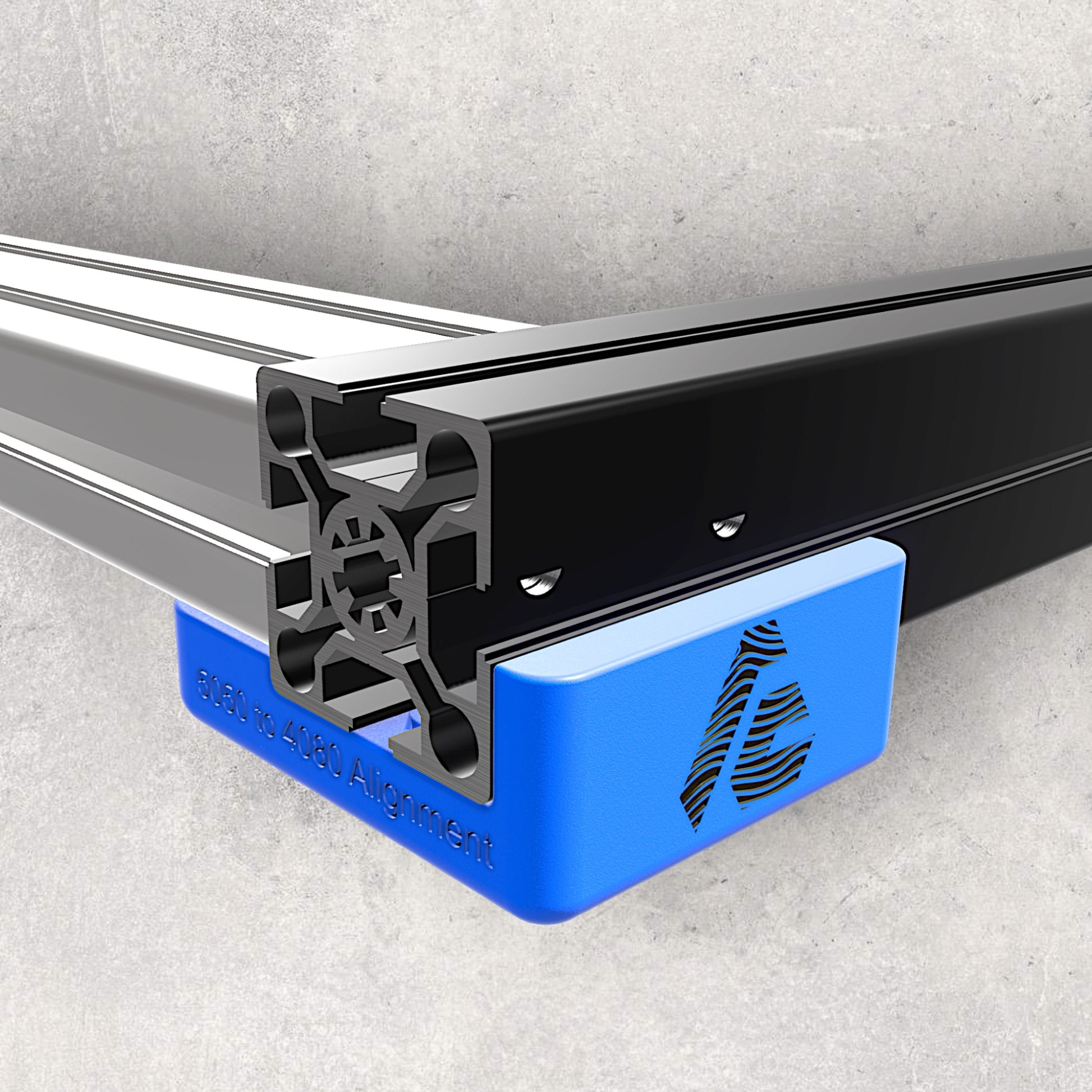

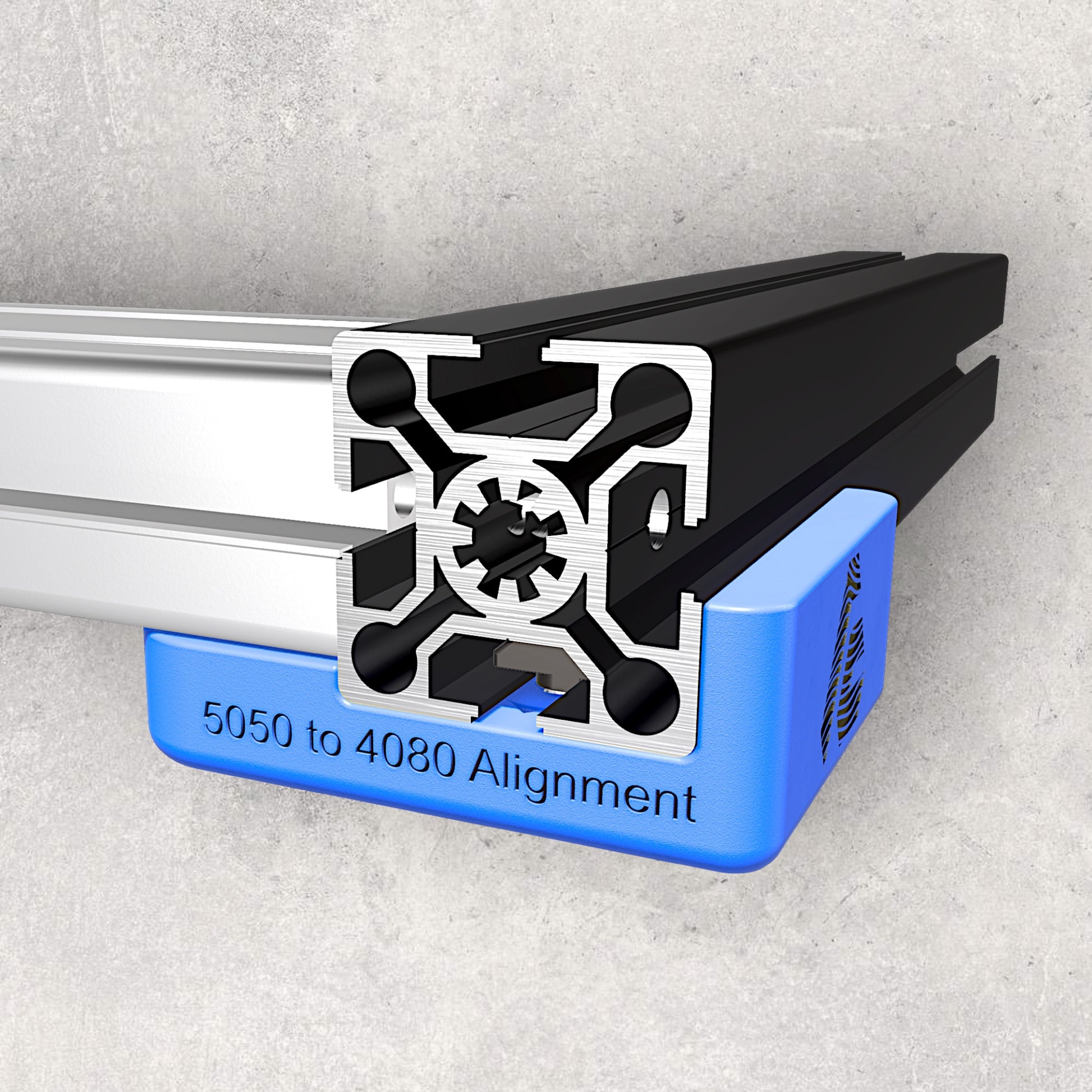

This Alignment Jig allows you to precisely position a 4080 aluminum extrusion perfectly centered and perpendicular to a 5050 aluminum extrusion without the need for marking or unnecessary guesswork.

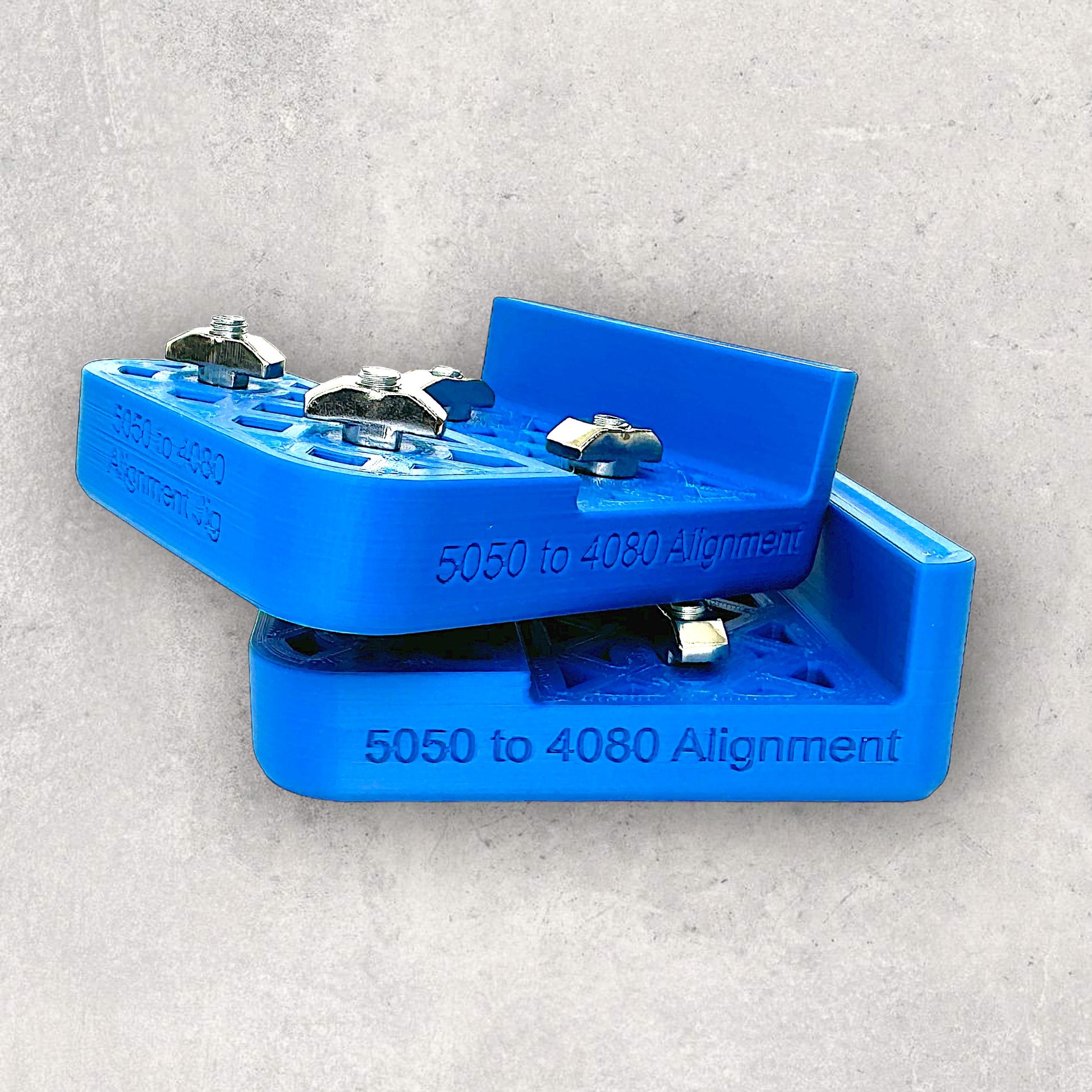

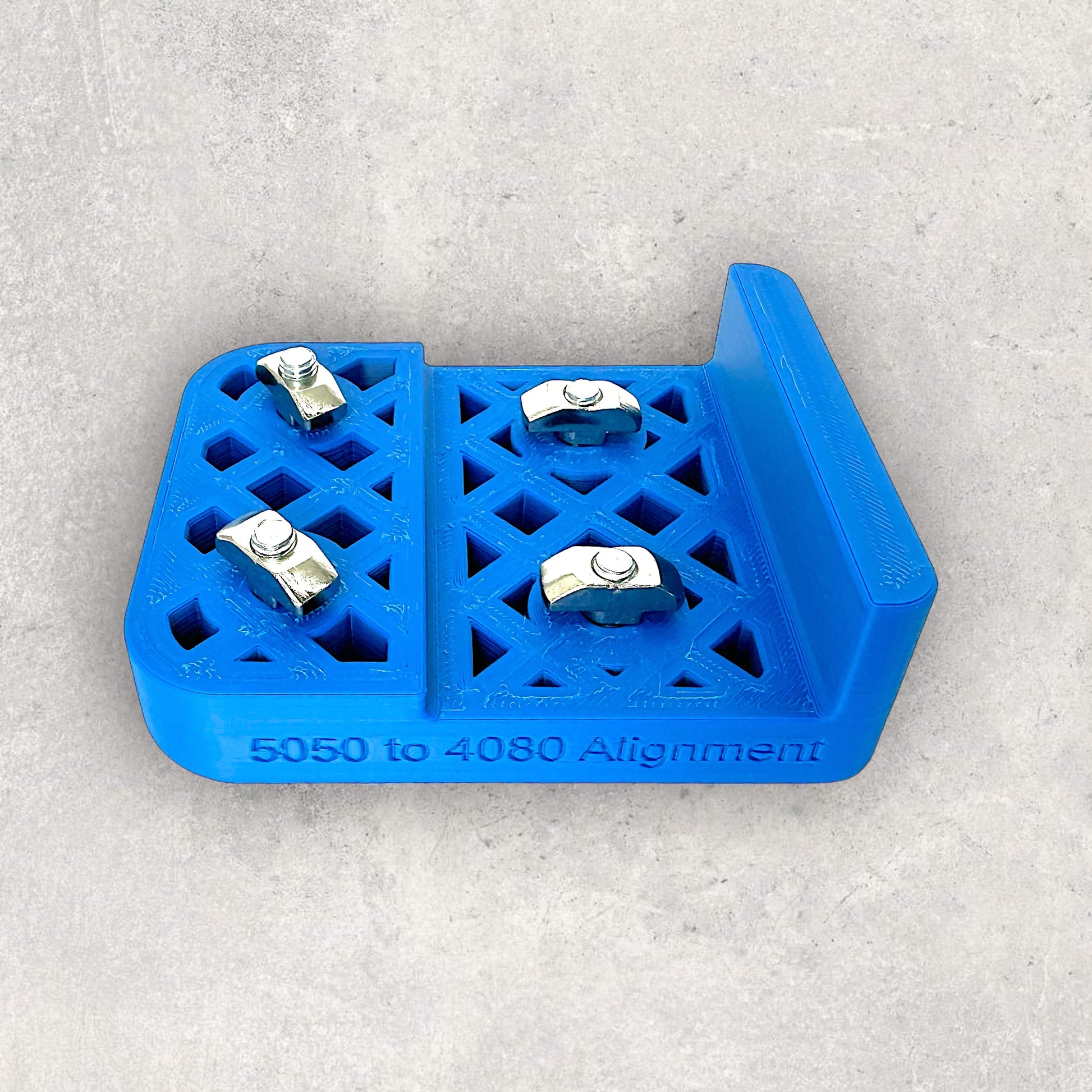

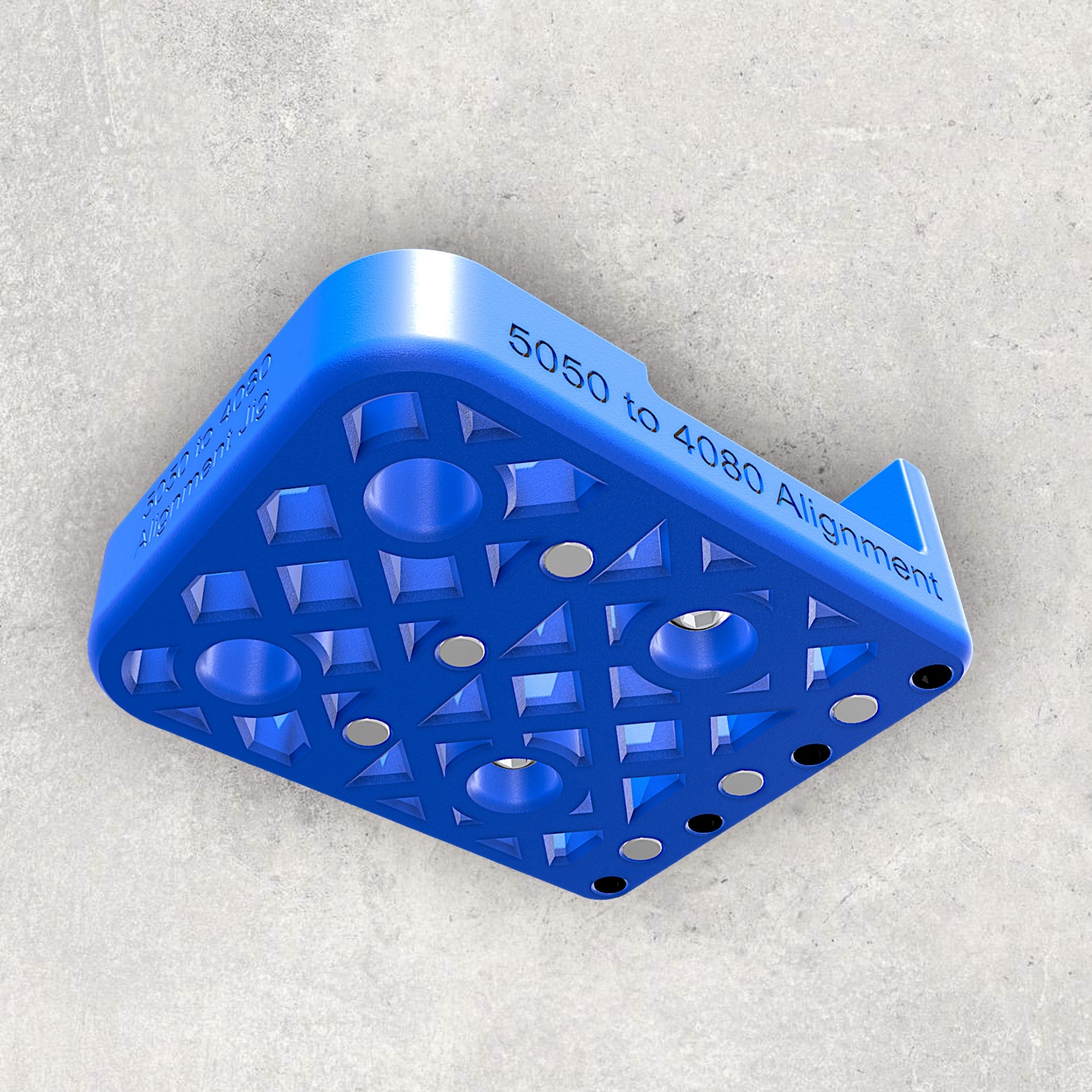

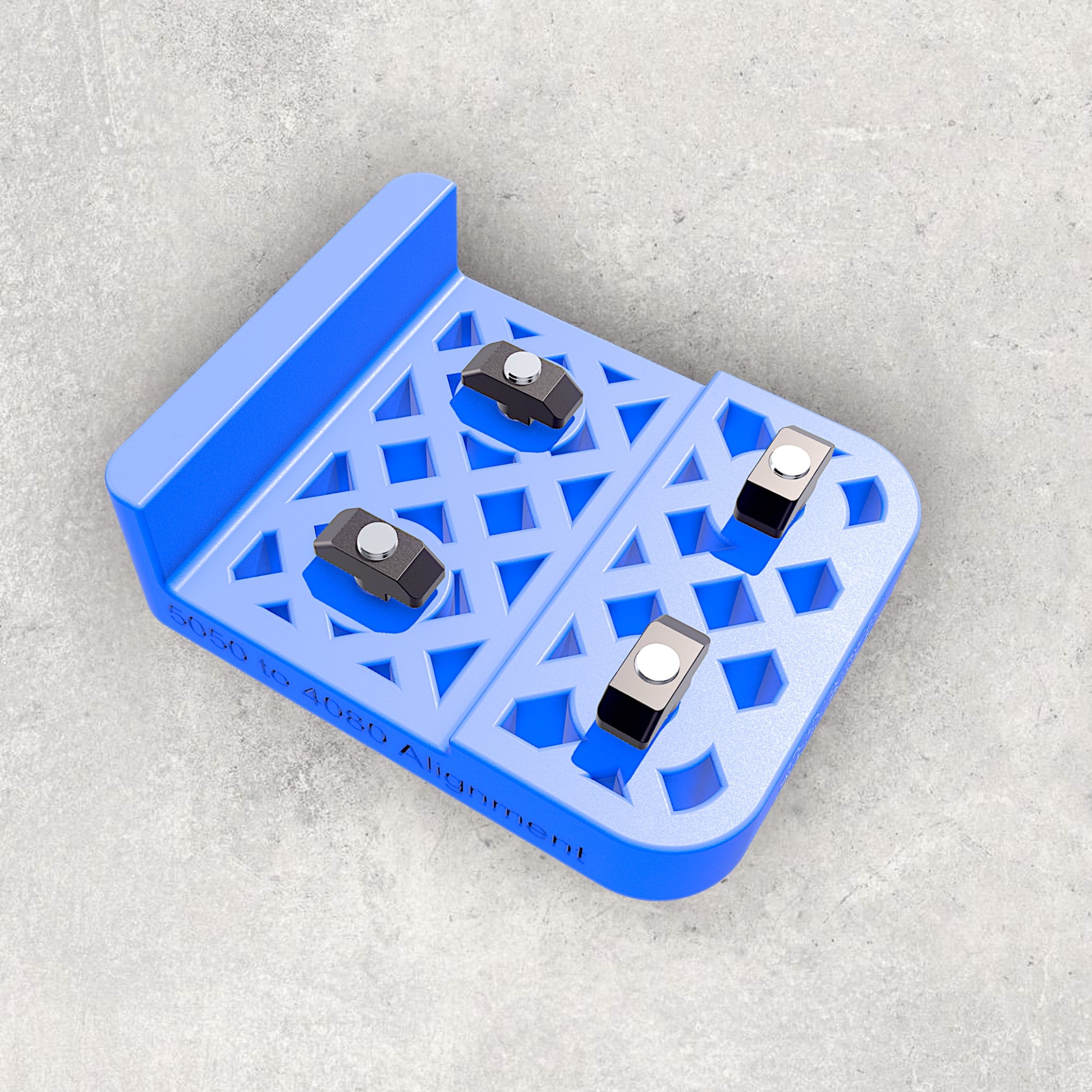

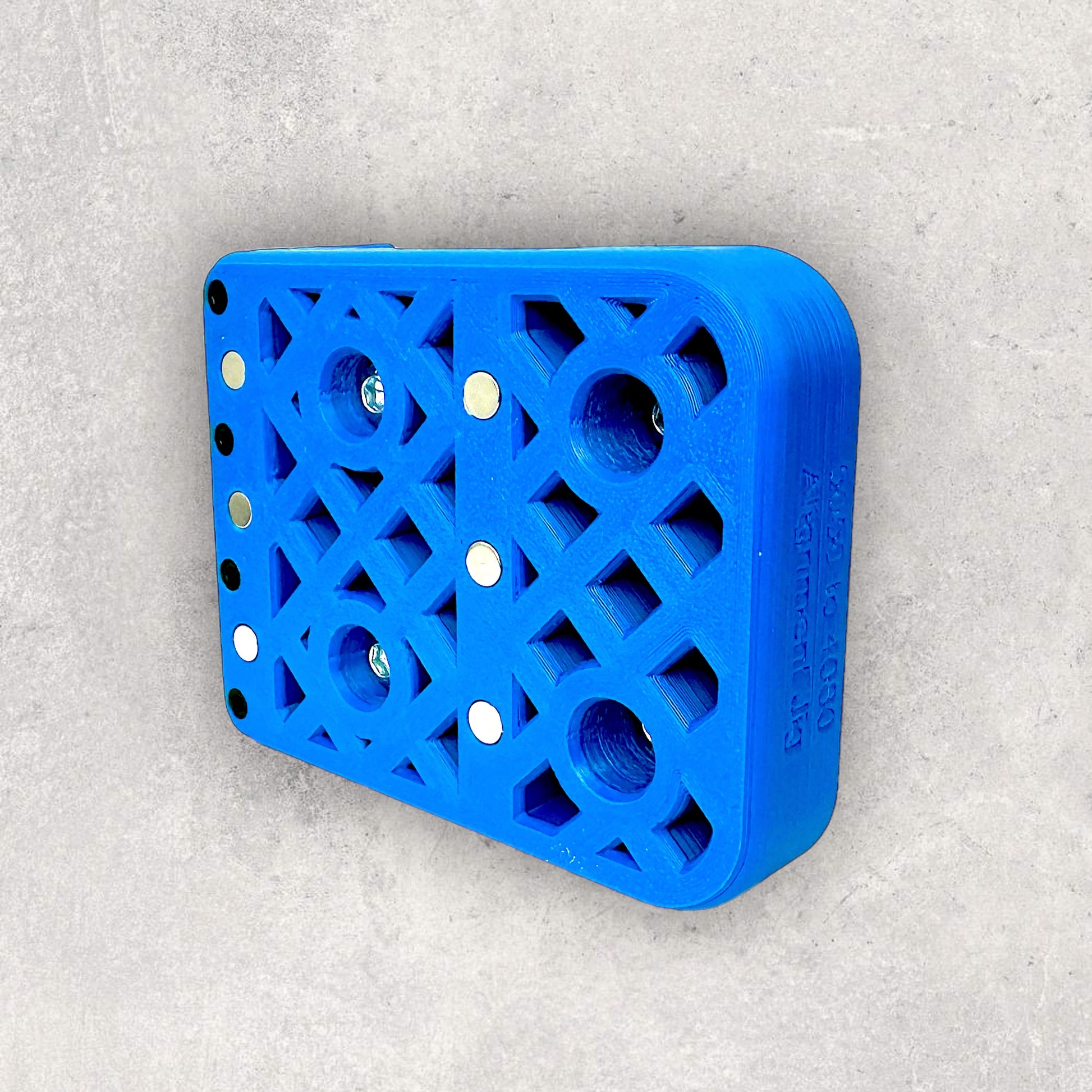

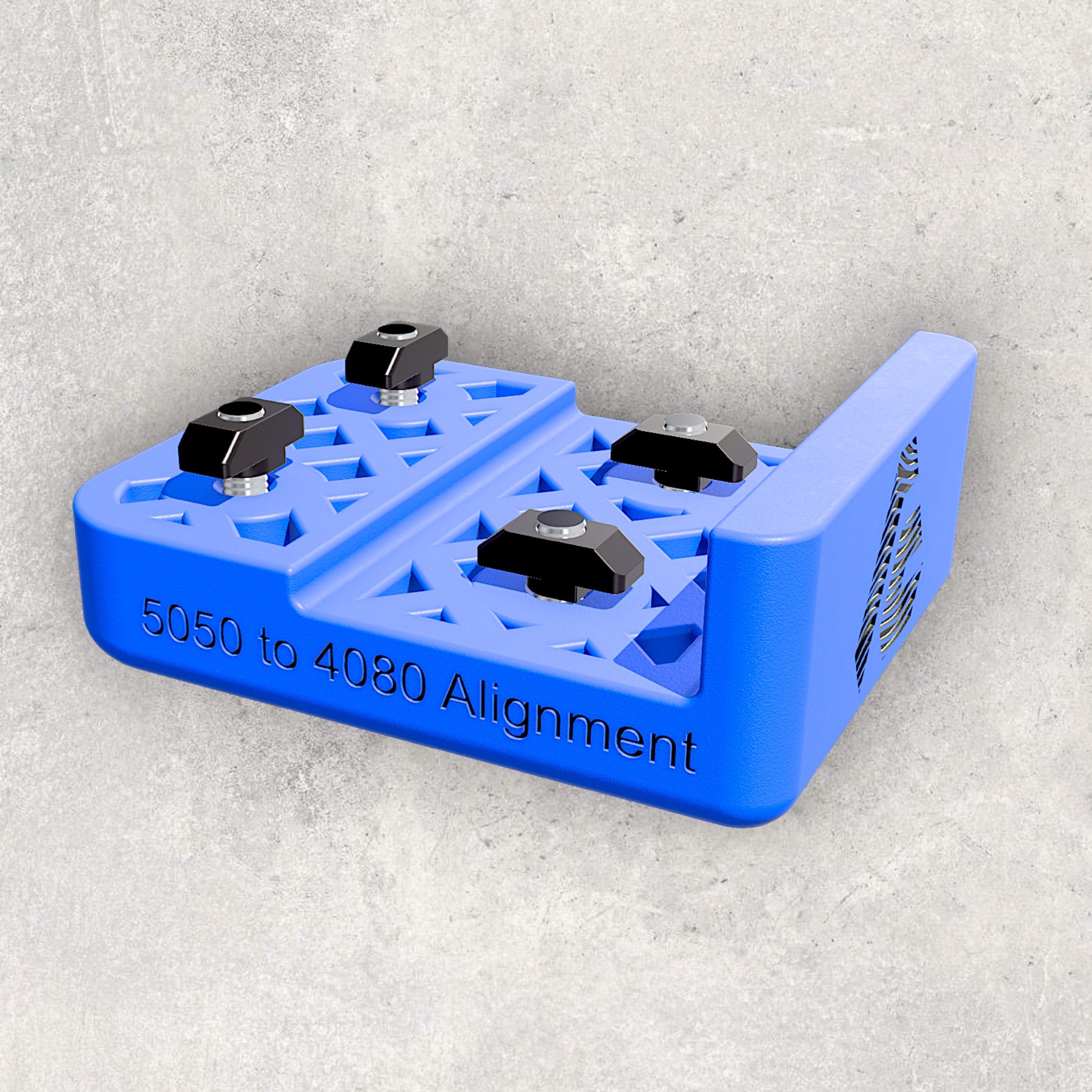

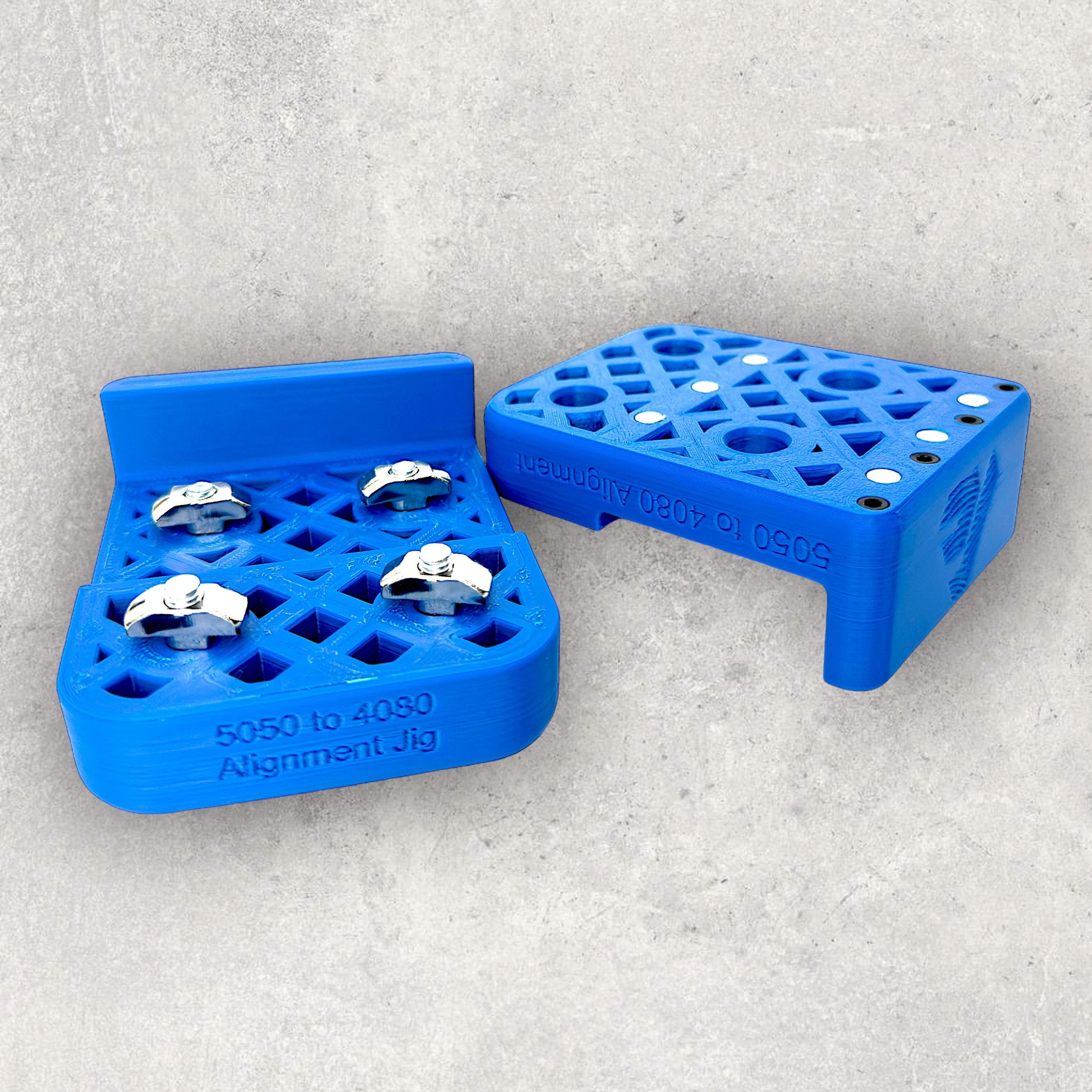

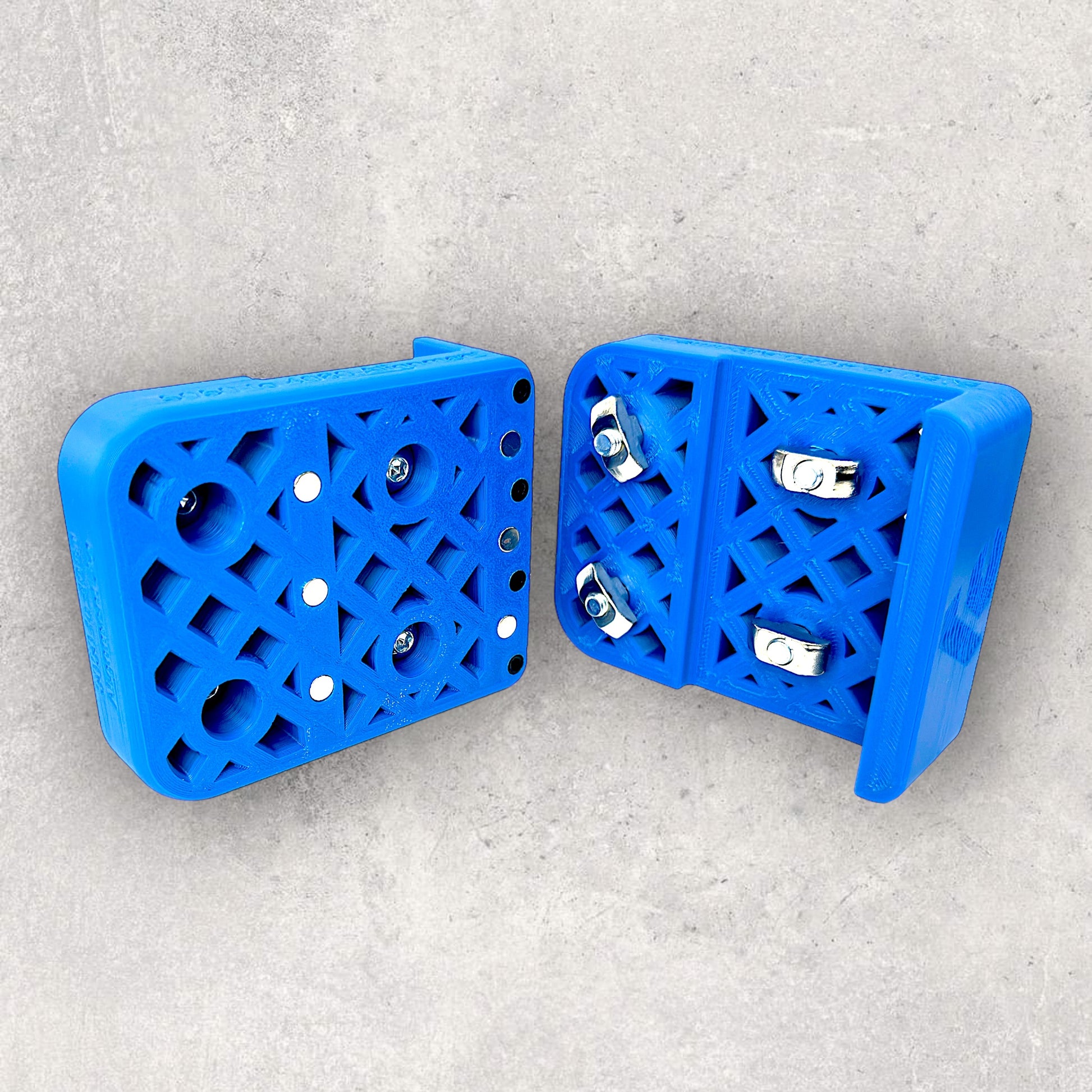

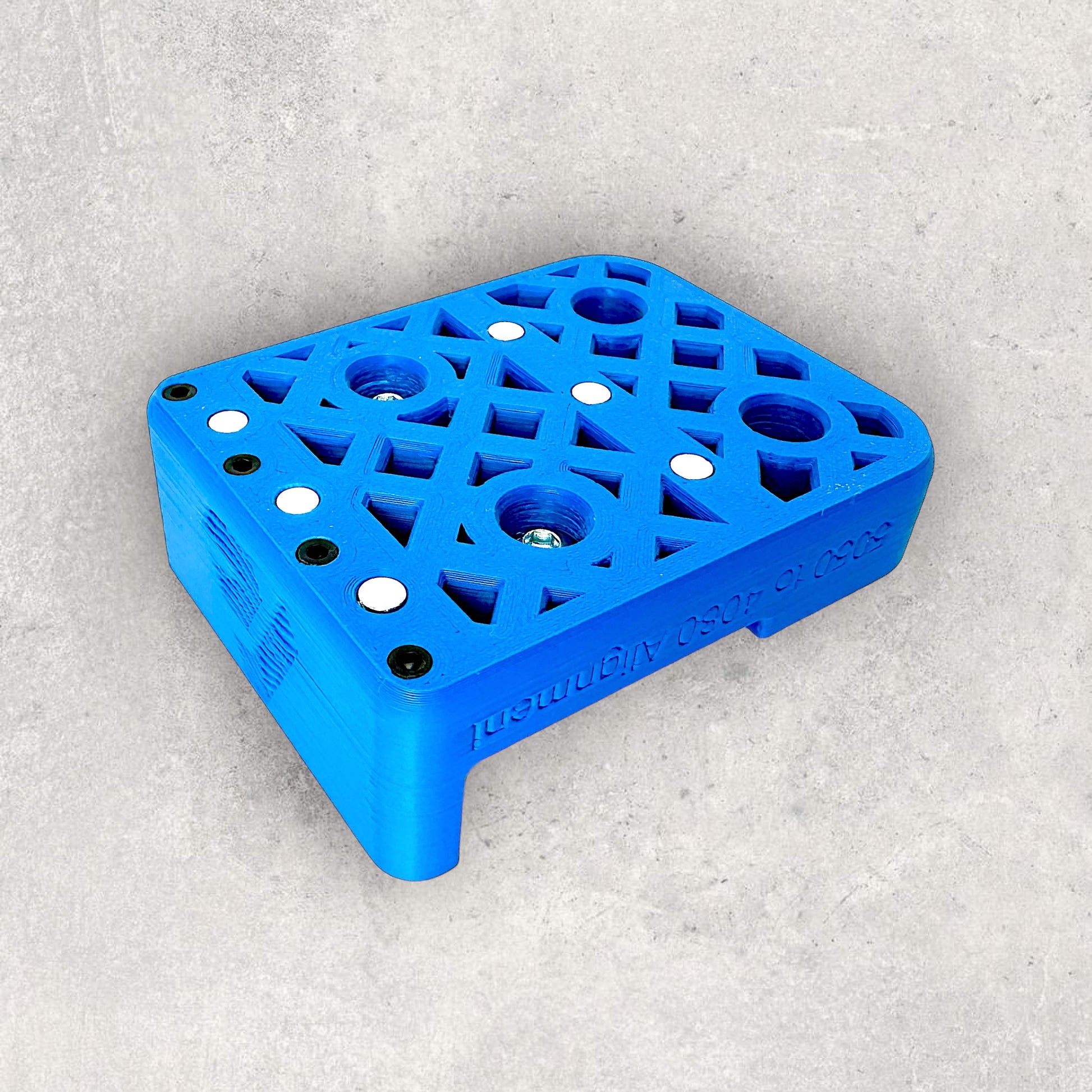

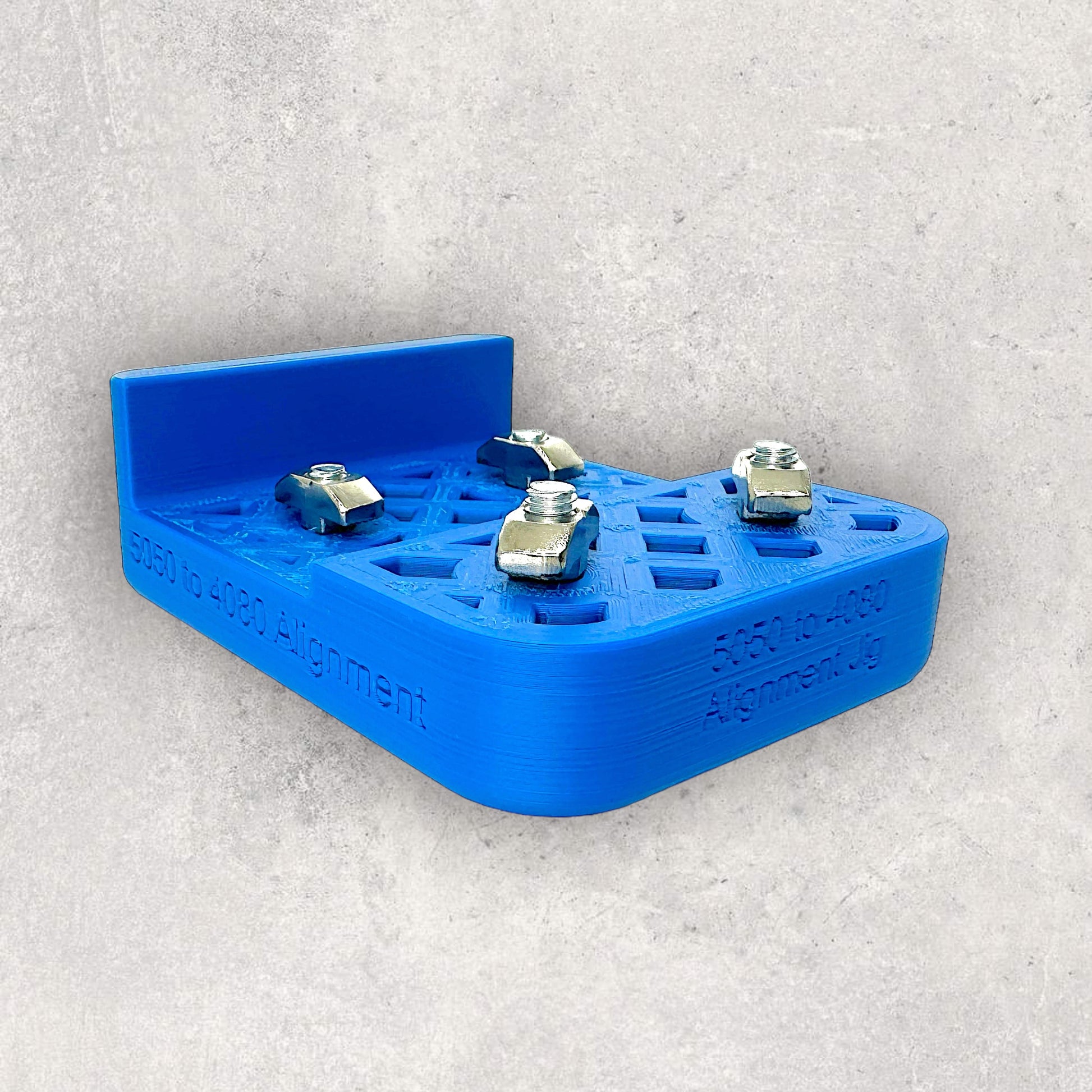

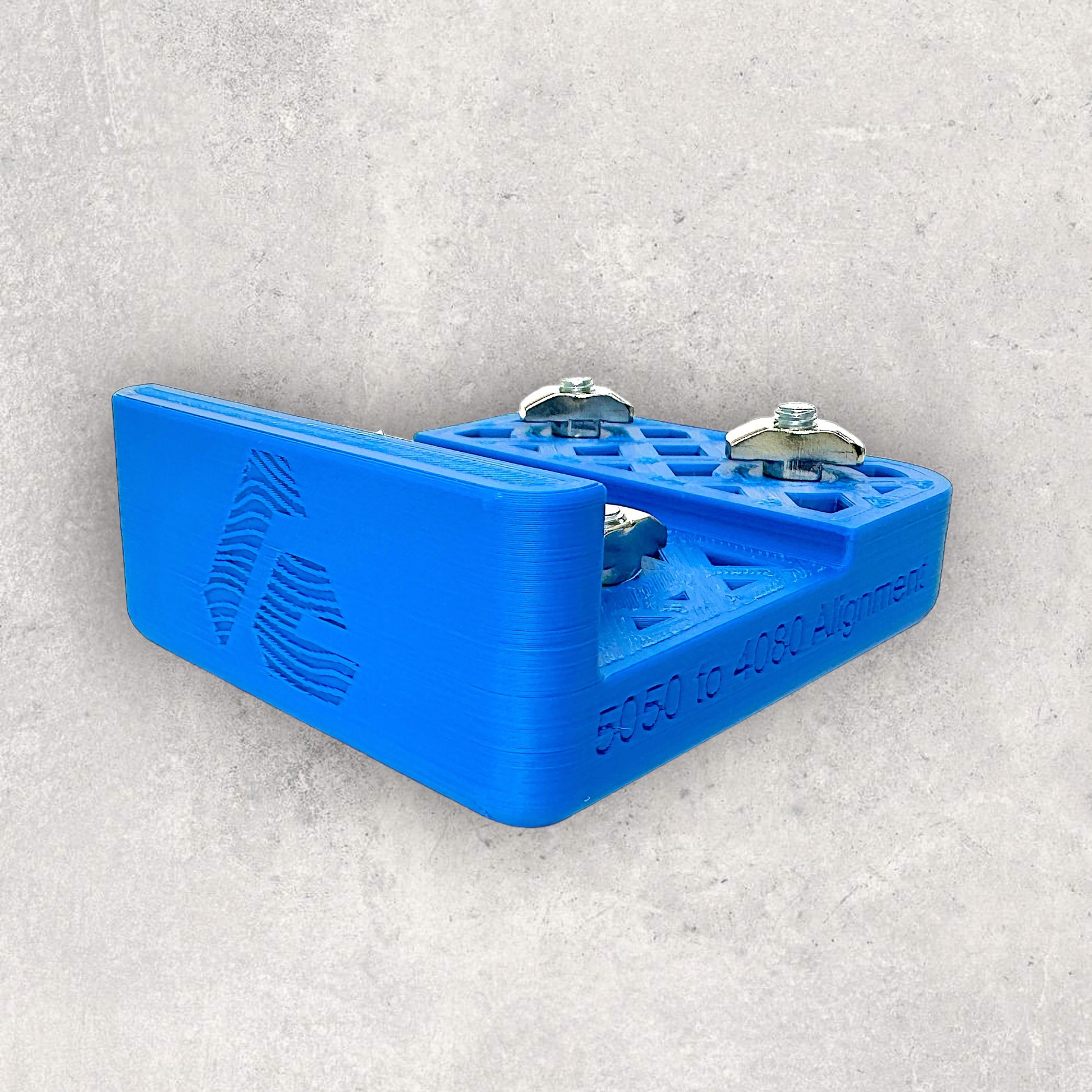

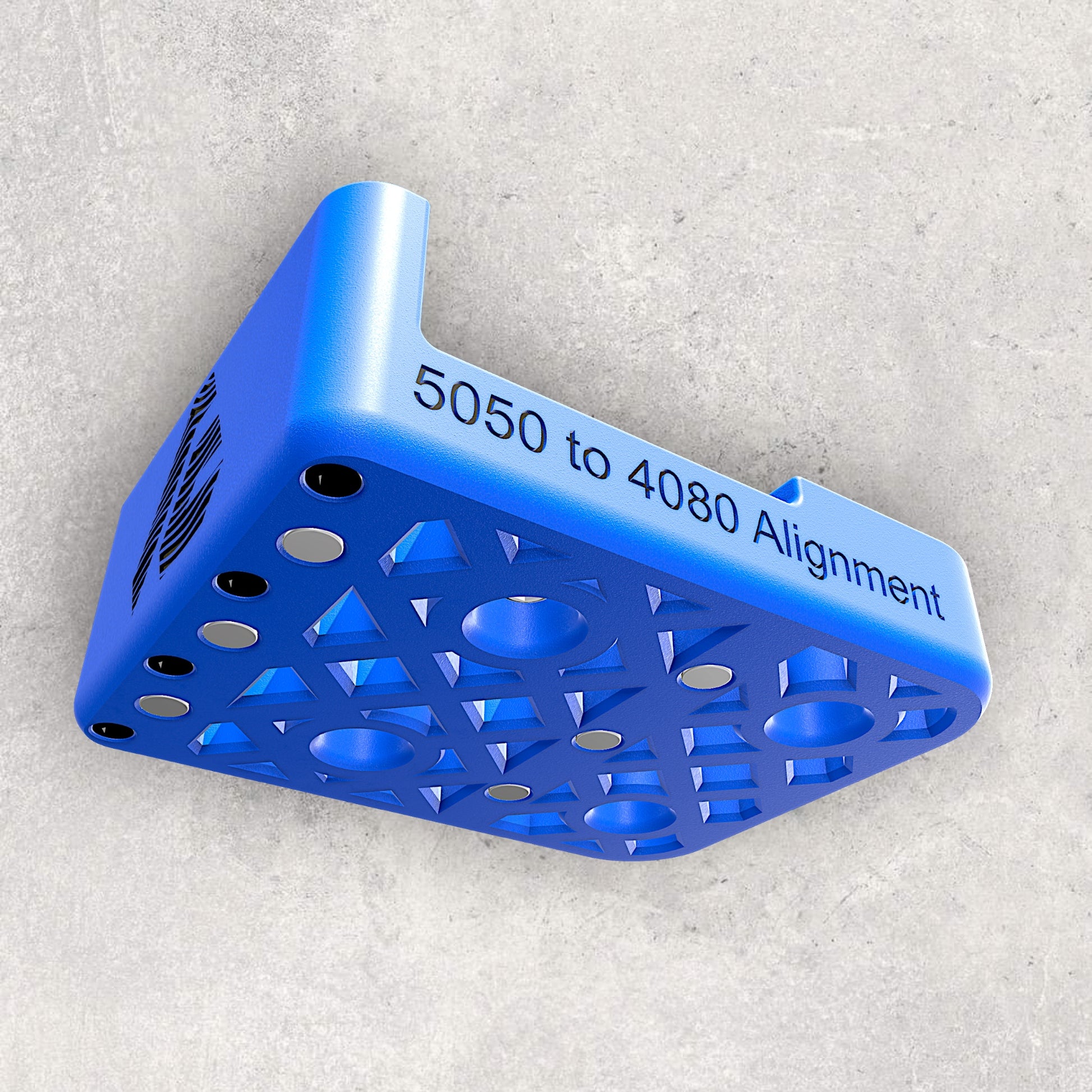

These are high-quality 3D-printed precision 8020 aluminum extrusion alignment jigs designed and produced by 'The Aluminum Carpenter' to work with 5050 and 4080 Aluminum Extrusions. Additionally, all necessary bolts and nuts are included, allowing for immediate use straight out of the box. Equipped with magnets, this attachment easily adheres to any magnetic surface, providing an organized storage solution.
These jigs are meticulously designed and 3D modeled, with all fitting and hole tolerances keenly monitored. They are slowly and carefully printed one layer at a time, with each jig print taking over five hours, depending on the size of the jig.
With this precision alignment jig, you can quickly, consistently, and repeatedly achieve accurate alignment tasks without the need for additional tools, saving you tremendous time and gaining immediate accuracy in your work.
All our Precision Jigs come with Free International Shipping.
Orders will be printed, assembled, and packed directly from our Singapore office. Global shipping typically takes 8 to 18 business days, as per the estimates provided by our local postal service.
