Studio Rack (Download)

This is a Digital Download.

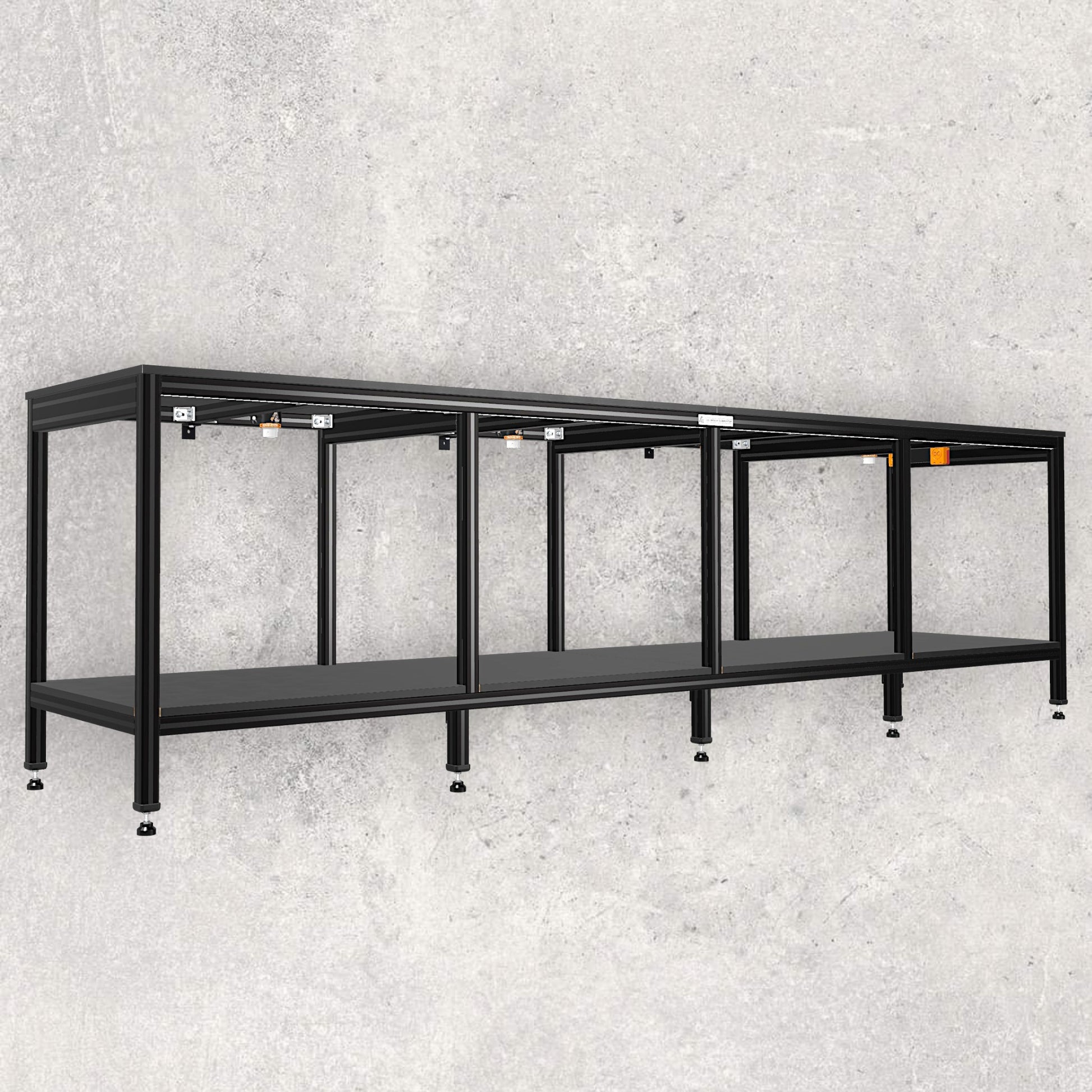

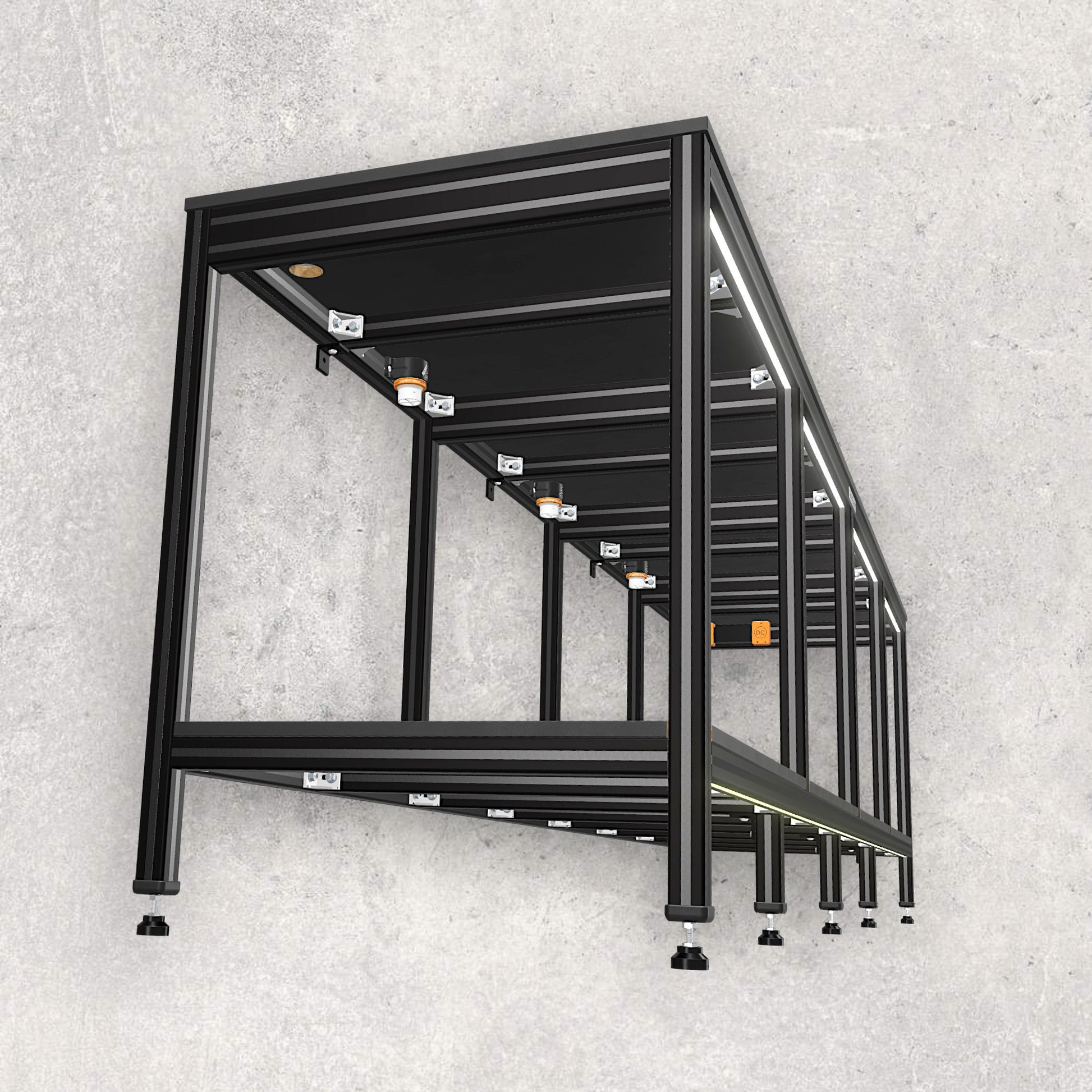

This is the Studio Rack — a 3.3 metre aluminum extrusion workbench built to become the permanent home of an entire 3D print farm. It carries more than 900 individual components, weighs at least 80kg before a single machine is placed on it, and was designed from the first line to hold serious weight without ever flinching.

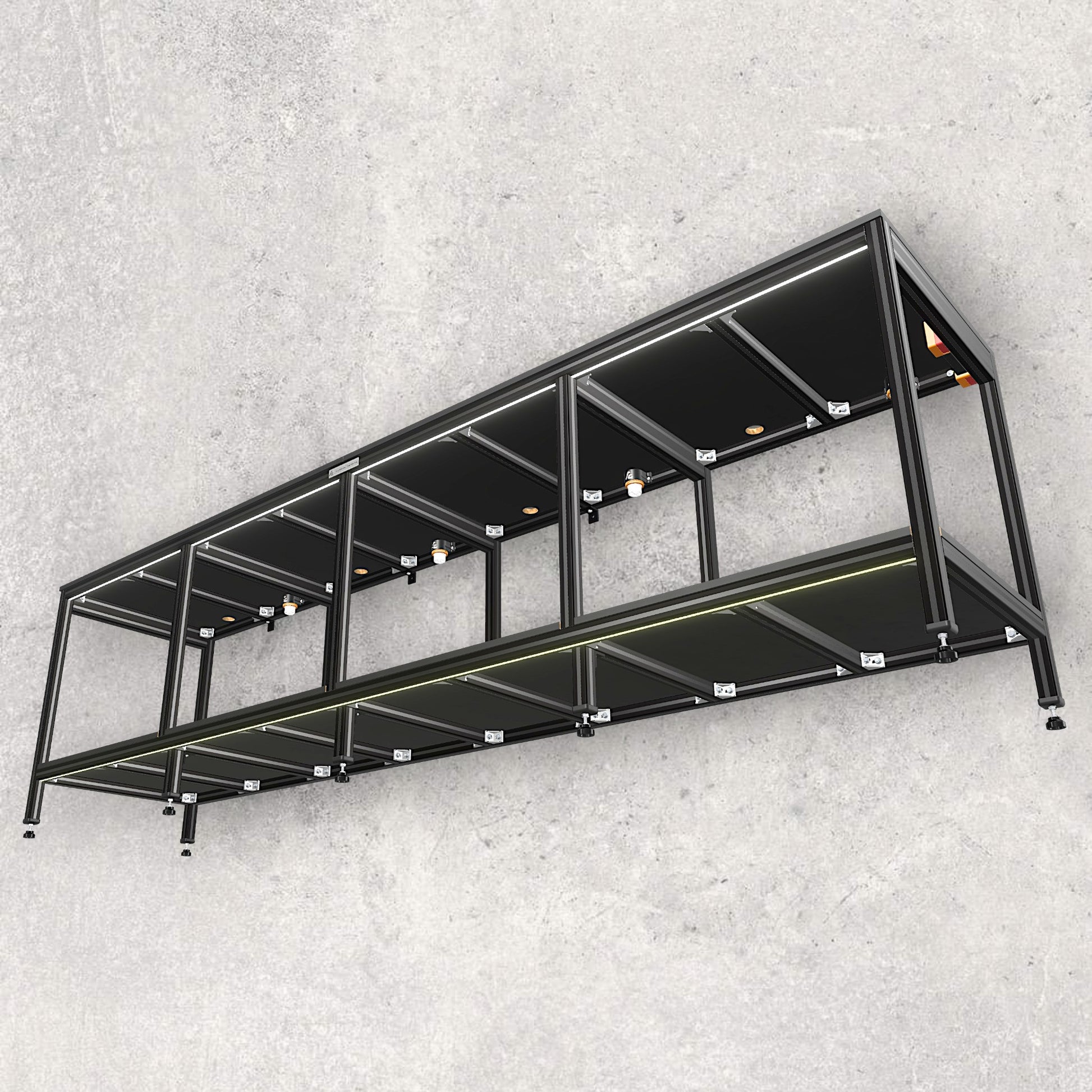

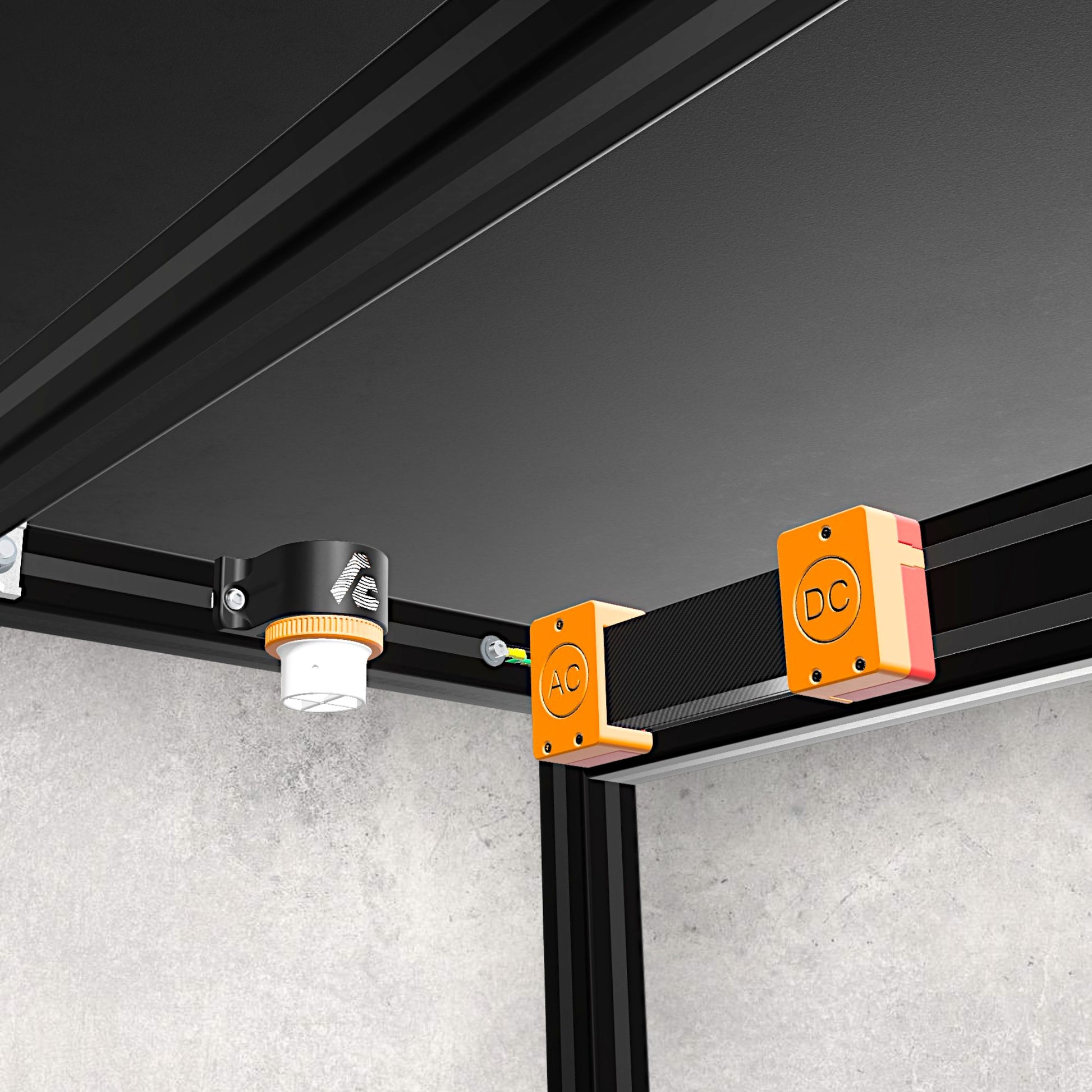

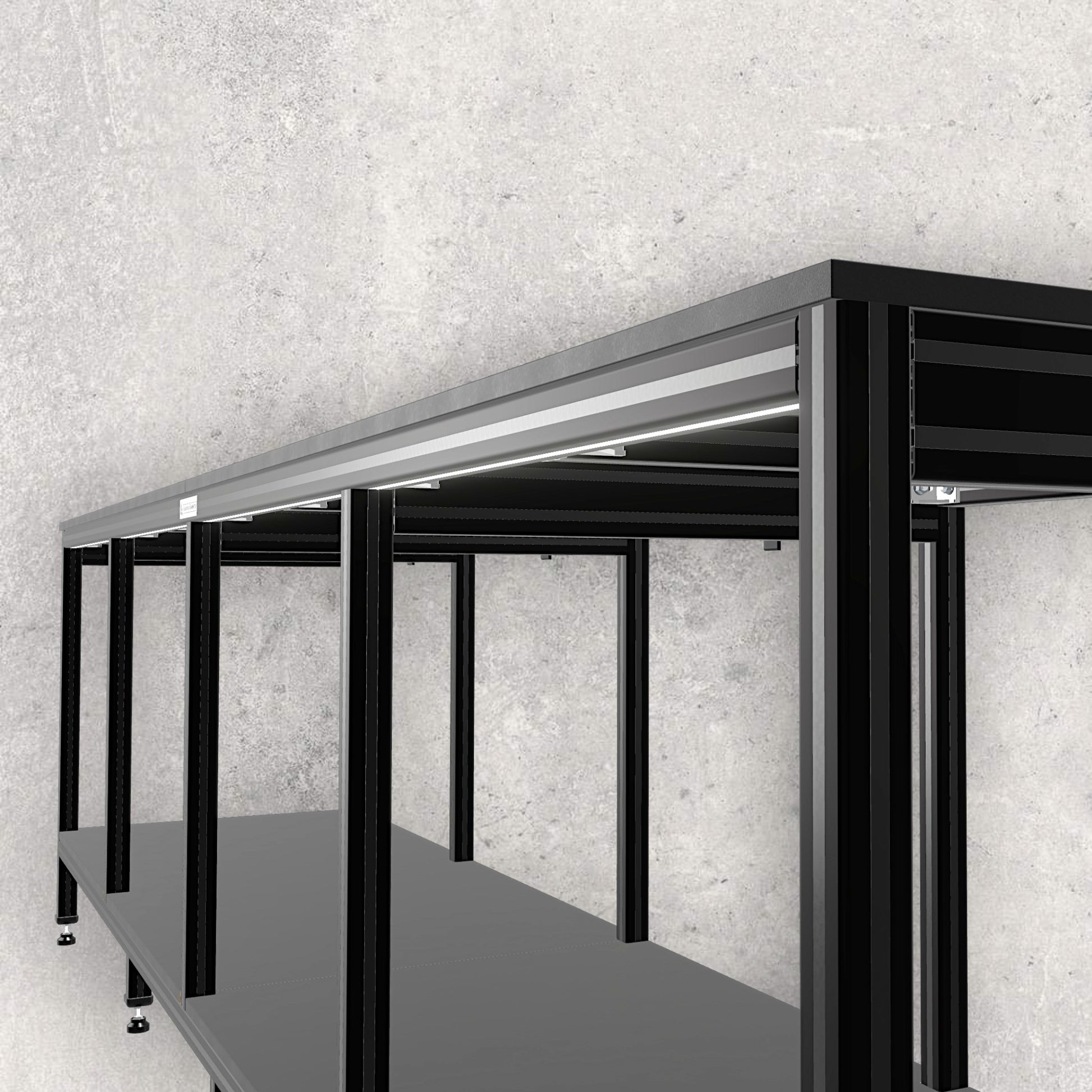

Beneath the surface runs a fully concealed electrical network. Wiring is threaded through grommet-lined holes drilled inside the extrusion itself, feeding two continuous lines of LED lighting behind translucent slot covers. Mains power terminates at a 12 volt power supply mounted on custom brackets at the rear of the structure, with the entire aluminum frame grounded. Bright 3D printed covers cap both ends of the PSU so live electricity can never be touched by accident.

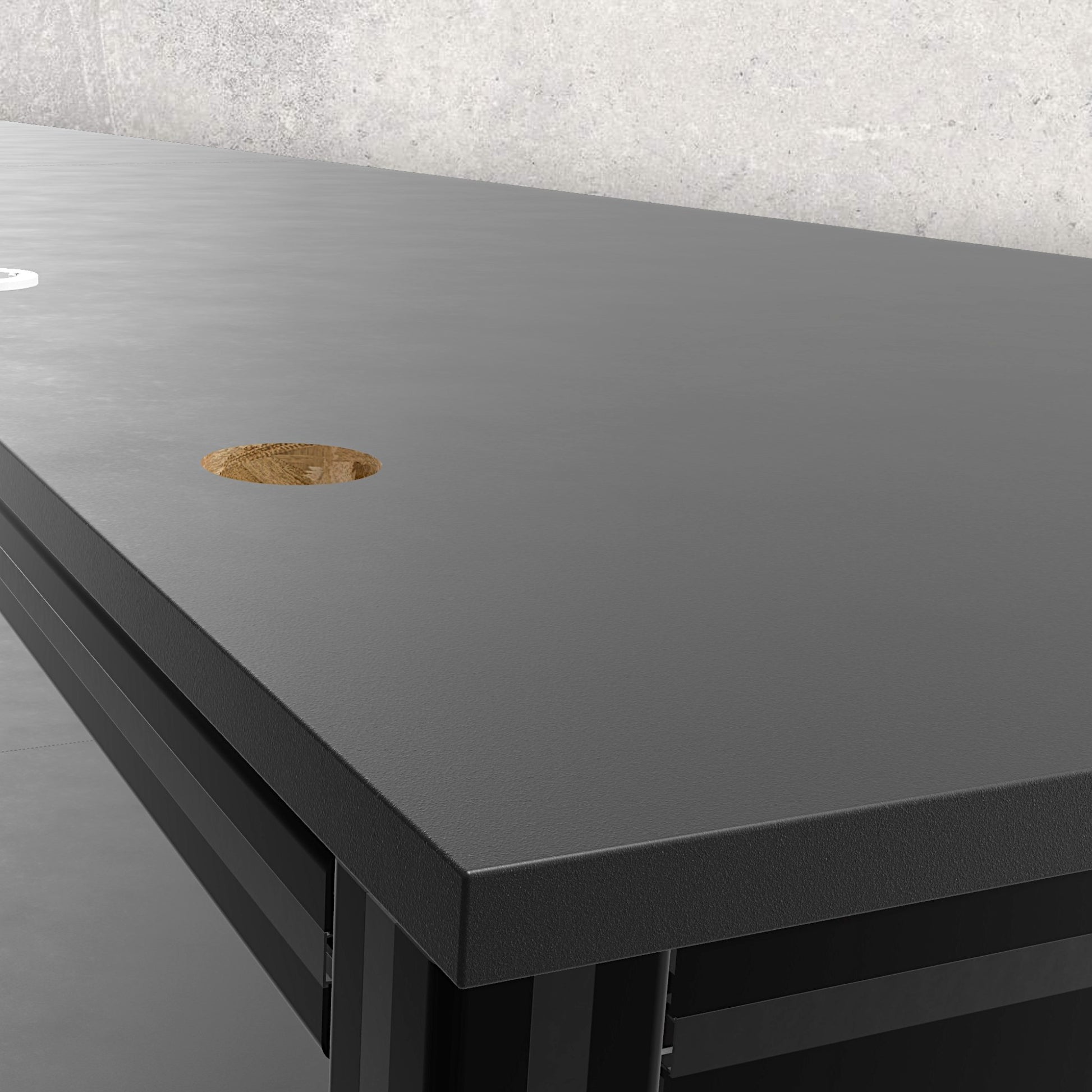

The laminated wood panels sit on top of the frame for maximum surface strength, each one notched to clear every vertical leg, then fastened from the underside so the tabletop stays completely clean. A modular network of 3D printed exhaust bridges carries air from the chambers of the printers below, up and out through the window — an ecosystem that can be reconfigured whenever the machines change.

The finished structure leans against the wall and bolts directly into it, so no amount of loaded weight will ever tip it forward.

Basic Dimensions : 3305*700*960mm (Length*Width*Height)

You will find 935 individual parts meticulously drawn, labeled, and organized within the 3D model. By following this 3d modeled design along with the list(s) provided, you will be able to build one for yourself. Upon purchase, you will be directed to a download link to obtain your digital files.

In this download, you will find all the necessary files to build one for yourself, including the Material List, Product Links, 3D Model (PDFs, STEP & Shapr3D), STLs, and Drilling Diagrams. You may stretch, alter, and amend the design to fit your desired dimensions. With this purchase, you will grasp the concept of building with 8020 aluminum extrusion.

You will need a specific Drilling & Alignment Jigs Set to complement your accurate and precise workflow in completing your assembly.

1. 4040 18 & 38mm Offset Drilling Jig M8
2. 4040 28mm Offset Drilling Jig M8
3. 4040 Freehand Drilling Jig M4
4. 4040 Freehand Drilling Jig M8
5. 4040 20 & 60mm Offset Drilling Jig M8
6. 4040 20mm Offset Drilling Jig M8
7. 4040 Twin Freehand Drilling Jig M8
8. 4080 28mm Offset Drilling Jig M8
9. 4080 18 & 38mm Offset Drilling Jig M8
10. 4040 Perpendicular Alignment Jig 90mm
